全景CCTV摄像机配件，3.5英寸摄像机测试仪在线第六代
特征：
3.5英寸全景TFT-LCD，480（RGB）x320
2.液晶屏亮度/对比度/颜色饱和度可调
3. LED灯泡，夜间操作方便
4. IP地址扫描，快速搜索所连接的IP摄像机和其他网络设备的IP地址
链接监视器检查设置IP地址是否被占用
6. TDR断点和短路测量（BNC电缆，网线等）
7.支持RS232 / RS485 / RS422，速率600〜115200bps可调
功能：
云台控制器
显示输入视频图像。平移/倾斜P / T单元并放大/缩小图像。设置协议，通信端口，波特率，PTZ ID，云台速度等控制参数;设置并调用预置位置。
2.增强型彩条发生器
视频生成，PAL​​ / NTSC多系统彩条视频发生器（八系可切换，发送/接收八系统彩色图像）。通过接收视频颜色条来测试视频通道是否正常传输。并判断颜色是否不同，由于传输损耗或干扰，适用于视频传输的现场测试，如光学视频发射机和接收机，视频线等。
新功能彩条可以测试图像是否偏移。
彩条（红，绿，蓝，白，黑）测试显示器是否有白点或黑点等
3. DC12V 1A输出功率
用测试仪的DC12V（1A）电源输出为相机供电。当电源不可用时，它有助于演示和测试。
视频快照
拍摄视频图像并将当前视频帧保存为JPEG文件
5.录像记录
记录并将当前视频保存在SD卡中
6. TDR断点和短路测量（可选功能参考最后一页）
新功能：TDR电缆测试，准确测量BNC电缆，网线，控制电缆断点和短路位置。提高工作效率。
规范：

应用：
1.了解安全维护和网络工程中电缆的另一端
2.闭路电视系统的安装和维护
穹顶相机和所有在一个相机测试
中央电视台传输频道测试
云台控制器

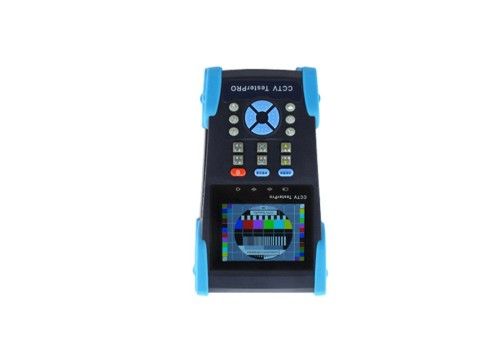

Full-View CCTV Camera Accessories , 3.5 Inch Camera Tester Online 6th Generation
Features:
1. 3.5 inch full-view TFT-LCD, 480(RGB)x320
2. LCD screen brightness/contrast/color Saturation adjustable
3. LED Lamp, easy to operate at night
4. IP address scan, quickly search the IP address for the connected IP camera and other network devices
5. Link monitor; check the setting IP address whether occupied
6. TDR break point and short - circuit measurement( BNC cable, network cable etc)
7. Support RS232/RS485/RS422, rate 600 ~ 115200bps adjustable
Function:
1. PTZ controller
Display the input video images. Pan/tilt the P/T unit and zoom in/ out the image. Setup the controlling parameters like protocol, communication port, baud rate, PTZ ID, pan/tilt speed; set and call preset position.
2. Enhanced Color bar generator
Video Generating, the PAL/NTSC multi-system color bar video generator (Eight-system switchable, transmit/receive eight-system colorful imagines). By receiving the video color bar to test the video channel whether transmit normally. And judge whether the color is different, because of the transmission loss or interference, it suitable for Video transmission of the field tests, such as optical video transmitter and receiver, video cable etc.
The new function color bar can test the image whether shift.
The color bar (red, green, blue, white, black) test the monitor whether have white or black dot etc.
3. DC12V 1A output power
Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available.
4. Video snapshot
Capture the video image and save the current video frames as JPEG file
5. Video record
Record and save the current video in the SD card
6. TDR Break-point and short-circuit measurement (optional function refer to the last page)
New function: TDR cable testing, accurately measure BNC cable, network cable, control cable break-point and short-circuits location. It improves working efficiency.
Specification:

Applications:
1. Find out the other end of the cable in security maintenance and network engineering
2. CCTV system installation and maintenance
3. Dome camera and All in one camera testing
4. The CCTV transmitting channel testing
5. PTZ controller
