全景模拟摄像机CCTV测试监视器IP地址扫描带LED灯
描述：
新型闭路电视测试仪是为网络摄像机，模拟摄像机和网络设备的现场安装和维护开发的，具有视频显示，云台控制，DC12v输出电源，音频测试，彩条发生器，RS 485数据搜索和电缆测试，这与以前的型号相同。新开发的功能包括POE电源测试，PING测试，可视故障定位器，IP地址扫描，视频快照，视频记录，图像放大，端口闪烁，LED灯等。新的测试仪还内置了TDR电缆测试，专为BNC电缆测试设计的安全监控系统。该功能可以准确测量BNC电缆和网线的断点和短路位置。设计具有易于操作和便携性的新测试仪使cctv技术人员或安装人员能够轻松安装和维护闭路电视系统，通过减少现场时间来提高工作效率。
特征：
1. IP地址扫描，快速搜索所连接的IP摄像机和其他网络设备的IP地址
2.电缆扫描，发送具体信号，方便查找连接的电缆
3.可移动Micro SD
4. LED灯泡，夜间操作方便
5.视觉故障定位器，是光纤项目建设，光纤网络维护，光学元件制造和研究不可缺少的工具。
6.10倍放大，视频图像可放大查看细节，使用方便
7. PING测试，测试IP摄像机或其他网络设备的以太网端口是否正常工作，IP地址是否正确
8. POE电压测量，测试POE开关对IP摄像机，无线AP设备和其他PD设备的电压
9.端口闪烁，通过发送特殊信号轻松找到连接的POE交换机端口，连接的POE端口将以特殊频率闪烁
10. TDR断点和短路测量（BNC电缆，网线等）
功能：
视频信号测试
新款cctv测试仪，内置高清3.5“LCD-SDI（RGB）x320B）x320
全屏显示屏幕，方便直观地显示摄像机图像质量
支持pal / ntsc
液晶屏亮度/对比度/颜色饱和度可调。适用于现场施工和维护工作
视频信号电平测试
测试视频信号强度衰减，较长的视频信号电缆会导致图像变暗，并降低图像的动态范围，视频信号太强，会造成虚像，降低图像的清晰度。
它还可以实时显示视频级别值，如果超出范围，通知将显示在屏幕中。
3. F1，F2用户自定义的快捷键
用户定义的快捷键旨在提高工程师的效率，随时按压，易于操作。
4. TDR断点和短路测量（可选）
新功能：TDR电缆测试，准确测量BNC电缆，网线，控制电缆断点和短路位置。提高工作效率。
视觉故障定位器
具有650nm波长的视觉故障定位器可以发射红色激光源，测试多模和单模光纤的弯曲和断裂，并连续发光和1HZ，2Hz调制光输出。是光纤项目建设，光纤网络维护，光学元件制造和研究不可缺少的工具。
规范：

应用：
1.了解安全维护和网络工程中电缆的另一端
2.闭路电视系统的安装和维护
-3。圆顶相机和所有在一个相机测试
-4。 CCTV传输通道测试
-PTZ控制器

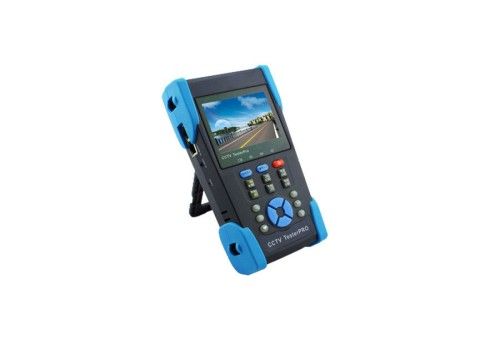

Full-view Analog Camera CCTV Testing Monitor IP Address Scan With LED Lamp
Description:
The new CCTV tester is developed for the On-Site installation and maintenance of IP camera, analog camera and network device, with Video display, PTZ control, DC12v output power, Audio test, Color bar generator, RS 485 Data searching and Cable testing, which are the same to the previous models. The new developed functions include POE power supply testing, PING testing, Visual fault locator, IP address scan, Video snapshot, Video record, Image magnification, Port flicker, LED lamp etc. The new tester also has built in TDR cable testing, which is specialized designed for BNC cable testing in the security monitoring system. This function can accurately measure BNC cable and network cable's break point and short-circuit location. The new tester designed with easy operation and portability makes it simple for a cctv technician or installer to install and maintain CCTV systems, improving work efficiency by reducing time in the field.
Features:
1. IP address scan, quickly search the IP address for the connected IP camera and other network devices NEW
2. Cable scan, send the specific signal, easy to find the connected cable
3. Moveable Micro SD
4. LED Lamp, easy to operate at night
5. Visual fault locator, It is indispensable tool in fiber project constructing, fiber net-work maintaining, optical component manufacture and research.
6. 10x zoom, video image can be magnified to view the details, easy to use
7. PING testing, test IP camera or other network devices' ethernet port whether work normally, and the IP address whether is right
8. POE voltage measurement, test the POE switch's voltage to IP cameras, wireless AP device and other PD devices
9. Port flicker, easy to find the connected POE switch port by sending special signals, the connected POE port will flicker at special frequency
10. TDR break point and short - circuit measurement( BNC cable, network cable etc)
Functions:
1. Video signal testing
The new cctv tester, built-in high definition 3.5'LCD-TFT 480(RGB)x320B)x320
Full-view display screen, easy and directly displays the camera image quality
Support PAL/NTSC
LCD screen brightness/Contrast/Color Saturation adjustable. Suitable for field construction and maintenance work
2. Video signal level test
Test video signal strength attenuation, longer video signal cable will cause the image to be dim, and reduce the image dynamic range, video signal is too strong, it will cause the virtual shadow, and reduce the sharpness of the image.
It also can real-display the video level value, if out of range, notices will be display in the screen.
3. F1,F2 User-defined shortcut keys
The user-defined shortcut key is designed for improving the efficiency for the engineer, anytime press, easy to operate.
4. TDR Break-point and short-circuit measurement (Optional )
New function: TDR cable testing, accurately measure BNC cable, network cable, control cable break-point and short-circuits location. It improves working efficiency.
5. Visual fault locator
Visual Fault Locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber's bending and breakage, and Continuous light-emitting and 1HZ, 2Hz modulating light output. It is indispensable tool in fiber project constructing, fiber net-work maintaining, optical component manufacture and research.
Specification:

Applications:
1. Find out the other end of the cable in security maintenance and network engineering
2. CCTV system installation and maintenance
-3. Dome camera and All in one camera testing
-4. The CCTV transmitting channel testing
5. -PTZ controller
