Digital CCTV Camera Accessories, CCTV Test Monitor PTZ Controller
数字CCTV摄像机配件，CCTV测试监视器PTZ控制器
议价
加入意向| 型号。 | STEST-896 |
| 长宽比 | 3.5英寸 |
| 最佳分辨率 | 960*240 |
| 宽屏 | 宽屏 |
| 3D | 不是3D |
| 尺寸 | 3.5英寸 |
| 商标 | eyevison |
| 起源 | 中国深圳 |
| 应用 | 室内，室外，监控，大屏幕工程 |
| 特征 | LED背光显示屏，支持电视功能 |
| 类型 | TFT |
| 响应时间 | 为3ms |
| 接口类型 | HDMI |
| 功率 | 5v 2a |
| 规范 | ce，fcc |
| HS编码 | 9031809090 |
数字CCTV摄像机配件，CCTV测试监视器PTZ控制器
快速详细：
1.支持RS232和RS485接口，速率150-19200bps
2.强大的测试LAN电缆，测量连接状态并显示连接顺序
3. PTZ（P / L＆Zoom）控制：控制P / L的状态，放大/缩小摄像机，调节光圈，焦点和设定参数，运行并调用预置位reset
4.锂离子聚合物电池（3.7V DC3000mAh），更可靠，工作15小时
5.光功率计，测试视频光纤传输设备的激光功率，并测试光纤跳线等。
描述：
CCTV测试仪PRO STest-896是为现场安装和维护视频监控系统而开发的。可用于显示视频，测试视频级别，控制PTZ，扫描PTZ地址，生成图像，捕获RS485数据和测试LAN电缆等。其功能，易于操作和便携性使CCTV技术人员安装简单，保持闭路电视系统，提高工作效率，降低劳动力成本。
STest-896配备了光功率计。用于测试视频光纤传输设备的激光功率，并测试光纤跳线等。
STest-896是用于闭路电视安全系统，光纤通信，有线电视等光纤工程的理想多功能仪器。
规范：
模型 | STest-896 CCTV安全测试仪 |
视频测试 | |
信号模式 | ntsc / pal（自动调整） |
显示 | 3.5寸TFT-LCD，960×240分辨率 |
LCD调节 | 可调亮度，对比度，LCD颜色 |
视频输入/输出 | 1通道BNC输入和1通道输出输出utput |
视频输出模式 | 1.0 Vp-p |
视频等级测试 | |
水平测试 | 用IRE或mV测量的视频信号 |
功率输出 | |
功率输出 | dc12v，1a |
音频测试 | |
音频输入 | 1声道音频输入 |
云台控制器 | |
通讯 | RS232，RS422单工和RS485 |
云台协议 | 兼容20多种协议，如PELCO-D / P，三星，松下，林林，雅安等。 |
波特率 | 150,300,600,1200,2400,4800,9600,19200bps |
视频信号生成 | |
色条生成 | 输出1通道彩条视频信号进行测试 |
utp电缆测试 | |
UTP电缆测试 | 测试UTP电缆连接状态并显示在屏幕上。阅读测试箱的编号。 |
PTZ数据捕获和显示 | |
云台数据测试 | 捕获并分析从控制设备发送的PTZ数据 |
PTZ地址扫描 | |
PTZ地址扫描 | 搜索PTZ摄像机的ID |
光功率计 | |
光功率计 | 测试视频光纤传输设备的激光功率，并测试光纤跳线等。 |
功率 | |
电源适配器 | dc5v，2a |
电池 | 1个锂离子聚合物电池，3.7V DC3000mAh |
充电 | 4.5小时充电时间，工作12小时 |
消费低 | 睡眠模式，显示电池电量状态 |
其他参数 | |
工作温度 | -10ºC--- +50ºc-+50ºCrdm;C-+50ºC |
工作湿度 | 30%-90% |
尺寸/重量 | 112mmx189mmx47mm / 500g |
应用：
1.闭路电视系统的安装和维护
2.圆顶相机和所有在一个相机测试
3.中央电视台发射频道测试
PTZ控制器
| Model NO. | STest-896 |
| Aspect ratio | 3.5 Inch |
| Optimum Resolution | 960*240 |
| Widescreen | Widescreen |
| 3D | Not 3D |
| Size | 3.5 Inch |
| Trademark | EYEVISON |
| Origin | Shenzhen, China |
| Application | Indoor, Outdoor, Surveillance, Big-Screen Project |
| Feature | LED Backlight Display, Support TV Function |
| Type | TFT |
| Response Time | 3ms |
| Interface Type | HDMI |
| Power | 5V 2A |
| Specification | CE, FCC |
| HS Code | 9031809090 |
Digital CCTV Camera Accessories , CCTV Test Monitor PTZ Controller
Quick Detail:
1. Support RS232 and RS485 interface, the rate 150-19200bps
2. Powerful in testing LAN cable, measuring the connecting status and displaying the sequence of connection
3. PTZ(P/L & Zoom) Control: Control the status of P/L, zoom in/out the camera, adjust the aperture, foci and setting parameters, run and call the presetresetreset
4. Lithium Ion Polymer Batteries(3.7V DC3000mAh), more reliable, and work 15 hours
5. Optical power meter, testing the laser power of Video Fiber Optic Transmission equipment, and testing the Fiber Optic Patch Cord , etc.
Description:

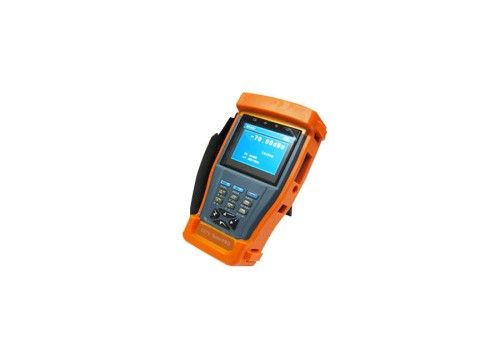

The CCTV testerPRO STest-896 is developed for the On-Site installation and maintenance of video monitoring system. It can be used for displaying video, testing video level, controlling PTZ, scanning PTZ address, generating images, capturing data of RS485 and testing LAN cable etc. Its functions, easy operation, and portability makes it simple for the CCTV technician to install and maintain CCTV system, improving work efficiency and get the labor cost down.
STest-896 equipped with the Optical Power Meter. Use in testing the laser power of Video Fiber Optic Transmission equipment, and testing the Fiber Optic Patch Cord , etc.
STest-896 is an ideal multifunction Instrument for CCTV security system, Fiber Optical communication, CATV and other Fiber Optic works.
Specification:
MODEL | STest-896 CCTV Security Tester |
Video Test | |
Signal mode | NTSC/PAL (Auto Adjust) |
Display | 3.5 inch TFT-LCD ,960 x 240 resolution |
LCD adjust | Adjustable brightness, contrast, color of LCD |
Video IN/OUT | 1 channel BNC Input & 1 channel Outpututpututput |
Video Output Mode | 1.0 Vp-p |
Video Level test | |
Level test | Video signals measured in IRE or mV |
Power Output | |
Power output | DC12V, 1A |
Audio Test | |
Audio input | 1 channel Audio input |
PTZ controller | |
Communication | RS232, RS422 simplex and RS485 |
PTZ Protocol | Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.customized |
Baud Rate | 150,300,600,1200,2400,4800,9600,19200bps |
Video Signal Generation | |
Color bar generation | Output 1 channel color bar video signal for testing monitor |
UTP CABLE TEST | |
UTP cable test | Test UTP cable connection state and display in the screen. Read the number of the test box. |
PTZ data Capture and display | |
PTZ Data Test | Capture and Analyze the PTZ data sent from controlling device |
PTZ address scanning | |
PTZ address scan | Search up the ID of PTZ camera |
Optical Power Meter | |
Optical Power Meter | testing the laser power of Video Fiber Optic Transmission equipment, and testing the Fiber Optic Patch Cord , etc. |
POWER | |
Power Adapter | DC5V, 2A |
Battery | 1 pcs Lithium Ion Polymer Batteries, 3.7V DC3000mAh |
Rechargeable | 4.5 hours recharging time, work for 12 hours |
Low Consumption | Sleeping mode, display battery power state |
Other Parameters | |
Work Temperature | -10ºC---+50ºC-+50ºCrdm;C-+50ºC |
Work Humidity | 30%-90% |
Dimension/Weight | 112mmx189mmx47mm / 500g |
Application:
1. CCTV system installation and maintenance
2. Dome camera and All in one camera testing
3. The CCTV transmitting channel testing
4. PTZ controller
