3000mAh UTP电缆网络摄像机测试仪SD卡波特率多功能
快速详细：
1.10x放大，视频图像可放大查看细节，使用方便
2.快照并将当前图像保存为SD卡中的JPG文件
3.光功率计，用于光纤CCTV监控系统，CATV系统，光纤通信网络的部署和测试
4.PING测试，测试IP摄像机或其他网络设备的以太网端口是否正常工作，以及IP地址是否正确
5.IP地址扫描，快速搜索连接的IP摄像机和其他网络设备的IP地址
6.POE电压测量，测试Poe开关对IP摄像机，无线AP设备和其他PD设备的电压
7.设备端口闪烁，通过发送特殊信号轻松查找连接的PoE交换机端口，连接的PoE端口将以特殊频率闪烁。
8.连接显示器检查设置IP地址是否被占用
功能：
云台控制器
显示输入视频图像。平移/倾斜P / T单元并放大/缩小图像。设置协议，通信端口，波特率，PTZ ID，云台速度等控制参数;设置并调用预置位置。
2.增强型彩条发生器
视频生成，PAL​​ / NTSC多系统彩条视频发生器（八系可切换，发送/接收八系统彩色图像）。通过接收视频颜色条来测试视频通道是否正常传输。并判断颜色是否不同，由于传输损耗或干扰，适用于视频传输的现场测试，如光学视频发射机和接收机，视频线等。
新功能彩条可以测试图像是否偏移。
彩条（红，绿，蓝，白，黑）测试显示器是否有白点或黑点等
3. DC12V 1A输出功率
用测试仪的DC12V（1A）电源输出为相机供电。当电源不可用时，它有助于演示和测试。
音频测试
测试拾音设备的音频输入。使用音频电缆连接测试仪和拾音设备。
电缆测试仪
测试LAN电缆或电话线。
使用CCTV测试仪和电缆测试仪连接LAN电缆或电话线。然后将显示连接状态，电缆类型和电线序列，以及电缆测试仪套件的序列号。
规范：

应用：
1.了解安全维护和网络工程中电缆的另一端
2.闭路电视系统的安装和维护
穹顶相机和所有在一个相机测试
中央电视台传输频道测试
云台控制器

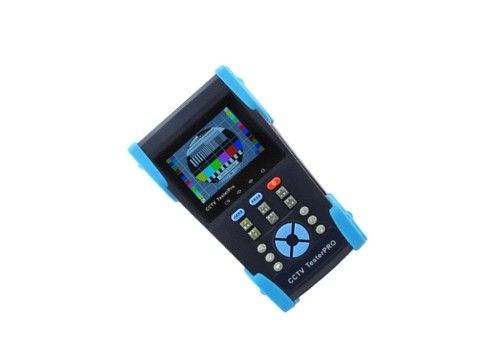

3000mAh UTP Cable Web Camera Tester SD Card Baud Rate Multi-Functional
Quick Detail:
1.10x zoom, video image can be magnified to view the details, easy to use
2.Snapshot and save the current image as JPG file in the SD card
3.Optical power meter, used for optic fiber CCTV monitor system, CATV system, optic fiber communication networks deployment and test
4.PING testing, test IP camera or other network devices' ether net port whether work normally, and the IP address whether is right
5.IP address scan, quickly search the IP address for the connected IP camera and other network devices
6.POE voltage measurement, test the Poe switch's voltage to IP cameras, wireless AP device and other PD devices
7.Device Port flicker, easy to find the connected Poe switch port by sending special signals, the connected Poe port will flicker at special frequency.
8.Link monitor; check the setting IP address whether occupied
Function:
1. PTZ controller
Display the input video images. Pan/tilt the P/T unit and zoom in/ out the image. Setup the controlling parameters like protocol, communication port, baud rate, PTZ ID, pan/tilt speed; set and call preset position.
2. Enhanced Color bar generator
Video Generating, the PAL/NTSC multi-system color bar video generator (Eight-system switchable, transmit/receive eight-system colorful imagines). By receiving the video color bar to test the video channel whether transmit normally. And judge whether the color is different, because of the transmission loss or interference, it suitable for Video transmission of the field tests, such as optical video transmitter and receiver, video cable etc.
The new function color bar can test the image whether shift.
The color bar (red, green, blue, white, black) test the monitor whether have white or black dot etc.
3. DC12V 1A output power
Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available.
4. Audio testing
Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.
5. Cable tester
Test LAN cable or telephone cable.
Connect LAN cable or telephone cable with the CCTV tester and cable tester. And then the connecting status, cable type and the sequence of wires will be displayed, as well as the serial number of the cable tester kit.
Specification:

Applications:
1. Find out the other end of the cable in security maintenance and network engineering
2. CCTV system installation and maintenance
3. Dome camera and All in one camera testing
4. The CCTV transmitting channel testing
5. PTZ controller
