多功能闭路电视摄像机配件，CCTV IP摄像机测试仪TFT LCD带LED灯
描述：
新型闭路电视测试仪是为网络摄像机，模拟摄像机和网络设备的现场安装和维护开发的，具有视频显示，云台控制，DC12v输出电源，音频测试，彩条发生器，RS 485数据搜索和电缆测试，这与以前的型号相同。新开发的功能包括POE电源测试，PING测试，IP地址扫描，电缆扫描，视频快照，光功率计，视频记录，图像放大，端口闪烁，LED灯等。新的测试仪还内置TDR电缆测试，专门为安全监控系统中的BNC电缆测试而设计。该功能可以准确测量BNC电缆和网线的断点和短路位置。设计具有易于操作和便携性的新测试仪使cctv技术人员或安装人员能够轻松安装和维护闭路电视系统，通过减少现场时间来提高工作效率。
功能：
IP地址扫描
在数字IP监控应用中，如果IP摄像机的IP地址不清楚或被遗忘;该设备不能使用。
IP地址扫描可以快速搜索连接的IP摄像机或其他网络设备的IP地址。
链接监视器
要将IP摄像机或其他网络设备添加到当前网络组，新的IP地址不能占用，否则将导致IP冲突，并停止设备的正常工作。链接监视器可以检查新的设置IP地址是否被占用。
PING考试
PING是最传统的网络调试工具;它用于测试连接的IP摄像机或其他网络设备的以太网端口是否正常工作，IP地址是否正确。
POE测试仪
当POE开关向IP摄像机提供POE电源时，可以测试POE电压。它可以清楚地显示以太网电缆引脚上的电源+和电源，每个电缆引脚的电压和电缆引脚序列号的故障连接。
5. LED灯
工程师在夜间安装和维护安全系统非常有用。 LED开/关按钮，操作方便。
F1，F2用户定义的快捷键
用户定义的快捷键旨在提高工程师的效率，随时按压，易于操作。
7. TDR断点和短路测量（可选功能参考最后一页）
新功能：TDR电缆测试，准确测量BNC电缆，网线，控制电缆断点和短路位置。提高工作效率。
规范：

有竞争力的优势：
中央电视台业界领先，专业的制造商
2.高品质
竞争力合理的价格
最好的售前，售中和售后服务
5.专业技术支持
ce，fcc，rohs通过

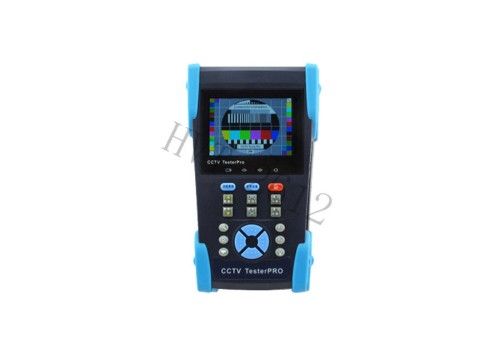

Multi-function CCTV Camera Accessories , CCTV IP Camera Tester TFT LCD With LED Lamp
Description:
The new CCTV tester is developed for the On-Site installation and maintenance of IP camera,analog camera and network device, with Video display, PTZ control, DC12v output power, Audio test, Color bar generator, RS 485 Data searching and Cable testing, which are the same to the previous models. The new developed functions include POE power supply testing, PING testing, IP address scan, Cable scan, Video snapshot, Optical power meter, Video record, Image magnification, Port flicker, LED lamp etc. The new tester also has built in TDR cable testing, which is specialized designed for BNC cable testing in the security monitoring system. This function can accurately measure BNC cable and network cable's break point and short-circuit location. The new tester designed with easy operation and portability makes it simple for a cctv technician or installer to install and maintain CCTV systems, improving work efficiency by reducing time in the field.
Function:
1. IP address scan
In digital IP surveillance applications, if IP camera's IP address is not clear or forgotten; the device cannot be used .
IP address scan can quickly search the connected IP camera or other network device's IP address.
2. Link monitor
To add an IP camera or other network device to the current network group, the new IP address must not be occupied, otherwise it will cause IP conflicts and stop the equipment normal working. Link monitor can check if the new setting IP address is occupied.
3. PING test
PING is the most conventional network debugging tools; It is used for testing if the connected IP camera or other network equipment's ethernet port is working normally and the IP address is correct.
4. POE tester
It can test the POE voltage when the POE switch is supplying the POE power to IP camera. It can clearly display the power+ and power- on the ethernet cable pins, each cable pin's voltage and the failure connection of cable pin series numbers.
5. LED lamp
It is useful for the Engineer to install and maintain security system at night. LED On/Off pressing button, easy operation.
6. F1,F2 User-defined shortcut keys
The user-defined shortcut key is designed for improving the efficiency for the engineer, anytime press, easy to operate.
7. TDR Break-point and short-circuit measurement (optional function refer to the last page)
New function: TDR cable testing, accurately measure BNC cable, network cable, control cable break-point and short-circuits location. It improves working efficiency.
Specification:

Competitive advantages:
1. Leading and professional manufacturer in CCTV industry
2. High quality
3. Competitive and reasonable price
4. Best pre-sale,sale and after-sale service
5. Professional technical support
6. CE,FCC,RoHS passed
