IP摄像机监视器CCTV发射信道支持RS232 / RS485
快速详细：
新型闭路电视测试仪是为网络摄像机，模拟摄像机和网络设备的现场安装和维护开发的，具有视频显示，云台控制，DC12v输出电源，音频测试，彩条发生器，RS 485数据搜索和电缆测试，这与以前的型号相同。新开发的功能包括POE电源测试，PING测试，MultiMate，可视故障定位器，IP地址扫描，电缆扫描，视频快照，视频记录，图像放大，端口闪烁，LED灯等。新的测试仪也内置TDR电缆测试，专门为安全监控系统中的BNC电缆测试而设计。该功能可以准确测量BNC电缆和网线的断点和短路位置。新型测试仪设计操作简便，便于CCTV技术人员或安装人员安装和维护闭路电视系统，通过缩短现场时间，提高工作效率。
应用：
1.了解安全维护和网络工程中电缆的另一端
2.闭路电视系统的安装和维护
穹顶相机和所有在一个相机测试
中央电视台传输频道测试
云台控制器
特征：
3.5英寸全景TFT-LCD，480（RGB）x320
2.消费低，工作11小时
3. OSD菜单，英文，中文等语言可选
4.液晶屏亮度/对比度/颜色饱和度可调
5.电缆扫描，发送具体信号，轻松找到连接的电缆
6.自动识别和调整NTSC和PAL的视频模式
7.增强彩条发生器，通过接收视频彩条来测试视频通道是否正常发送
8.可移动Micro SD
9. LED灯泡，夜间操作方便
10.用户定义的快捷键（F1和F2）
11.数字万用表，电压，电流，电阻和电容可以测试，连续性测试，二极管测试。
12.视觉故障定位器，是光纤项目建设，光纤网络维护，光学元件制造和研究不可缺少的工具。
13.10倍放大，视频图像可放大查看细节，使用方便
14.快照并将当前图像保存为SD卡中的JPG文件
PING测试，测试IP摄像机或其他网络设备的以太网端口是否正常工作，IP地址是否正确
16. IP地址扫描，快速搜索所连接的IP摄像机和其他网络设备的IP地址
产品规格：

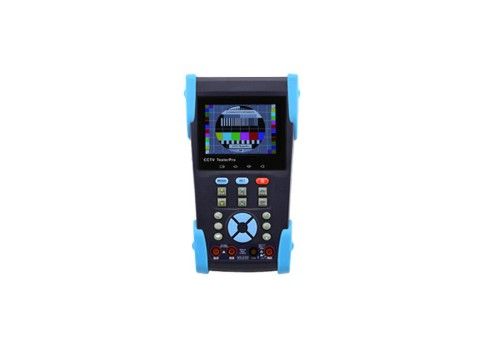

IP Camera Tester Monitor CCTV Transmitting Channel Support RS232 / RS485
Quick Detail:
The new CCTV tester is developed for the On-Site installation and maintenance of IP camera, analog camera and network device, with Video display, PTZ control, DC12v output power, Audio test, Color bar generator, RS 485 Data searching and Cable testing, which are the same to the previous models. The new developed functions include POE power supply testing, PING testing, MultiMate, Visual fault locator ,IP address scan, Cable scan, Video snapshot, Video record, Image magnification, Port flicker, LED lamp etc. The new tester also has built in TDR cable testing, which is specialized designed for BNC cable testing in the security monitoring system. This function can accurately measure BNC cable and network cable's break point and short-circuit location. The new tester designed with easy operation and portability makes it simple for a CCTV technician or installer to install and maintain CCTV systems, improving work efficiency by reducing time in the field.
Applications:
1. Find out the other end of the cable in security maintenance and network engineering
2. CCTV system installation and maintenance
3. Dome camera and All in one camera testing
4. The CCTV transmitting channel testing
5. PTZ controller
Features:
1. 3.5 inch full-view TFT-LCD, 480(RGB)x320
2. Low consumption, work for 11 hours
3. OSD menu, English, Chinese and other languages optional
4. LCD screen brightness/contrast/color Saturation adjustable
5. Cable scan, send the specific signal, easy to find the connected cable
6. Automatically identify and adapt the video mode of NTSC and PAL
7. Enhanced color bar generator, by receiving the video color bar to test the video channel whether transmit normally
8. Moveable Micro SD
9. LED Lamp, easy to operate at night
10. User-defined shortcut keys(F1 and F2)
11. Digital Multi-meter, voltage, current, resistance and capacitance can be tested, continuity testing, diode testing.
12. Visual fault locator, It is indispensable tool in fiber project constructing, fiber net-work maintaining, optical component manufacture and research.
13. 10x zoom, video image can be magnified to view the details, easy to use
14. Snapshot and save the current image as JPG file in the SD card
15. PING testing, test IP camera or other network devices' Ethernet port whether work normally, and the IP address whether is right
16. IP address scan, quickly search the IP address for the connected IP camera and other network devices
Specifications:
