29-35 HP Forced Circulation Diesel Engines Single-Cylinder
29-35 HP强制循环柴油发动机单缸
| 型号。 | km160 km173 km186 |
| 速度 | 速度 |
| 点火模式 | 压缩点火 |
| 冷却气瓶 | 水冷 |
| 汽油 | 柴油发动机 |
| 马力25HP： | 速度：2200R /分钟 |
| 规范 | ISO9001质量认证; |
| HS编码 | 84089091 |
| 进气压力脉冲 | 自然吸气 |
| 活塞运动 | 往复式 |
| 气缸数 | 单缸机 |
| 中风次数 | 四条线 |
| 气缸排列形式 | H |
| 商标 | LD |
| 起源 | 中国山东莱阳 |
产品描述： KM160系列TD型柴油发动机：应用强制水冷，为整机提供精彩的冷却。此外，它具有延长的行程，强大的扭矩，高功率和低油耗;它应用耐用的20CrMnTi碳氮共渗齿轮;核心部件正在加强设计。这是一台可靠的机器。
适用范围：适用于拖拉机，农用运输机械，发电机组，抽油机，小型工程机械等
产品参数
| 型号。 | 燃烧形式 | 眼睛×中风中风 Stroke （毫米×毫米）MES;毫米）mes;mm) | 移位 (L) | 额定功率（kW）/额定转速（kW / rpm） | 最大。扭矩（Nm）/额定转速（r / min） | 闵。比燃耗（g / kW.h） （克/ KW.H） | 尺寸（mm） |
| km160td | 直接注射 | 125×130mes; 130mes;130 | 1.595 | 20.58/2200 | 100/1650 | 252 | 822×457×674457×674es;674457×674 |
| ld30td | 直接注射 | 125×130mes; 130mes;130 | 1.595 | 22/2200 | 107/1650 | 252 | 822×457×674457×674es;674457×674 |
| km173td | 直接注射 | 130×130mes; 130mes;130 | 1.73 | 23.53/2200 | 114.4/1650 | 252 | 822×457×674457×674es;674457×674 |
| km186td | 直接注射 | 135×130mes; 130mes;130 | 1.86 | 25/2200 | 121.5/1650 | 252 | 822×457×674457×674es;674457×674 |
| Model NO. | KM160 KM173 KM186 |
| Speed | Speed |
| Ignition Mode | Compression-Ignition |
| Cooling Cylinder | Water-Cooled |
| Fuel | Diesel Engine |
| Horse Power 25HP: | Speed:2200r/Min |
| Specification | ISO9001 Quality Certificate; |
| HS Code | 84089091 |
| Intake Pressure Impulse | Naturally Aspirated |
| Piston Movement | Reciprocating |
| Number of Cylinders | Single-Cylinder Machine |
| Number of Strokes | Four-Stroke |
| Cylinder Arrangement Form | H |
| Trademark | LD |
| Origin | Laiyang, Shandong, China |

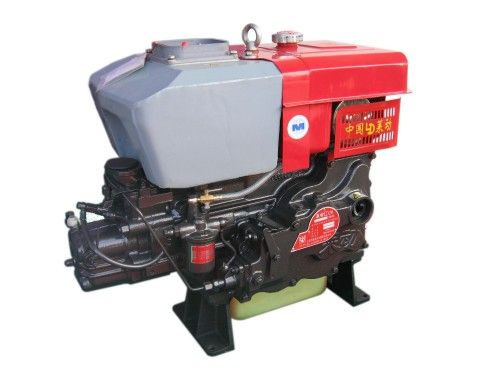

Product Description: Series KM160 TD-type diesel engines: Apply forced water-cooling, so that it provides wonderful cooling for complete machine. Additionally it has extended stroke, powerful torque, high power and low fuel consumption; it applies durable 20CrMnTi carbonitriding gears; and the core components are enhancing designed. It's a reliable machine.
Scope of application:Adaptable for tractors, agricultural transport machinery, generating sets, pumping units, small-sized engineering machinery and so forth
Product Parameters
| Model No. | Form of combustion | Bore × Stroke Stroke Stroke (mm×mm)mes;mm)mes;mm) | Displacement (L) | Rated Power (kW)/Rated speed(kW/rpm) | Max. Torque (N.m)/Rated speed(r/min) | Min. specific fuel-consumption (g/kW.h) (g/kw.h) | Dimension(mm) |
| KM160TD | Direct injection | 125×130mes;130mes;130 | 1.595 | 20.58/2200 | 100/1650 | 252 | 822×457×674457×674es;674457×674 |
| LD30TD | Direct injection | 125×130mes;130mes;130 | 1.595 | 22/2200 | 107/1650 | 252 | 822×457×674457×674es;674457×674 |
| KM173TD | Direct injection | 130×130mes;130mes;130 | 1.73 | 23.53/2200 | 114.4/1650 | 252 | 822×457×674457×674es;674457×674 |
| KM186TD | Direct injection | 135×130mes;130mes;130 | 1.86 | 25/2200 | 121.5/1650 | 252 | 822×457×674457×674es;674457×674 |
