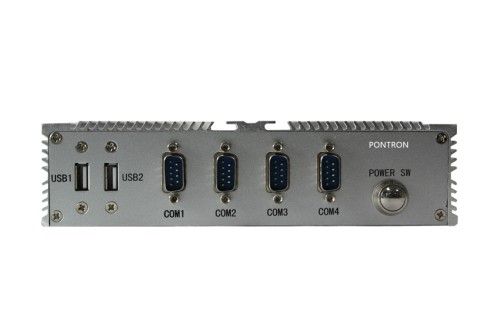

Industrial Box Pc′s with 4*RS232/VGA/HDMI with Intel Atom N2800 1.86g
工业箱PC与4 * RS232 / VGA / HDMI与Intel Atom N2800 1.86g
| 型号。 | IBOX-N2800 |
| 证明 | ce，fcc |
| 商标 | pontron |
| 起源 | 中国 |
| 处理器类型 | 英特尔 |
| 类型 | 嵌入式系统 |
| 规范 | CE / FCC / CCC |
主要特征
·压缩无风扇设计设计s design
·3.5“母板，配有Intel ATOM N2800 1.86G00 1.86G00 1.86G
·支持4 * rs232 coms232 comS232 COM
·支持DC12V电源供电r supply
介绍
IBOX-N2800是带有3.5“母板的迷你Box PC，内置英特尔ATOM N2800双核1.86GHz CPU，英特尔NM10 + N2800芯片组，附带
1 * VGA，1 * HDMI，4 * RS232 COM（RS485之一），可连接多种信号，2 * RJ45,4 * USB 2.0,1 *音频输出。 WiFi / 3G（可选），具有压缩无风扇设计。散热非常好，外观美观，在整个市场上受欢迎。 Box PC帮助用户节省空间，多功能，可用于办公，设备，工业线路，交通运输，自动化，通讯等。
·压缩无风扇设计设计s design
·3.5“母板，配有Intel ATOM N2800 1.86G00 1.86G00 1.86G
·支持4 * rs232 coms232 comS232 COM
·支持DC12V电源供电r supply
介绍
IBOX-N2800是带有3.5“母板的迷你Box PC，内置英特尔ATOM N2800双核1.86GHz CPU，英特尔NM10 + N2800芯片组，附带
1 * VGA，1 * HDMI，4 * RS232 COM（RS485之一），可连接多种信号，2 * RJ45,4 * USB 2.0,1 *音频输出。 WiFi / 3G（可选），具有压缩无风扇设计。散热非常好，外观美观，在整个市场上受欢迎。 Box PC帮助用户节省空间，多功能，可用于办公，设备，工业线路，交通运输，自动化，通讯等。
| 中央处理器 | 英特尔原子n2800 1.86g |
| 芯片组 | 英特尔NM10 + N2800 |
| 记忆 | ddr3 2g / 4g |
| 硬盘 | msata 16 / 32g ssd（选项） |
| I / O | 1 x vga |
| 1 x hdmi | |
| 1x3G | |
| 4 x RS-232（选件1 x RS485） | |
| 2 x rj45 10/100 / 1000m lan | |
| 4 x usb2.0 | |
| 1 x音频线路输出 | |
| 电源 | DC 12V输入 |
| 颜色 | 白/黑（可选） |
| 尺寸 | 200 x 125 x 50mm |
| n.g | 2.5公斤 |
| 工作温度 | 0°C〜60°C 60°Ceg;C 60°C |
| 储存温度 | -10°C〜70°C 70°Ceg;C 70°C |
| 储存湿度 | 5〜90％@ 40°C（非冷凝））ing ) |
| 振动 | 5 grms / 5〜500Hz工作状态（SSD） |
| 休克 | 50克峰值加速度（11ms持续时间）（SSD） |
| Model NO. | IBOX-N2800 |
| Certification | CE, FCC |
| Trademark | PONTRON |
| Origin | China |
| Processor Type | Intel |
| Type | Embedded Systems |
| Specification | CE/FCC/CCC |
Main Feature
· Compacting fanless designs designs design
· 3.5'' mother board with Intel ATOM N2800 1.86G00 1.86G00 1.86G
· Support 4*RS232 COMS232 COMS232 COM
· Support DC12V power supplyr supplyr supply
Introduction
IBOX-N2800 is mini Box PC with 3.5'' mother board with onboard Intel ATOM N2800 dual-Core 1.86GHz CPU, Intel NM10+N2800 chipset, which comes with
1*VGA, 1*HDMI, 4*RS232 COM( one of RS485) which can be connected to many kind of signals, 2*RJ45, 4*USB 2.0, 1*Audio line out. WiFi/3G(optional) with compacting fanless design. It's very good heat scattering and beautiful appearance, being popular in the whole market. Box PC help user to save space with multi-functions which can be used to office, equipment, industrial line, transportation, automation, communication etc.
· Compacting fanless designs designs design
· 3.5'' mother board with Intel ATOM N2800 1.86G00 1.86G00 1.86G
· Support 4*RS232 COMS232 COMS232 COM
· Support DC12V power supplyr supplyr supply
Introduction
IBOX-N2800 is mini Box PC with 3.5'' mother board with onboard Intel ATOM N2800 dual-Core 1.86GHz CPU, Intel NM10+N2800 chipset, which comes with
1*VGA, 1*HDMI, 4*RS232 COM( one of RS485) which can be connected to many kind of signals, 2*RJ45, 4*USB 2.0, 1*Audio line out. WiFi/3G(optional) with compacting fanless design. It's very good heat scattering and beautiful appearance, being popular in the whole market. Box PC help user to save space with multi-functions which can be used to office, equipment, industrial line, transportation, automation, communication etc.
| CPU | Intel ATOM N2800 1.86G |
| Chipset | Intel NM10+N2800 |
| Memory | DDR3 2G/4G |
| Hard disk | mSATA 16/32G SSD(option) |
| I/O | 1 x VGA |
| 1 x HDMI | |
| 1x3G | |
| 4 x RS-232(option 1 x RS485) | |
| 2 x RJ45 10/100/1000M LAN | |
| 4 x USB2.0 | |
| 1 x AUDIO LINE OUT | |
| Power supply | DC 12V Input |
| Color | White/Black(option) |
| Dimension | 200 x 125 x 50mm |
| N.G | 2.5KG |
| Operating Temperature | 0°C ~ 60°C 60°Ceg;C 60°C |
| Storage Temperature | -10°C ~ 70°C 70°Ceg;C 70°C |
| Storage Humidity | 5~90%@40°C(non-condensing )ing )ing ) |
| Vibration | 5 grms / 5 ~ 500Hz in working status(SSD) |
| Shock | 50 g peak acceleration(11ms duration)(SSD) |
