Industrial Box Pc′s with Intel I7 620 2.66GHz, with 3*RS232/485, 2*LAN, WiFi, Dio
工业箱PC与英特尔I7 620 2.66GHz，与3 * RS232 / 485，2 *局域网，WiFi，Dio
| 型号。 | IBOX-QM57 |
| 证明 | ce，rohs，fcc |
| 商标 | pontron |
| 起源 | 中国 |
| 处理器类型 | 英特尔 |
| 类型 | 嵌入式系统 |
| 规范 | CE / FCC / CCC |
主要特征
·压缩无风扇设计设计s design
·英特尔核心I7-2.66GI7-2.66GI7-2.66G
·支持3 * rs232 coms232 comS232 COM
·支持DC12V电源供电r supply
介绍
IBOX-QM57是配备英特尔酷睿I7-620M 2.66G CPU，英特尔QM57芯片组的MINI盒式PC，配有1 * DVI，3 * RS-232（1 * RS485 / 422可选），2 * RJ45 10/100 / 1000M LAN，4 * USB2.0，具有压缩无风扇设计。散热非常好，外观美观，在整个市场上受欢迎。 Box PC帮助用户节省空间，多功能，可用于办公，设备，工业线路，交通运输，自动化，通讯等。
·压缩无风扇设计设计s design
·英特尔核心I7-2.66GI7-2.66GI7-2.66G
·支持3 * rs232 coms232 comS232 COM
·支持DC12V电源供电r supply
介绍
IBOX-QM57是配备英特尔酷睿I7-620M 2.66G CPU，英特尔QM57芯片组的MINI盒式PC，配有1 * DVI，3 * RS-232（1 * RS485 / 422可选），2 * RJ45 10/100 / 1000M LAN，4 * USB2.0，具有压缩无风扇设计。散热非常好，外观美观，在整个市场上受欢迎。 Box PC帮助用户节省空间，多功能，可用于办公，设备，工业线路，交通运输，自动化，通讯等。
| 材料 | 工业铝合金 |
| 中央处理器 | 英特尔酷睿i7-620M 2.66GHz |
| 芯片组 | 英特尔QM57 |
| 记忆 | DDR3 2G / 4G（可选） |
| 硬盘 | 2.5'SATA 500G HDD / 16 / 32G SSD（可选） |
| I / O | 1 x dvi |
| 3个RS-232（1个RS485 / 422可选） | |
| 2 x rj45 10/100 / 1000m lan | |
| 4 x usb2.0 | |
| 1 x DIO 8Bit（4位输入，4位输出） | |
| 1 x WIFI（可选） | |
| 电源 | DC 12V输入 |
| LED灯 | 1 x电源led，1 x hdd led |
| 看门狗定时器 | 可编程超时中断或恢复 |
| 颜色 | 白（可选） |
| 口 | Windows 7，Windows XP，Windows XP Embedded，Linux |
| 尺寸 | 308 x 192.4 x 88.9毫米 |
| n.g | 3.5公斤 |
| 工作温度 | -20°C〜60°C 60°Ceg;C 60°C |
| 储存温度 | -10°C〜70°C 70°Ceg;C 70°C |
| 储存湿度 | 5〜90％@ 40°C（非冷凝））ing ) |
| 振动 | 5 grms / 5〜500Hz工作状态（SSD） 1 grms / 5〜500Hz工作状态（内置HDD模块） |
| 休克 | 50克峰值加速度（11ms持续时间）（SSD） 20 g峰值加速度（持续时间11ms）（内置HDD模块） |
| 订购信息 | IBOX-QM57：Mini Box PC采用英特尔酷睿i7-620M 2.66GHz，W / SSD16Gb，W / 2G内存，12V电源。 |
| Model NO. | IBOX-QM57 |
| Certification | CE, RoHS, FCC |
| Trademark | PONTRON |
| Origin | China |
| Processor Type | Intel |
| Type | Embedded Systems |
| Specification | CE/FCC/CCC |
Main Feature
· Compacting fanless designs designs design
· Intel core I7-2.66GI7-2.66GI7-2.66G
· Support 3*RS232 COMS232 COMS232 COM
· Support DC12V power supplyr supplyr supply
Introduction

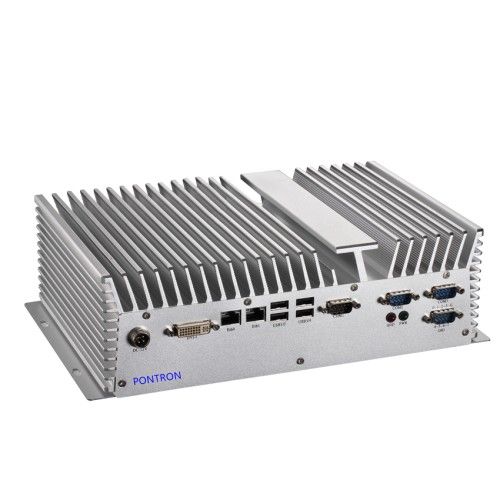

IBOX-QM57 is MINI box PC's with Intel Core I7-620M 2.66G CPU, Intel QM57 Chipset, which comes with 1*DVI, 3*RS-232(1*RS485/422 optional), 2*RJ45 10/100/1000M LAN, 4*USB2.0, with compacting Fanless design. It's very good heat scattering and beautiful appearance, being popular in the whole market. Box PC help user to save space with multi-functions which can be used to office, equipment, industrial line, transportation, automation, communication etc.
· Compacting fanless designs designs design
· Intel core I7-2.66GI7-2.66GI7-2.66G
· Support 3*RS232 COMS232 COMS232 COM
· Support DC12V power supplyr supplyr supply
Introduction
IBOX-QM57 is MINI box PC's with Intel Core I7-620M 2.66G CPU, Intel QM57 Chipset, which comes with 1*DVI, 3*RS-232(1*RS485/422 optional), 2*RJ45 10/100/1000M LAN, 4*USB2.0, with compacting Fanless design. It's very good heat scattering and beautiful appearance, being popular in the whole market. Box PC help user to save space with multi-functions which can be used to office, equipment, industrial line, transportation, automation, communication etc.
| Material | Industrial Al-alloy |
| CPU | Intel Core i7-620M 2.66GHz |
| Chipset | Intel QM57 |
| Memory | DDR3 2G/4G(optional) |
| Hard disk | 2.5'SATA 500G HDD/16/32G SSD(optional)ional) |
| I/O | 1 x DVI |
| 3 x RS-232(1 x RS485/422 optional) | |
| 2 x RJ45 10/100/1000M LAN | |
| 4 x USB2.0 | |
| 1 x DIO 8Bit(4bit input, 4bit output) | |
| 1 x WIFI(optional) | |
| Power supply | DC 12V Input |
| LED light | 1 x Power LED,1 x HDD LED |
| Watchdog timer | Programmable overtime interrupt or recovery |
| Color | White(optional) |
| OS | Windows 7,Windows XP, Windows XP Embedded,Linux |
| Dimension | 308 x 192.4 x 88.9mm |
| N.G | 3.5KG |
| Operating Temperature | -20°C ~ 60°C 60°Ceg;C 60°C |
| Storage Temperature | -10°C ~ 70°C 70°Ceg;C 70°C |
| Storage Humidity | 5~90%@40°C(non-condensing )ing )ing ) |
| Vibration | 5 grms / 5 ~ 500Hz in working status(SSD) 1 grms / 5 ~ 500Hz in working status(Built-in HDD module) |
| Shock | 50 g peak acceleration(11ms duration)(SSD) 20 g peak acceleration(11ms duration)(Built-in HDD module) |
| Ordering Information | IBOX-QM57:Mini box PC's with Intel Core i7-620M 2.66GHz, W/SSD16Gb, W/2G memory, 12V power supply. |
