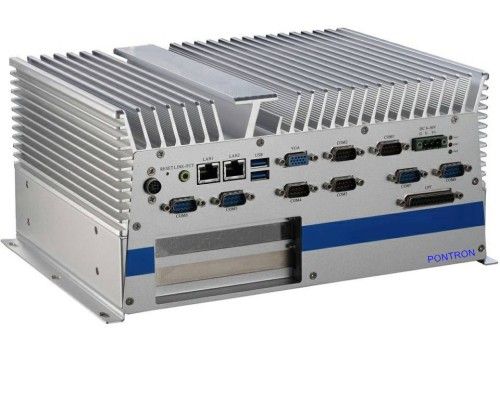

Industrial Box Pc′s with Intel I3 3210 2.5GHz, with 8*RS232/2*LAN
工业箱PC与Intel I3 3210 2.5GHz，与8 * RS232 / 2 * LAN
议价
加入意向| 型号。 | IBOX-qm77e |
| 证明 | ce，rohs，fcc |
| 商标 | pontron |
| 起源 | 中国 |
| 处理器类型 | 英特尔 |
| 类型 | 嵌入式系统 |
| 规范 | CE / FCC / CCC |
主要特征
·Al合金铝合金工业级无风扇设计Al-alloy
·Intel QM77芯片组芯片组 Chipset
·支持CPU Intel双核i3 / i5 / i7系列7系列7 Series
·2 * rj45 10/100 / 1000m lan000m lan000M LAN
。 8 * RS232（2 * 232/422/485可选）
·支持DC9〜36V电源供电r supply
介绍
IBOX-QM77E是工业级MINI盒式PC，支持英特尔CPU双核i3 / i5 / i7系列，英特尔QM77芯片组，配有1 * VGA，8 * RS232（2 * 232/422/485可选），2 * RJ45 10/100 / 1000M LAN，4 * USB2.0,2 * USB3.0，紧凑无风扇设计。散热非常好，外观美观，在整个市场上受欢迎。 Box PC帮助用户节省多功能空间，可用于智能车，环境控制，设备，工业线，运输，
自动化，通讯等
·Al合金铝合金工业级无风扇设计Al-alloy
·Intel QM77芯片组芯片组 Chipset
·支持CPU Intel双核i3 / i5 / i7系列7系列7 Series
·2 * rj45 10/100 / 1000m lan000m lan000M LAN
。 8 * RS232（2 * 232/422/485可选）
·支持DC9〜36V电源供电r supply
介绍
IBOX-QM77E是工业级MINI盒式PC，支持英特尔CPU双核i3 / i5 / i7系列，英特尔QM77芯片组，配有1 * VGA，8 * RS232（2 * 232/422/485可选），2 * RJ45 10/100 / 1000M LAN，4 * USB2.0,2 * USB3.0，紧凑无风扇设计。散热非常好，外观美观，在整个市场上受欢迎。 Box PC帮助用户节省多功能空间，可用于智能车，环境控制，设备，工业线，运输，
自动化，通讯等
| 材料 | 工业铝合金 |
| 中央处理器 | 英特尔双核i3 / i5 / i7系列 |
| 芯片组 | 英特尔QM77 |
| 记忆 | DDR3 2G / 4G / 8G（可选） |
| 存储 | 2.5'SATA 500G HDD，SSD：mSATA或2.5'16G / 32G（可选）G（可选） |
| I / O | 1 x vga |
| 8 x RS232（2 x 232/422/485可选） | |
| 2 x rj45 10/100 / 1000m lan | |
| 4 x usb2.0，2 x usb3.0 | |
| 1 x ps / 2 kb / m | |
| 1个音频线路输出 | |
| 1 x lpt | |
| WIFI（可选） | |
| 电源 | DC 9〜36V输入 |
| LED灯 | 1 x电源LED，1 x HDD LED，1 x警报 |
| 看门狗定时器 | 可编程超时中断或恢复 |
| 颜色 | 白（可选） |
| 口 | Windows 7，Windows XP，Windows XP Embedded，Linux |
| 尺寸 | 284×222.9×143.4mm |
| n.g | 5.5公斤 |
| 工作温度 | -10°C〜60°C 60°Ceg;C 60°C |
| 储存温度 | -20°C〜70°C 70°Ceg;C 70°C |
| 储存湿度 | 5〜90％@ 40°C（非冷凝））ing ) |
| 振动 | 5 grms / 5〜500Hz工作状态（SSD） 1 grms / 5〜500Hz工作状态（内置HDD模块） |
| 休克 | 50克峰值加速度（11ms持续时间）（SSD） 20 g峰值加速度（持续时间11ms）（内置HDD模块） |
| 订购信息 | IBOX-QM77E：迷你盒式电脑采用Intel CPU i3-3120M双核2.5GHz，W / SSD32G，W 4G内存，19V电源。 |
| Model NO. | IBOX-QM77E |
| Certification | CE, RoHS, FCC |
| Trademark | PONTRON |
| Origin | China |
| Processor Type | Intel |
| Type | Embedded Systems |
| Specification | CE/FCC/CCC |
Main Feature
· Industrial grade fanless design in Al-alloyAl-alloyAl-alloy
· Intel QM77 Chipset Chipset Chipset
· Support CPU Intel Dual Core i3/i5/i7 Series7 Series7 Series
· 2* RJ45 10/100/1000M LAN000M LAN000M LAN
. 8*RS232(2*232/422/485 Optional)
· Support DC9~36V power supplyr supplyr supply
Introduction
IBOX-QM77E is Industrial grade MINI box PC's, which supports Intel CPU Dual Core i3/i5/i7 Series, Intel QM77 Chipset, which comes with 1*VGA, 8*RS232(2*232/422/485 Optional), 2*RJ45 10/100/1000M LAN, 4*USB2.0, 2*USB3.0 with compacting Fanless design. It's very good heat scattering and beautiful appearance, being popular in the whole market. Box PC help user to save space with multi-functions which can be used to Intelligent car, Environmental control, equipment, industrial line, transportation,
Automation, communication etc.
· Industrial grade fanless design in Al-alloyAl-alloyAl-alloy
· Intel QM77 Chipset Chipset Chipset
· Support CPU Intel Dual Core i3/i5/i7 Series7 Series7 Series
· 2* RJ45 10/100/1000M LAN000M LAN000M LAN
. 8*RS232(2*232/422/485 Optional)
· Support DC9~36V power supplyr supplyr supply
Introduction
IBOX-QM77E is Industrial grade MINI box PC's, which supports Intel CPU Dual Core i3/i5/i7 Series, Intel QM77 Chipset, which comes with 1*VGA, 8*RS232(2*232/422/485 Optional), 2*RJ45 10/100/1000M LAN, 4*USB2.0, 2*USB3.0 with compacting Fanless design. It's very good heat scattering and beautiful appearance, being popular in the whole market. Box PC help user to save space with multi-functions which can be used to Intelligent car, Environmental control, equipment, industrial line, transportation,
Automation, communication etc.
| Material | Industrial Al-alloy |
| CPU | Intel Dual Core i3/i5/i7 Series |
| Chipset | Intel QM77 |
| Memory | DDR3 2G/4G/8G(optional) |
| Storage | 2.5'SATA 500G HDD,SSD: mSATA or 2.5'16G/32G(optional)G(optional) |
| I/O | 1 x VGA |
| 8 x RS232(2 x 232/422/485 Optional) | |
| 2 x RJ45 10/100/1000M LAN | |
| 4 x USB2.0, 2 x USB3.0 | |
| 1 x PS/2 KB/M | |
| 1 x Audio Line Out | |
| 1 x LPT | |
| WIFI(Optional) | |
| Power supply | DC 9~36V Input |
| LED light | 1 x Power LED,1 x HDD LED,1 x Alert |
| Watchdog timer | Programmable overtime interrupt or recovery |
| Color | White(optional) |
| OS | Windows 7,Windows XP, Windows XP Embedded,Linux |
| Dimension | 284 x 222.9 x 143.4mm |
| N.G | 5.5KG |
| Operating Temperature | -10°C ~ 60°C 60°Ceg;C 60°C |
| Storage Temperature | -20°C ~ 70°C 70°Ceg;C 70°C |
| Storage Humidity | 5~90%@40°C(non-condensing )ing )ing ) |
| Vibration | 5 grms / 5 ~ 500Hz in working status(SSD) 1 grms / 5 ~ 500Hz in working status(Built-in HDD module) |
| Shock | 50 g peak acceleration(11ms duration)(SSD) 20 g peak acceleration(11ms duration)(Built-in HDD module) |
| Ordering Information | IBOX-QM77E:Mini box PC's with Intel CPU i3-3120M Dual Core 2.5GHz, W/SSD32G, W 4G memory, 19V power supply. |
