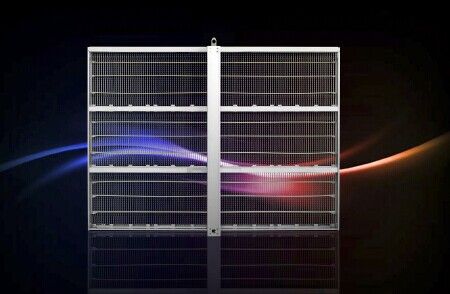

Beautiful Fashion Building Wall Decoration Glass LED Screen

Beautiful Fashion Building Wall Decoration Glass LED Screen

美丽的时尚大厦墙壁装饰玻璃LED屏幕

10+
2000 USD
200+
1700 USD

加入意向
型号。 P15.625
显示功能 视频显示
像素间距 15.625
像素密度 4096
系统操作平台 赢xp
亮度 6500
寿命 100000小时
工厂价格 可得到
规范 ce,rohs,ccc,iso9001
管芯颜色 饱满的色彩
IP等级 43
像素配置 1r1pg1pb
扫描模式 静态扫描
显示类型 LED视频显示
证明 ce,ccc
保证 2年
商标 率领英雄
起源 中国广东省深圳市
美丽时尚建筑墙面装饰玻璃led屏
规范:

零件号

英雄ods4f

解析度

32(H)×8(v)的ES; 8(v)的es;8(V)

像素间距

15.625毫米

LED配置

1r1pg1pb smd3在1

像素密度

4096像素/平方米

模块尺寸

500 *125毫米

驱动IC

my9221qd

驾驶方法

静态扫描

机柜重量

16公斤/平方米。

机械等级

悬挂重量支持

2T

表面平整度

0.1毫米

光学等级

亮度

6500cd / m2

视角

140°/ 140°/ 140°deg;/140°

灰度

16位

显示颜色

281万亿

亮度调整

0~100%

电源

操作电源

110v / 60hz,220v / 50hz

最大。能量消耗

720W / m2

平均功耗

288W / m2

控制系统

控制模式

DVI同步显示控制PC

帧更新频率

60〜85fps

屏幕刷新频率

> 3200Hz00Hz

伽玛校正

-5.0~+5.0

支持输入

复合,S视频,组件,VGA,DVI,HDMI,HD_SDI

控制距离

以太网电缆<120m or Fiber Optic<10Kmlt;10Km

支持VGA模式

1024×768,1280×1024,1600×1200,1920×1280mes; 1200,1920×1280s;1280mes;1200, 1920×1280

亮度校正

像素,模块,机柜

环境的

工作温度

-20°〜+ 60°〜+ 60°deg;~+60°

工作湿度

10〜95%rh

使用寿命

100000小时

MTBF

万小时

防护等级

~

失控率

<0.02%

描述:
良好的可视化
基于玻璃的设计允许光线穿过玻璃板,而不会对建筑结构造成任何影响。玻璃屏幕的透明度可高达85%。
2.超薄,超轻。
厚度可达1cm,重量可达7kg /
高亮度,高清晰度。
亮度可达6500 cd /。
4.维护方便。
可以从内部维护,更安全,更方便。
5.整个建筑物的照明费用。
除了良好的广告效果,LED玻璃显示屏还有助于照明玻璃墙,从而使玻璃墙更具吸引力,节省了大量的照明成本。
6.使用范围。
无论玻璃墙在哪里,都可以安装玻璃LED显示屏。如银行,超市,戏剧,商业街,酒店,公民建筑,地标建筑等。
应用:
广泛应用于玻璃幕墙场所,如银行,商场,剧院,商业街,商店,酒店,市政公共建筑,地标等广告。
包装运输
专业包装:木箱或飞行箱。
包装方式可以防止LED屏幕在运输过程中的碰撞,如损坏等。
无故解决您在运输中的烦恼。
关于英雄
8年的LED屏幕经验,我厂具有加工,研发LED显示屏的能力,保证了产品的多样性。严格的质量控制流程,确保led显示屏具有高品质。
售后服务
1)保修:
免费解决质量问题,确保设备在保修期内正常运行。在任何时候,我们承担所有的责任,当问题来自产品本身。
2)免费维护:
保修期内免费保修。
仅在保修期内收取原材料成本,提供最低价格的备件和维修服务。
3)快速反应:
2小时内响应,24小时内无人为故障,一般故障解决,48小时内可接受故障解决。
4)免费支持:
通过电话或网络实时提供服务支持,或者借助网络进行远程调试支持(软件),解决问题。
有关p10 led显示屏的更多led信息,高性能
美丽时尚建筑墙面装饰玻璃led屏
Model NO. P15.625
Display Function Video Display
Pixel Pitch 15.625
Pixel Density 4096
System Operating Platform WIN XP
Brightness 6500
Lifespan 100,000hours
Factory Price Available
Specification CE, ROHS, CCC, ISO9001
Tube Chip Color Full Color
IP Rating 43
Pixel Configuration 1r1pg1pb
Scanning Mode Static Scan
Display Type LED Video Display
Certification CE, CCC
Warranty 2 Years
Trademark LED-HERO
Origin Shenzhen City, Guangdong Province, China
Beautiful fashion building wall decoration glass led screen
specification:

Part Number

HERO-ODS4F

Resolution

32(H)×8(V)es;8(V)es;8(V)

Pixel Pitch

15.625mm

LED Configuration

1R1PG1PB SMD3 IN 1

Pixel Density

4096 pixels/ m2

Module Size

500*125mm

Driving IC

MY9221QD

Driving Method

Static scan

Cabinet Weight

16kg/sq.m.

Mechanical Ratings

Hanging Weight Support

2T

Surface Flatness

0.1mm

Optical Ratings

Brightness

6500cd/ m2

View Angle

140°/140°/140°deg;/140°

Gray Scale

16 bits

Display COLOR

281 Trillion

Brightness Adjustment

0~100%

Power Supply

Operation Power

110V /60Hz ,220V/50Hz

Max. Power Consumption

720W/ m2

Average Power Consumption

288W/ m2

Control System

Control Mode

Synchronous display with control PC by DVI

Frame Update Frequency

60~85fps

Screen Refresh Frequency

﹥3200Hz00Hz

Gamma Correction

-5.0~+5.0

Support Input

Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

Control Distance

Ethernet cable<120m or Fiber Optic<10Kmlt;10Km

Support VGA Mode

1024×768, 1280×1024, 1600×1200, 1920×1280mes;1200, 1920×1280s;1280mes;1200, 1920×1280

Brightness Correction

Pixel, Module, Cabinet

Environmental

Operating Temperature

-20°~+60°~+60°deg;~+60°

Operating Humidity

10~95% RH

Operating Life

100,000hours

MTBF

10000hours

Protection Level

~

Out of Control Rate

<0.02%

Description:
1.Good visualization
Glass-based design allows the light to pass through the glass without any influence to the building structure around.Transparency of the glass screen can up to 85%.
2.Ultra-thin, and ultra-light.
The thick can up to 1cm, and the weight can up to 7kg/
High brightness, and high definition.
The brightness can up to 6500 cd/.
4.Easy and convenient maintenance.
It can be maintained from inside, safer and more convenient.
5.Saving lighting costs of the whole building.
Besides good advertising effect, LED glass display also helps lighting the glass wall, thus makes the glass wall more attractive and saving a lot lighting cost.
6.Wide use range.
Wherever the glass wall is, glass LED display can be installed. Such as bank, supermarket, theater, business street, hotel, public civic buildings, and landmark buildings, etc.
Applications:
Widely used in glass curtain wall places, such as banks, shopping malls, theaters, commercial streets, stores, hotels, municipal public building,landmarks and other advertising.
Packing and transportation
Professional packaging:wooden box or flight case.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Faultlessly solve your worries in the transportation.
About Hero
8-year's experience in LED screen, our factory has the ability of processing, researching and developing led display to ensure the prolificacy.A strict quality control process to make sure the led display screens is with high quality.
After-sale service
1) Warranty:
Free to solve the quality problems to ensure that equipment normal operation in the warranty period . At any time, we bear all the responsibility, when the problem is from the product itself.
2) Free maintenance:
Free warranty in the warranty period.
Only charge the cost of raw materials, provide spare parts and maintenance services for the lowest price after the warranty period.
3)quick response:
Response within 2 hours, non-artificial, general fault solution within 24 hours, and acceptable failure resolved within 48 hours.
4) Free support:
Through telephone or network to provide service support in real time, or with the help of a network for remote debugging support (software), to solve the problem.
For more led information about p10 led display moudle with high performance
Beautiful fashion building wall decoration glass led screen
