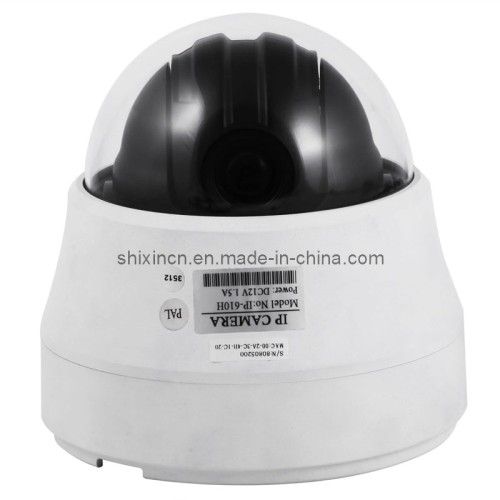

H. 264 PTZ Camera with High Speed 100X Zoom Lens Mini Style
H. 264 PTZ相机与高速100X变焦镜头迷你风格
| 型号。 | IP-610H |
| 传感器 | CCD |
| 技术 | 摇摄/倾斜/缩放 |
| 有效距离 | ≧30米 |
| 水平分辨率 | 800TVL |
| 迷你尺寸 | 4'住房 |
| 压缩 | H.264 |
| 运输包装 | 自然包装 |
| 起源 | 中国深圳 |
| 类型 | 网络摄像机 |
| 速度 | 高速球 |
| 特征 | 迷你尺寸，高清晰度，自动BLC |
| 焦距 | 变焦镜头 |
| 传感器尺寸 | 1/3英寸 |
| 图像传感器 | 1/3“超级ccdhad ccd |
| 降噪 | 与Ssnr三星降噪芯片 |
| 规范 | 240 * 185 *180毫米 |
迷你高速球型摄像机PTZ摄像机
内置缩放100倍（10倍光学变焦，10倍数码变焦）
高分辨率480TVL;最小照度0.1Lux
圆360°，倾斜90°连续旋转自动翻转，人性化人性化 Humanize
焦点和速度比例
支持128个预设（标题可调），
4游览，8可编程区域，
4模式，记录时间超过180秒; 4扫描，
支持相机扫描2点之间。
内置OSD菜单，信息和参数可更改，还可以设置和调整预设，巡航，平移和图案扫描等。 etc.
公园动作功能，自动呼叫预置或启动巡视，模式，扫描和显示区域在空闲时间。 （相机还支持缩放，倾斜操作）
屏幕显示平移/倾斜位置，缩放等
通过RS485 / SDLC / COAX通讯内置多协议：PELCO-D，PELCO-P等IP65全天防护盖
内置缩放100倍（10倍光学变焦，10倍数码变焦）
高分辨率480TVL;最小照度0.1Lux
圆360°，倾斜90°连续旋转自动翻转，人性化人性化 Humanize
焦点和速度比例
支持128个预设（标题可调），
4游览，8可编程区域，
4模式，记录时间超过180秒; 4扫描，
支持相机扫描2点之间。
内置OSD菜单，信息和参数可更改，还可以设置和调整预设，巡航，平移和图案扫描等。 etc.
公园动作功能，自动呼叫预置或启动巡视，模式，扫描和显示区域在空闲时间。 （相机还支持缩放，倾斜操作）
屏幕显示平移/倾斜位置，缩放等
通过RS485 / SDLC / COAX通讯内置多协议：PELCO-D，PELCO-P等IP65全天防护盖
| 规范 | ||
| 10X光学自动/手动变焦 | 图像传感器 | 1 / 3super有ccdad ccd |
| 焦距 | F1.8（W）-3.1（T）f = 5.5-55mm | |
| 最低照度 | 当天：1Lux;晚上：0.1Lux | |
| 注意 | 彩色切换到黑/白（ICR） 采用SSNR三星降噪芯片 内置OSD 迷你尺寸 | |
| 压缩 | H.264 | |
| 音频格式 | G..711 | |
| 图像分辨率 | d1（720 * 576）halfd1（720 * 288）cif（352 * 288）qcif（176 * 144） | |
| 帧频 | @ 30fps的D1（NTSC） 25fps的@ D1（PAL） | |
| 视频端口 | 1路视频输出 | |
| 音频 | 1声道音频输入 | |
| 软件 | WEB IE浏览器 | IE 6.0以上 |
| 安全 | 密码保护，3级访问者 | |
| 硬件 | 中央处理器 | 32位arm9 risc内核 |
| 操作系统 | EmbeddedLinuxsystem | |
| DDR | 32M | |
| 闪存 | 8M | |
| 互联网 | 网口 | 10 / 100M以太网端口（RJ45） |
| 网络协议 | TCP / ip.udp.http.dhcp.pppoe.ftp.upnp.ddns.smtp.ntp.tftp ONVIF | |
| 云台 | 旋转角度 | 水平360度连续旋转;垂直0-90，带自动 |
| 旋转速度 | 平底锅：0.4〜320°/ s倾斜度：0.4〜130°/ s30°/ sg;/s30°/s | |
| 设置 | 内置解码板和协议，无需再次拨号即可直接使用 | |
| 预置 | 128个单位 | |
| DDNS | 有专业的Viewipcam.net，3322.org等多种国际着名服务器供您选择 | |
| 用户管理 | 管理员，普通用户，匿名用户（最多浏览器：10） | |
| 视频调整 | 亮度，对比度和饱和度 | |
| 带宽 | 通过调整压缩，帧和分辨率，可以用于不同的带宽 | |
| 运动检测 | 运动检测报警可以将图片发送到指定的电子邮件或将AV视频发送到指定的FTP。您可以根据需要设置闹钟时间和区域 | |
| 方法远程 | 预设/巡航/水平扫描/有限扫描 | |
| 一般 | 电源 | 输入AC 100-240 V 50 / 60Hz 输出DC 12V / 1500mA |
| 工作环境 | 室外温度：-40- + 60°C; Cdeg;C 室内温度：-10- + 50℃; Cdeg;C 湿度：20-90％ | |
| 功率 | 室内：12w，室外：50w | |
| 尺寸/净重 | 142 * 142 * 138mm / 1.4KG | |
| 包装尺寸/毛重 | 240 * 185 *180毫米/ 1.5KG | |
| Model NO. | IP-610H |
| Sensor | CCD |
| Technology | Pan / Tilt / Zoom |
| Effective Distance | ≧30m |
| Horizontal Resolution | 800tvl |
| Mini Size | 4' HousingHousing |
| Compression | H.264 |
| Transport Package | Natural Package |
| Origin | Shenzhen, China |
| Type | IP Camera |
| Speed | High-speed Dome |
| Feature | Mini Size, High Definition, Auto BLC |
| Focal Length | Zoom Lens |
| Sensor Size | 1/3 inch |
| Image Sensor | 1/3' Super Had CCDHad CCD |
| Noise Reduction | with Ssnr Samsung Noise Reduction Chip |
| Specification | 240*185*180mm |
Mini High Speed Dome IP Camera PTZ Camera
Built-in Zoom with 100x (10x Optical Zoom, 10x Digital Zoom)
High Resolutions 480TVL; Min Illumination 0.1Lux
Pan 360° , Tilt 90° Continuously Rotation with Auto-Flip, and Humanized Humanize Humanize
Focus and Speed Proportion
Support 128 presets (Titles adjustable),
4 Tours, 8 Programmable zones,
4 Pattern with record time than 180 seconds; 4 Scan,
Support Camera Scanning Repeatedly Between 2 Points.
Built-in OSD Menu, Information and Parameter Changeable, also can set and adjust presets, cruise, pan & pattern scan etc.n etc. etc.
Park Action Function, Auto-calling Presets or Starting-up Tour, Pattern, Scan and Display Areas during Idle Time. ( Camera still support Zoom, Tilt operation)
Screen Displaying Pan/Tilt Position, Zoom etc.
Communications via RS485/SDLC/COAX Built-in Multi Protocols: PELCO-D, PELCO-P etc. IP65 All-day Defending Cover
Built-in Zoom with 100x (10x Optical Zoom, 10x Digital Zoom)
High Resolutions 480TVL; Min Illumination 0.1Lux
Pan 360° , Tilt 90° Continuously Rotation with Auto-Flip, and Humanized Humanize Humanize
Focus and Speed Proportion
Support 128 presets (Titles adjustable),
4 Tours, 8 Programmable zones,
4 Pattern with record time than 180 seconds; 4 Scan,
Support Camera Scanning Repeatedly Between 2 Points.
Built-in OSD Menu, Information and Parameter Changeable, also can set and adjust presets, cruise, pan & pattern scan etc.n etc. etc.
Park Action Function, Auto-calling Presets or Starting-up Tour, Pattern, Scan and Display Areas during Idle Time. ( Camera still support Zoom, Tilt operation)
Screen Displaying Pan/Tilt Position, Zoom etc.
Communications via RS485/SDLC/COAX Built-in Multi Protocols: PELCO-D, PELCO-P etc. IP65 All-day Defending Cover
| Specification | ||
| 10X optical Auto/Manual Zoom | Image Sensor | 1/3'Super HAD CCDAD CCD |
| Focal Length | F1.8(W)- 3.1(T) f=5.5- 55mm | |
| Minimum Illumination | In day:1Lux; In night: 0.1Lux | |
| Note | Color switch to Black/White (ICR) With SSNR Samsung Noise Reduction chip Built-in OSD Mini Dimensions | |
| Compression | H.264 | |
| Audio Format | G..711 | |
| Image Resolution | D1(720*576) HalfD1(720*288) CIF(352*288) QCIF(176*144) | |
| Frame Frequency | 30fps@D1(NTSC) 25fps@D1(PAL) | |
| Video port | 1 ch video output | |
| Audio | 1 ch audio input | |
| Software | WEB IE Browser | IE 6.0 or above |
| Safety | Password protection, 3 levels visitors | |
| Hardware | CPU | 32 Bit ARM9 RISC Core |
| Operate System | EmbeddedLinuxsystem | |
| DDR | 32M | |
| Flash memory | 8M | |
| Internet | Net port | 10/100M Ethernet port (RJ45) |
| Net protocol | TCP/IP.UDP.HTTP.DHCP.PPPoE.FTP.UPNP.DDNS.SMTP.NTP.TFTP ONVIF | |
| PTZ | Rotation angle | Horizontal 360 Continuous Rotation; Vertical 0-90, with Auto |
| Rotation speed | Pan: 0.4~320°/s Tilt: 0.4~130°/s30°/sg;/s30°/s | |
| Settings | Built-in decoder board and protocol, no need to dial code again which means you can use directly | |
| Preset | 128 Units | |
| DDNS | Have professional Viewipcam.net, 3322.organd many other international famous server for your choosing | |
| User management | Administrator, common user, anonymous user.(Max. viewer: 10) | |
| video adjustment | brightness, contrast and saturation | |
| Bandwidth | By adjusting the compression, frame and resolution, it can be used to different bandwidth | |
| Motion detection | Motion detection alarm can send pictures to the appointed Email or send AV video to appointed FTP. You can setup the alarm time and area as you like | |
| Method remote | Preset/Cruise/Horizontal Scan/Limited Scan | |
| General | Power supply | Input AC 100-240 V 50/60Hz Output DC 12V/1500mA |
| Work environment | Outdoor Temperature:-40- +60°Cdeg;Cdeg;C Indoor Temperature:-10- +50°Cdeg;Cdeg;C Humidity:20- 90% | |
| Power | Indoor:12w, Outdoor: 50w | |
| Dimension/ Net Weight | 142*142*138mm /1.4KG | |
| Package Dimension/ Gross Weight | 240*185*180mm/1.5KG | |
