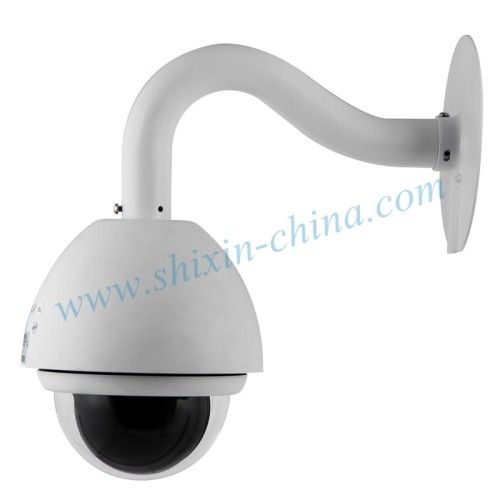

10X Optical/Digital Zoom Had 480tvl CCD Dome IP Camera (IP-650H)
10X光学/数字变焦有480tvl CCD球机网络摄像机（IP-650H）
| 型号。 | IP-650H |
| 传感器 | CCD |
| 技术 | 摇摄/倾斜/缩放 |
| 焦距 | 变焦镜头 |
| 对焦范围 | 网络摄像机 |
| 产品名称 | 有480tvl CCD圆顶IP摄像机 |
| 包装尺寸 | 340mm（L）X335mm（W）X465mm（H） |
| 工作环境 | 温度：-10℃〜55℃55℃; C 55° C |
| 支持 | ONVIF |
| 放大 | 10倍光学变焦/ 10倍数码变焦 |
| 商标 | 世新 |
| 规范 | ce，fcc，rohs |
| HS编码 | 8529904100 |
| 类型 | 网络摄像机 |
| 速度 | 高速球 |
| 特征 | 防破坏，防水/防水，高清晰度，自动BLC |
| 水平分辨率 | 420/520/650/700 Tvl |
| 传感器尺寸 | 1/3英寸 |
| 重量 | 5.1公斤 |
| 功率 | 10.8W |
| 图像传感器 | 1/3 Sony Exview有CCD |
| 帧率 | 25fps的 |
| 平移/倾斜 | 360度/ 90degree |
| 运输包装 | 标准包装 |
| 起源 | 中国深圳 |
10X光学/数字变焦HAD 480TVL CCD球型网络摄像机（IP-650H）
与1/3 Sony Exview有CCD相机，安全摄像头
高速穹顶PTZ摄像机（7'，9'外壳供选择）选择）
网络摄像机，安全摄像机，防水摄像机安装和安装在墙壁或天花板上非常简单
水平分辨率480 TVL
1/4索尼Exview HAD CCD H.264压缩
平底锅：360°，倾斜：90°：90°deg;: 90°
对焦：自动/手动光圈：自动/手动
缩放：F = 4.1-73.8mm，10倍光学变焦，10倍数码变焦
视频输出：VBS：75V时为1.0Vpp
通讯：EIA / RS-485，曼彻斯特码，BI-BPASE代码，作为同轴控制
巡逻：6（可编程）预设：128
自我记忆功能
操作方便
如有任何问题，请随时与我们联系。
与1/3 Sony Exview有CCD相机，安全摄像头
高速穹顶PTZ摄像机（7'，9'外壳供选择）选择）
网络摄像机，安全摄像机，防水摄像机安装和安装在墙壁或天花板上非常简单
水平分辨率480 TVL
1/4索尼Exview HAD CCD H.264压缩
平底锅：360°，倾斜：90°：90°deg;: 90°
对焦：自动/手动光圈：自动/手动
缩放：F = 4.1-73.8mm，10倍光学变焦，10倍数码变焦
视频输出：VBS：75V时为1.0Vpp
通讯：EIA / RS-485，曼彻斯特码，BI-BPASE代码，作为同轴控制
巡逻：6（可编程）预设：128
自我记忆功能
操作方便
| 序列号。 | 类型 | 规范 |
| 22X一体机 相机 | 图像传感器 | 1/3索尼exview有ccd |
| 焦点 | 3.9 - 85.8mm | |
| 闵。照明 | 0.3lux / f1.6 | |
| 视频 | 压缩格式 | H. 264 |
| 解析度 | d1（720 * 576）halfd1（720 * 288）cif（352 * 288）qcif（176 * 144） | |
| 每秒最大帧数 | @ 30fps的D1（NTSC） 25fps的@ D1（PAL） | |
| 音频 | 音频编码格式 | G. 711 |
| 软件 | WEB IE浏览器 | IE 6.0以上 |
| 安全 | 密码保护，3级访问者 | |
| 硬件 | 中央处理器 | 32位arm9 risc内核 |
| 操作系统 | 嵌入式eCos系统 | |
| DDR | 256M | |
| 闪存 | 64M | |
| 互联网 | 网口 | 10 / 100M以太网端口（RJ45） |
| 网络协议 | TCP / IP。 UDP。 HTTP。 DHCP。 PPPoE协议。 FTP。 UPnP的。 DDNS。 SMTP。 NTP。 TFTP | |
| 云台 | 旋转角度 | 平底锅：360°，倾斜：180°自动旋转 rotation |
| 旋转速度 | 平底锅：0.5-300°/ s倾斜度：0.5-180°/ s0°/ s; /s0° /s | |
| 设置 | 内置解码板和协议，无需再次拨号即可直接使用 | |
| 预设线 | 6（可编程），每行可以设置16个预设。 | |
| 预置 | 最多128个预设，重新连接电源时具有数据存储器 | |
| 功能 | OSD | 支持 |
| DDNS | 有专业的Viewipcam。网等众多国际知名服务器供您选择 | |
| 用户管理 | 管理员，普通用户，匿名用户。 （最多观看者：10） | |
| 视频调整 | 亮度，对比度和饱和度 | |
| 带宽 | 通过调整压缩，帧和分辨率，可以用于不同的带宽 | |
| 运动检测 | 运动检测报警可以将图片发送到指定的电子邮件或将AV视频发送到指定的FTP。您可以根据需要设置闹钟时间和区域 | |
| 一般 | 电源 | 输入AC 220 V 50Hz 输出AC 24V / 3000mA |
| 工作环境 | 温度：-10°C至55°C湿度：0％ - 80％RHG - 80％RHG - 80%RHG | |
| 功率 | 10.8W | |
| 包装尺寸 | 340mm（L）X335mm（W）X465mm（H） | |
| 重量 | 5.1公斤 |
如有任何问题，请随时与我们联系。
| Model NO. | IP-650H |
| Sensor | CCD |
| Technology | Pan / Tilt / Zoom |
| Focal Length | Zoom Lens |
| Focus Range | IP Camera |
| Product Name | Had 480tvl CCD Dome IP Camera |
| Packing Dimension | 340mm(L) X335mm(W) X465mm(H) |
| Work Environment | Temperature: -10° C- 55° C 55° C; C 55° C |
| Support | Onvif |
| Zoom | 10X Optical Zoom/10X Digital Zoom |
| Trademark | SHIXIN |
| Specification | CE, FCC, RoHS |
| HS Code | 8529904100 |
| Type | IP Camera |
| Speed | High-speed Dome |
| Feature | Vandal-proof, Waterproof / Weatherproof, High Definition, Auto BLC |
| Horizontal Resolution | 420/520/650/700 Tvl |
| Sensor Size | 1/3 inch |
| Weight | 5.1kg |
| Power | 10.8W |
| Image Sensor | 1/3 Sony Exview Had CCD |
| Frame Rate | 25fps |
| Pan/Tilt | 360degree/90degree |
| Transport Package | in Standard Packing |
| Origin | Shenzhen, China |
10X Optical/digital zoom HAD 480TVL CCD Dome IP Camera (IP-650H)
With 1/3 Sony Exview Had CCD Camera, Security Camera
High speed Dome PTZ camera (7', 9' housing for choosing)r choosing)
IP Camera, Security Camera, Waterproof Camera is very simple to install and mounts on wall or ceiling
Horizontal resolution 480 TVL
1/4 Sony Exview HAD CCD H. 264 compression
Pan: 360° , Tilt: 90°: 90°deg;: 90°
Focus: AUTO/Manual Iris: AUTO/Manual
Zoom: F=4.1- 73.8mm, 10X Optical Zoom, 10X digital zoom
Video Output: VBS: 1.0Vpp at 75 ohm
Communication: EIA/RS-485, Manchester code, BI-BPASE code, as coaxial control
Patrol: 6(programable) Preset: 128
Self-memory function
Easy to operate
If there is any question, please don't hesitate to contact us.
With 1/3 Sony Exview Had CCD Camera, Security Camera
High speed Dome PTZ camera (7', 9' housing for choosing)r choosing)
IP Camera, Security Camera, Waterproof Camera is very simple to install and mounts on wall or ceiling
Horizontal resolution 480 TVL
1/4 Sony Exview HAD CCD H. 264 compression
Pan: 360° , Tilt: 90°: 90°deg;: 90°
Focus: AUTO/Manual Iris: AUTO/Manual
Zoom: F=4.1- 73.8mm, 10X Optical Zoom, 10X digital zoom
Video Output: VBS: 1.0Vpp at 75 ohm
Communication: EIA/RS-485, Manchester code, BI-BPASE code, as coaxial control
Patrol: 6(programable) Preset: 128
Self-memory function
Easy to operate
| Serial no. | type | specification |
| 22X all-in-one camera | Image Sensor | 1/3 SONY Exview HAD CCD |
| focus | 3.9 - 85.8mm | |
| Min. illumination | 0.3LUX / F1.6 | |
| Video | Compressed format | H. 264 |
| Resolution | D1(720*576) HalfD1(720*288) CIF(352*288) QCIF(176*144) | |
| Max frames per second | 30fps@D1(NTSC) 25fps@D1(PAL) | |
| Audio | Audio encoding format | G. 711 |
| Software | WEB IE Browser | IE 6.0 or higher |
| Security | Password protection, 3 levels visitors | |
| Hardware | CPU | 32 Bit ARM9 RISC Core |
| Operate System | Embedded eCos system | |
| DDR | 256M | |
| Flash memory | 64M | |
| Internet | Net port | 10/100M Ethernet port (RJ45) |
| Net protocol | TCP/IP. UDP. HTTP. DHCP. PPPoE. FTP. UPNP. DDNS. SMTP. NTP. TFTP | |
| PTZ | Rotation angle | Pan: 360° , Tilt: 180° auto rotation rotation rotation |
| Rotation speed | Pan: 0.5-300° /s Tilt: 0.5-180° /s0° /s; /s0° /s | |
| Settings | Built-in decoder board and protocol, no need to dial code again which means you can use directly | |
| Preset line | 6(programable), each line can set 16 presets. | |
| Preset | Up to 128 presets, has the data memory when you reconnect to power | |
| Function | OSD | support |
| DDNS | Have professional Viewipcam. net and many other international famous server for your choosing | |
| User management | Administrator, common user, anonymous user. (Max. viewer: 10) | |
| video adjustment | brightness, contrast and saturation | |
| Bandwidth | By adjusting the compression, frame and resolution, it can be used to different bandwidth | |
| Motion detection | Motion detection alarm can send pictures to the appointed Email or send AV video to appointed FTP. You can setup the alarm time and area as you like | |
| General | Power supply | Input AC 220 V 50Hz Output AC 24V/3000mA |
| Work Environment | Temperature: -10° C- 55° C Humidity: 0% - 80%RHG - 80%RHG - 80%RHG | |
| Power | 10.8W | |
| Packing dimension | 340mm(L) X335mm(W) X465mm(H) | |
| Weight | 5.1Kg |
If there is any question, please don't hesitate to contact us.
