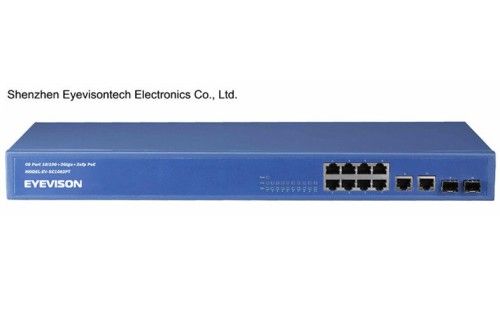

8CH Poe Network Switch Workgroup Brand 10 Gigabit 80.2af / 80.2at with Fiber Port EV-Sc1082PT
8CH Poe网络交换机工作组品牌10千兆80.2af / 80.2at与光纤端口EV-Sc1082PT
| 型号。 | EV-sc1082pt |
| 端口 | 8 |
| 应用 | 企业，个人 |
| 转移率 | 10/100 / 1000Mbps的 |
| 网络 | WCDMA |
| 建筑 | 共享内存 |
| 规范 | ce，fcc，rohs |
| 类型 | 有线 |
| 网站 | 中间节点路由器 |
| 火墙 | 火墙 |
| 港口结构 | 模块化 |
| 性能 | 线路速率路由器 |
| 商标 | eyevison |
| 起源 | 中国深圳 |
8端口POE网络交换机工作组品牌锐捷10千兆80.2af / 80.2at
特征：
8端口，2端口10/100 / 1000M rj45和SFP
完全ieee80.2af /标准编译器
支持每个港口的poe最高可达15.4w
自动检测电源设备（PD）
安全可靠的电源到端子装置
即插即用，无需配置uired
规范：
POE | poe港口 | 1-8 |
POE标准 | ieee802.3af ieee802.3at | |
POE电源引脚 | endspan：1/2（+）3/6（ - ） | |
POE电源 | 30w（at），15.4w（af） | |
RJ45 | Rj45端口 | 1-9 |
速度 | 1-8 10m / 100m 9 10m / 100m / 1000m | |
SFP | SFP | 9-10 |
速度 | 1.25G | |
性能参数 | 背板带宽 | 8.8G |
网络延迟 | <20 ms0 ms | |
分组转发速率 | 6.5Mpps | |
包缓冲存储器 | 256KB | |
地址数据库大小 | 8000 | |
平均失败的时间 | 5年 | |
网络协议 | 网络协议 | ieee 802.3i 10base-t ieee 802.3u 100base-tx IEEE 802.3x流量控制 ieee 802.3ab 1000baset ieee 802.3z 1000basex |
POE标准 | ieee802.3af ieee802.3at | |
电力支持 | 电源 | 120w |
电源电压 | 48V | |
特点 | FPC | |
尺寸 | 长×宽×高 | 440 * 278 *44毫米 |
重量 | 2.5公斤 | |
环境指标 | 操作温度 | -20°-70°C（32°104°F）°104°f）° F)° 104° F) |
储存温度 | -40°-85°C（14°158°F）°158°f）° F)° 158° F) | |
工作湿度 | 10％90％，无结露 | |
工作高度 | 海拔3000米（10000英尺） | |
辐射和安全 | 辐射 | CE标志，商业 FCC Part 15 Class A en 55022（cispr 22），class a |
安全 | en 55024 | |
保证 | 开关 | 1年 |
包装 | 包装内容 | 开关 交流电源线 产品规格 保修卡证书 |
介绍：
8端口标准POE交换机通过单个Cat-5电缆使用以太网供电（PoE）为无线接入点和IP摄像机提供电源和数据。 8个以太网端口可用于任何10/100 Mbps链路，并可提供行业标准的IEEE 802.3af电源。高级自动检测功能仅供802.3af供电设备使用，因此无需担心损坏专有PoE或非PoE设备。此外，当PoE设备断开连接时，它会中断电源。标准自动确定PoE要求，速度，双工和电缆类型，使用自动检测方便可靠。
轻松安装布线
通过以太网的数据和电力从一个单元，poe开关应减少电缆，并消除在墙壁，天花板或任何不可达的地方专用电源插座的需要。导线同时承载数据和降低安装成本的功率，简化了安装工作，消除了对电工或延长线的需求。这是扩展您的家庭或办公室网络的绝佳选择。
型号：EV-sc1082pt
| Model NO. | EV-SC1082PT |
| Ports | 8 |
| Application | Enterprise, Personal |
| Transfer Rate | 10/100/1000Mbps |
| Network | WCDMA |
| Architecture | Shared Memory |
| Specification | CE, FCC, ROHS |
| Type | Wired |
| Network Site | Intermediate Node Routers |
| Firewall | Firewall |
| Port Structure | Modular |
| Performance | Line-Rate Router |
| Trademark | EYEVISON |
| Origin | Shenzhen, China |
8 Port POE Network Switch Workgroup Brand Ruijie 10 Gigabit 80.2af / 80.2at
Features:
8 ports with poe,2 ports 10/100/1000M rj45 and SFP
fully ieee80.2af/at standard compilant
support poe poer up to 15.4w for each port
auto detect powered device(PD)
safe and reliable power to ech of poe end device
plug&play,no configuration requireduireduired
Specification:
POE | POE PORT | 1-8 |
POE Standard | IEEE802.3AF IEEE802.3AT | |
POE power pin | endspan:1/2(+) 3/6(-) | |
POE power | 30w(at), 15.4w(af) | |
RJ45 | Rj45 port | 1-9 |
speed | 1-8 10M/100M 9 10M/100M/1000M | |
SFP | SFP | 9-10 |
speed | 1.25G | |
performance parameter | Backplane bandwidth | 8.8G |
network delay | <20 ms0 ms | |
Packet forwarding rate | 6.5Mpps | |
The packet buffer memory | 256KB | |
The address database size | 8000 | |
The mean time to failure | 5 years | |
network protocol | network protocol | IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3ab 1000BASET IEEE 802.3z 1000BASEX |
POE standard | IEEE802.3AF IEEE802.3AT | |
Power support | power supply | 120w |
Power voltage | 48V | |
characteristics | FPC | |
size | Long*wide*high | 440*278*44mm |
weight | 2.5kg | |
Environmental specifications | operation temperature | -20° -70°C( 32° 104° F)° 104° F)° F)° 104° F) |
Storage temperature | -40° -85°C (14° 158° F)° 158° F)° F)° 158° F) | |
Operating humidity | 10% 90%, no condensation | |
Operating height | 3000 meters above sea level (10000ft) | |
Radiation and security | Radiation | CE mark, commercial FCC Part 15 Class A EN 55022 (CISPR 22),Class A |
security | EN 55024 | |
Guarantee | switch | 1 year |
Packing | Package content | switch AC power line The product specification Warranty card certificate |
Introduction:
The 8 ports Standard POE switch provides power and data to wireless access point and IP camera, using Power over Ethernet(PoE) over a single Cat-5 cable. The 8 Ethernet ports can be used for any 10/100 Mbps link and also can supply industry-standard IEEE 802.3af power. Advanced Auto detection gives power only to 802.3af powered devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the standard automatically determines PoE requirements, speed, duplex, and cable type using Auto detection.
Easy Cabling Installation
With data and power over Ethernet from one unit, The poe switch shall reduce cables and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire carries both data and power lowering the installation costs, simplifying the installation effort and eliminating the need for electricians or extension cords. It is a great selection for expanding your home or office network.
MODEL:EV-SC1082PT
