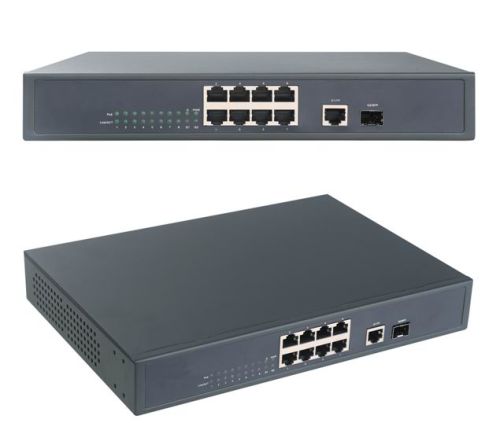

Optical 8-Port Poe Network Switch, Industrial Ethernt Switch
光纤8端口PoE网络交换机，工业以太网交换机
| 型号。 | EV-sc1082pt |
| 类型 | 光开关 |
| 端口 | ≦8 |
| 电源电压 | 48V |
| 重量 | 2.5公斤 |
| 规范 | 金属 |
| HS编码 | 8517623290 |
| 通讯模式 | 全双工和半双工双机uplex |
| 传输速率 | 100Mbps的 |
| 电源 | 120W |
| 特点 | FPC |
| 商标 | eyevison |
| 起源 | 深圳中国 |
光纤8端口POE网络交换机，RJ45工业以太网/ PoE交换机
介绍：
8端口标准POE交换机通过单个Cat-5电缆使用以太网供电（PoE）为无线接入点和IP摄像机提供电源和数据。 8个以太网端口可用于任何10/100 Mbps链路，并可提供行业标准的IEEE 802.3af电源。高级自动检测功能仅供802.3af供电设备使用，因此无需担心损坏专有PoE或非PoE设备。此外，当PoE设备断开连接时，它会中断电源。标准自动确定PoE要求，速度，双工和电缆类型，使用自动检测方便可靠。
安装方便：
通过以太网的数据和电力从一个单元，poe开关应减少电缆，并消除在墙壁，天花板或任何不可达的地方专用电源插座的需要。导线同时承载数据和降低安装成本的功率，简化了安装工作，消除了对电工或延长线的需求。这是扩展您的家庭或办公室网络的绝佳选择。
规范：
POE | poe港口 | 1-8 |
POE标准 | ieee802.3af ieee802.3at | |
POE电源引脚 | endspan：1/2（+）3/6（ - ） | |
POE电源 | 30w（at），15.4w（af） | |
RJ45 | Rj45端口 | 1-9 |
速度 | 1-8 10m / 100m 9 10m / 100m / 1000m | |
SFP | SFP | 9-10 |
速度 | 1.25G | |
性能参数 | 背板带宽 | 8.8G |
网络延迟 | <20 ms0 ms | |
分组转发速率 | 6.5Mpps | |
包缓冲存储器 | 256KB | |
地址数据库大小 | 8000 | |
平均失败的时间 | 5年 | |
网络协议 | 网络协议 | ieee 802.3i 10base-t ieee 802.3u 100base-tx IEEE 802.3x流量控制 ieee 802.3ab 1000baset ieee 802.3z 1000basex |
POE标准 | ieee802.3af ieee802.3at | |
电源支持 | 电源 | 120w |
电源电压 | 48V | |
特点 | FPC | |
尺寸 | 长×宽×高 | 440 * 278 *44毫米 |
重量 | 2.5公斤 | |
环境指标 | 操作温度 | -20°-70°C（32°104°F）°104°f）° F)° 104° F) |
储存温度 | -40°-85°C（14°158°F）°158°f）° F)° 158° F) | |
工作湿度 | 10％90％，无结露 | |
工作高度 | 海拔3000米（10000英尺） | |
辐射和安全 | 辐射 | CE标志，商业 FCC Part 15 Class A en 55022（cispr 22），class a |
安全 | en 55024 | |
保证 | 开关 | 1年 |
包装 | 包装内容 | 开关 交流电源线 产品规格 保修卡证书 |
有竞争力的优势：
中央电视台业界领先，专业的制造商
2.高品质
竞争力合理的价格
最好的售前，售中和售后服务
5.专业技术支持
ce，fcc，rohs通过
| Model NO. | EV-SC1082PT |
| Type | Optical Switch |
| Ports | ≦8 |
| Power Voltage | 48V |
| Weight | 2.5kg |
| Specification | metal |
| HS Code | 8517623290 |
| Communication Mode | Full-Duplex & Half-DuplexDuplexuplex |
| Transmission Rate | 100Mbps |
| Power Supply | 120W |
| Characteristics | FPC |
| Trademark | EYEVISON |
| Origin | Shenzhen China |
Optical 8-port POE Network Switch , RJ45 Industrial Ethernt / Poe Switch
Introduction:
The 8 ports Standard POE switch provides power and data to wireless access point and IP camera, using Power over Ethernet(PoE) over a single Cat-5 cable. The 8 Ethernet ports can be used for any 10/100 Mbps link and also can supply industry-standard IEEE 802.3af power. Advanced Auto detection gives power only to 802.3af powered devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the standard automatically determines PoE requirements, speed, duplex, and cable type using Auto detection.
Easy Cabling Installation:
With data and power over Ethernet from one unit, The poe switch shall reduce cables and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire carries both data and power lowering the installation costs, simplifying the installation effort and eliminating the need for electricians or extension cords. It is a great selection for expanding your home or office network.
Specification:
POE | POE PORT | 1-8 |
POE Standard | IEEE802.3AF IEEE802.3AT | |
POE power pin | endspan:1/2(+) 3/6(-) | |
POE power | 30w(at), 15.4w(af) | |
RJ45 | Rj45 port | 1-9 |
speed | 1-8 10M/100M 9 10M/100M/1000M | |
SFP | SFP | 9-10 |
speed | 1.25G | |
performance parameter | Backplane bandwidth | 8.8G |
network delay | <20 ms0 ms | |
Packet forwarding rate | 6.5Mpps | |
The packet buffer memory | 256KB | |
The address database size | 8000 | |
The mean time to failure | 5 years | |
network protocol | network protocol | IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3ab 1000BASET IEEE 802.3z 1000BASEX |
POE standard | IEEE802.3AF IEEE802.3AT | |
Power support | power supply | 120w |
Power voltage | 48V | |
characteristics | FPC | |
size | Long*wide*high | 440*278*44mm |
weight | 2.5kg | |
Environmental specifications | operation temperature | -20° -70°C( 32° 104° F)° 104° F)° F)° 104° F) |
Storage temperature | -40° -85°C (14° 158° F)° 158° F)° F)° 158° F) | |
Operating humidity | 10% 90%, no condensation | |
Operating height | 3000 meters above sea level (10000ft) | |
Radiation and security | Radiation | CE mark, commercial FCC Part 15 Class A EN 55022 (CISPR 22),Class A |
security | EN 55024 | |
Guarantee | switch | 1 year |
Packing | Package content | switch AC power line The product specification Warranty card certificate |
Competitive advantages:
1. Leading and professional manufacturer in CCTV industry
2. High quality
3. Competitive and reasonable price
4. Best pre-sale,sale and after-sale service
5. Professional technical support
6. CE,FCC,RoHS passed
