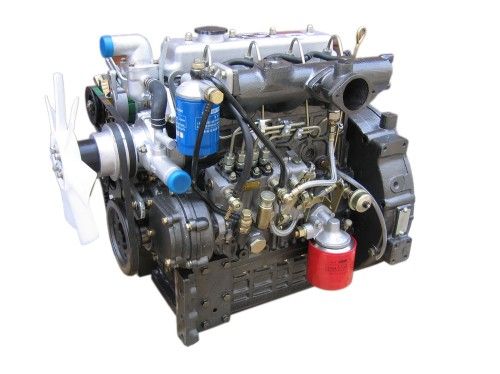

30-45 HP Diesel Engines for Middle-Sized Tractors

30-45 HP Diesel Engines for Middle-Sized Tractors

30-45中型拖拉机的HP柴油发动机

1038 USD

加入意向
型号。 4l22bt 4l23bt km490bt 4l100bt km2108
速度 高速
进气压力脉冲 增压
汽油 柴油，柴油发动机
气缸排列形式 H
马力35HP： 速度：2450r /分钟
规范 ISO9001质量认证;
HS编码 84089091
点火模式 压缩点火
冷却气瓶 水冷
活塞运动 往复式
中风次数 四条线
气缸数 多缸机
商标 LD
起源 中国山东莱阳

用于中型拖拉机的30-45 HP柴油发动机

主要包括柴油机的KM2108，KM2110,4L22T，4L22TE，4L22BT，4L23BT，KM490BT和4L100BT型，其排放标准均达到非公路车辆的EuroII标准。

产品描述 ：我们的拖拉机指定的柴油发动机是基于车辆发动机设计的。充分考虑到拖拉机的特殊要求，吸收了国内外先进技术的多年。结构紧凑，功率大，运行平稳，噪音低，可靠性高。其所有批产品均按照“GB 20891-2007”“非公路移动机械污染物柴油机排放限值及测量方法（中国一期，二期）”获得“二期”排放许可证和农机推广调查报告。其功率从45马力到30马力，已成为中型拖拉机牵引车的首选配套发动机。tors.
技术特点
1.应用高度拉伸的车辆部件，使其具有高可靠性和良好的兼容性。
2.适应低速工作过程优化，具有精湛的动力和经济效益。
3.结构紧凑，体积小，重量轻。
4.振动小，噪音低。
5.组件兼容性好，维护方便。
适用范围：适用于30-45小时拖拉机的理想配套发动机
产品参数：

型号。

4l22t

4l22te

4l22bt

4l23bt

km490bt

4l100bt

km2108

km2110

类型

直，水冷，四冲程，自然吸气

注射模式

直接注射

气缸数

4

2

孔径×行程（mm）oke（mm）oke(mm)

85×90imes; 90imes;90

85×90imes; 90imes;90

85×90imes; 90imes;90

88×90imes; 90imes;90

90×100mes; 100mes;100

96×105mes; 105mes;105

108×117mes; 117mes;117

110×117mes; 117mes;117

位移（L）

2.156

2.156

2.156

2.311

2.544

3.04

2.144

2.224

额定功率（kW）/额定转速（r / min）

25.7/2350

22.1/2350

25.7/2350

29.4/2400

29.5/2300

33.1/2300

22.1~25.7/2200~2400

25.7~27.5/2300~2400

最大。扭矩（Nm）/额定转速（r / min）

120/1762

103/1762

120/1762

134.5/1800

141/1725

158/1725

109.8~117.6/1650~1800

117.6~131.3/1725~1800

闵。比燃耗（g / kW.h）

≤270; 270;270

≤238; 238;238

尺寸（mm×毫米×毫米）;毫米×毫米）es;mm);mm×mm)

（670〜750）×（494〜535）×（610〜660）MES;（610〜660）mes;(610~660)

（840〜910）×（530〜570）×（720〜750）MES;（720〜750）mes;(720~750)

（600〜670）×（540〜610）×（740〜820）MES;（740〜820）mes;(740~820)

净重/公斤）

270~320

360~410

260~350

排放标准

欧洲排放标准3A

EuroII用于非公路车辆

Model NO. 4L22BT 4L23BT KM490BT 4L100BT KM2108
Speed High Speed
Intake Pressure Impulse Supercharged
Fuel Diesel, Diesel Engine
Cylinder Arrangement Form H
Horse Power 35HP: Speed:2450r/Min
Specification ISO9001 Quality Certificate;
HS Code 84089091
Ignition Mode Compression-Ignition
Cooling Cylinder Water-Cooled
Piston Movement Reciprocating
Number of Strokes Four-Stroke
Number of Cylinders Multi-Cylinder Machines
Trademark LD
Origin Laiyang, Shandong, China

30-45 HP diesel engines for middle-sized tractors

It includes mainly KM2108,KM2110,4L22T,4L22TE,4L22BT,4L23BT,KM490BT and 4L100BTmodels of diesel engines, which emission standard all achieve EuroII standard for off-highway vehicles.

Product Description :Our tractor-specified diesel engines is designed on the basis of vehicle engines. It fully considers the special demands of the tractors, and absorbs the years of advanced technology from both Laidong and abroad. It has compact structure, high power, smooth operation, low noise and high reliability. All of its batch products have obtained the Phase-II emission certificate and agricultural machinery promotion survey report as per 'GB 20891-2007 diesel engines emission limits of pollutants for off-highway mobile machinery & measuring method (Chinese Phase I, II)'. Its power ranges from 45 hpto 30 horsepower, and has become the preferred mating engine for middle-sized tractors.sized tractors.tors.
Technical Features
1. Apply highly tensile vehicle components, so that it has high reliability and great compatibility.
2. Adaptable for lower-speed working process optimizing, thus it possess wonderful power and economical efficiency.
3. Compact structure, small size and low weight.
4. Minor vibration, low noise.
5. Great component compatibility, easy maintenance.
Scope of Application : Ideal mating engine for 30-45 hplarge-sized tractors
Product Parameters:

Model No.

4L22T

4L22TE

4L22BT

4L23BT

KM490BT

4L100BT

KM2108

KM2110

Type

Straight, Water cooling, Four-stroke, Natural aspirated

Injection Mode

Direct injection

Number of Cylinders

4

2

Bore × Stroke(mm)oke(mm)oke(mm)

85×90imes;90imes;90

85×90imes;90imes;90

85×90imes;90imes;90

88×90imes;90imes;90

90×100mes;100mes;100

96×105mes;105mes;105

108×117mes;117mes;117

110×117mes;117mes;117

Displacement(L)

2.156

2.156

2.156

2.311

2.544

3.04

2.144

2.224

Rated Power (kW)/Rated speed(r/min)

25.7/2350

22.1/2350

25.7/2350

29.4/2400

29.5/2300

33.1/2300

22.1~25.7/2200~2400

25.7~27.5/2300~2400

Max. Torque (N.m)/Rated speed(r/min)

120/1762

103/1762

120/1762

134.5/1800

141/1725

158/1725

109.8~117.6/1650~1800

117.6~131.3/1725~1800

Min. specific fuel-consumption(g/kW.h)

≤270;270;270

≤238;238;238

Dimension(mm×mm×mm);mm×mm)es;mm);mm×mm)

(670~750)×(494~535)×(610~660)mes;(610~660)mes;(610~660)

(840~910)×(530~570)×(720~750)mes;(720~750)mes;(720~750)

(600~670)×(540~610)×(740~820)mes;(740~820)mes;(740~820)

Net Weight(kg)

270~320

360~410

260~350

Emission Standard

European Emission Standard 3A

EuroII for off-highway vehicles
