Diesel Engines for Harvest Machinery

Diesel Engines for Harvest Machinery

柴油发动机的收获机械

1160 USD

加入意向
型号。 4l90 4l100g km4102b tl4110 tl4113 tl4115
速度 高速
进气压力脉冲 增压
汽油 柴油,柴油发动机
气缸排列形式 H
马力80HP: 速度:2400R /分钟
规范 ISO9001质量认证;
HS编码 84089091
点火模式 压缩点火
冷却气瓶 水冷
活塞运动 往复式
中风次数 四条线
气缸数 多缸机
商标 LD
起源 中国山东莱阳
柴油机采收机械:
主要包括4L90,4L100G,KM4102B,TL4110,TL4113和TL4115型柴油机。排放水平达到非公路车辆国家标准二。
产品描述:我们的拖拉机指定的柴油发动机是在汽车发动机的基础上设计的。充分考虑到拖拉机的特殊要求,吸收了国内外先进技术的多年。结构紧凑,功率大,运行平稳,噪音低,可靠性高。其所有批产品均按照“GB 20891-2007”“非公路移动机械污染物柴油机排放限值及测量方法(中国一期,二期)”获得“二期”排放许可证和农机推广调查报告。其功率从40马力到100马力,已成为中型拖拉机首选配套发动机。现在已经成为收获机械的首选配套发动机。nery.
技术特点:
1.采用高度拉伸的车辆部件,具有很高的可靠性和较大的相容性。
适应低速工作过程优化;满足收割者的需求。
结构紧凑,体积小,重量轻。
4.振动小,噪音低。
低排放设计技术,低排放,低污染。
适用范围: 理想的收割机配套发动机

产品参数:

型号。 4L90 4l100g km4102b tl4110 tl4113 tl4115
类型 直,水冷,四冲程,自然吸气
注射模式 直接注射
气缸数 4
孔径×行程(mm)ke(mm)ke (mm) 88×90imes; 90imes;90 96×105mes; 105mes;105 102×105mes; 105mes;105 110×125mes; 125mes;125 113×125mes; 125mes;125 115×125mes; 125mes;125
位移(L) 2.311 3.04 3.432 4.752 5.014 5.193
额定功率(kW)/额定转速(r / min) 29.4/2400 39/2400 44.1/2400 59/2200 62.5~66.2/2200~2300 73/2400
最大。扭矩(Nm)/额定转速(r / min)
134.5/1800 173.8/1800 201.8/1800 300/1650 322~337/1600~1800 340/1800
闵。比燃耗(g / kW.h) ≤238; 238;238 ≤220; 220;220
尺寸(mm×毫米×毫米);毫米×毫米)es;mm);mm×mm) (840〜910)×(530〜570)×(720〜750)MES;(720〜750)mes;(720~750) (910〜980)×(620〜660)×(860〜930)MES;(860〜930)mes;(860~930)
净重/公斤) 410~460 520~580
排放标准
EuroII用于非公路车辆
EuroII用于非公路车辆


Model NO. 4L90 4L100G KM4102B TL4110 TL4113 TL4115
Speed High Speed
Intake Pressure Impulse Supercharged
Fuel Diesel, Diesel Engine
Cylinder Arrangement Form H
Horse Power 80HP: Speed:2400r/Min
Specification ISO9001 Quality Certificate;
HS Code 84089091
Ignition Mode Compression-Ignition
Cooling Cylinder Water-Cooled
Piston Movement Reciprocating
Number of Strokes Four-Stroke
Number of Cylinders Multi-Cylinder Machines
Trademark LD
Origin Laiyang, Shandong, China

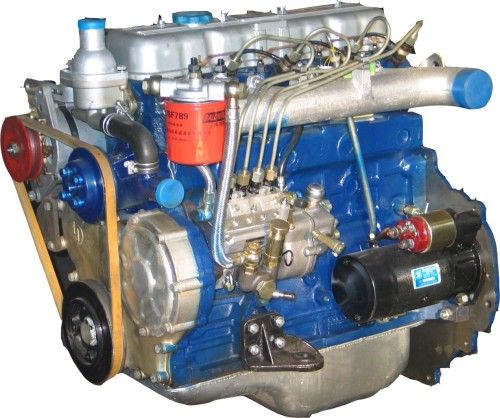

diesel engines for harvest machinery:
Include mainly 4L90, 4L100G, KM4102B, TL4110, TL4113 and TL4115 models of diesel enginess. Emission level achieves national standard II for off-highway vehicles.
Product Description:Our tractor-specified diesel engines is designed on the basis of vehicle engines. It fully considers the special demands of the tractors, and absorbs the years of advanced technology from both Laidong and abroad. It has compact structure, high power, smooth operation, low noise and high reliability. All of its batch products have obtained the Phase-II emission certificate and agricultural machinery promotion survey report as per 'GB 20891-2007 diesel engines emission limits of pollutants for off-highway mobile machinery & measuring method (Chinese Phase I, II)'. Its power ranges from 40 horsepower to 100 horsepower, and has become the preferred mating engine for middle-sized tractors. Now it has become the preferred mating engine for harvest machinery.vest machinery.nery.
Technical Features:
1.Apply highly tensile vehicle components, so that it has high reliability and greatcompatibility.
2. Adaptable for lower-speed working process optimizing; meet the demand of reapers.
3. Compact structure, small size and low weight.
4. Minor vibration, low noise.
5. Low-emission design technology, low emission and low pollution.
Scope of application: Ideal mating engine for harvest machinery

Product Parameters:

Model No. 4L90 4L100G KM4102B TL4110 TL4113 TL4115
Type Straight, Water cooling, Four-stroke, Natural aspirated
Injection Mode Direct injection
Number of Cylinders 4
Bore × Stroke (mm)ke (mm)ke (mm) 88×90imes;90imes;90 96×105mes;105mes;105 102×105mes;105mes;105 110×125mes;125mes;125 113×125mes;125mes;125 115×125mes;125mes;125
Displacement(L) 2.311 3.04 3.432 4.752 5.014 5.193
Rated Power (kW)/Rated speed (r/min) 29.4/2400 39/2400 44.1/2400 59/2200 62.5~66.2/2200~2300 73/2400
Max. Torque (N.m)/Rated speed (r/min)
134.5/1800 173.8/1800 201.8/1800 300/1650 322~337/1600~1800 340/1800
Min. specific fuel-consumption (g/kW.h) ≤238;238;238 ≤220;220;220
Dimension(mm×mm×mm);mm×mm)es;mm);mm×mm) (840~910)×(530~570)×(720~750)mes;(720~750)mes;(720~750) (910~980)×(620~660)×(860~930)mes;(860~930)mes;(860~930)
Net Weight(kg) 410~460 520~580
Emission Standard
EuroII for off-highway vehicles
EuroIIfor off-highway vehicles
