50-100 Hpdiesel Engine for Large-Sized Tractors

50-100 Hpdiesel发动机大型拖拉机

2386 USD

译文
原文

型号。	km4100bt km4100bt3 km4102bt tl4110 tl4113
速度	高速
进气压力脉冲	增压
汽油	柴油发动机
气缸排列形式	H
马力50HP：	速度：2400R /分钟
规范	ISO9001质量认证;
HS编码	84089091
点火模式	压缩点火
冷却气瓶	水冷
活塞运动	往复式
中风次数	四条线
气缸数	多缸机
商标	LD
起源	中国山东莱阳

50-100 HPdiesel发动机用于大型拖拉机

主要包括4L100BT1，KM4100BT，KM4100BT3，KM4102BT，TL4110，TL4113和TL4115型柴油机，其排放标准均达到非公路车辆标准。

产品描述：我们的拖拉机指定的柴油是基于车辆发动机设计的。充分考虑到拖拉机的特殊要求，吸收了国内外先进技术的多年。结构紧凑，功率大，运行平稳，噪音低，可靠性高。所有批次产品均按照“GB 20891-2007”“非公路移动机械污染物排放限值（中国一期，二期）”获得了二期排放许可证和农机推广调查报告。其功率范围从50马力至100马力，并已成为中型拖拉机牵引车首选配套发动机。tors.

技术特点

1.应用高度拉伸的车辆部件，使其具有高可靠性和良好的兼容性。

2.适应低速工作过程优化，具有精湛的动力和经济效益。

3.结构紧凑，体积小，重量轻。

4.振动小，噪音低。

适用范围： 适用于50-100 HP大型拖拉机的理想配套发动机

产品参数：

型号。	4l100bt1	km4100bt	km4100bt3	km4102bt	tl4110	tl4113	tl4115
类型	直，水冷，四冲程，自然吸气
注射模式	直接注射
气缸数	4
孔径×行程（mm）oke（mm）oke(mm)	96×105mes; 105mes;105	100×105mes; 105mes;105	100×105mes; 105mes;105	102×105mes; 105mes;105	110×125mes; 125mes;125	113×125mes; 125mes;125	115×125mes; 125mes;125
位移（L）	3.04	3.298	3.298	3.432	4.752	5.014	5.193
额定功率（kW）/转速（r / min）（r / min）	36.8/2500	36.8/2300	40.4/2500	40.4/2400	59/2200	62.5~66.2/2200~2300	73/2400
最大。扭矩（N.m）/转速（r / min）	161.7/1875	176/1725	177.5/1875	184.8/1800	300/1650	322~337/1600~1800	340/1800
满载最小燃料消耗率（g / kW.h）	≤238; 238;238				≤220; 220;220
尺寸（mm×毫米×毫米）;毫米×毫米）es;mm);mm×mm)	（840〜910）×（530〜570）×（720〜750）MES;（720〜750）mes;(720~750)				（910〜980）×（620〜660）×（860〜930）MES;（860〜930）mes;(860~930)
净重/公斤）	330~410	410~460			520~580
排放标准	EuroII用于非公路车辆

Model NO.	KM4100BT KM4100BT3 KM4102BT TL4110 TL4113
Speed	High Speed
Intake Pressure Impulse	Supercharged
Fuel	Diesel Engine
Cylinder Arrangement Form	H
Horse Power 50HP:	Speed:2400r/Min
Specification	ISO9001 Quality Certificate;
HS Code	84089091
Ignition Mode	Compression-Ignition
Cooling Cylinder	Water-Cooled
Piston Movement	Reciprocating
Number of Strokes	Four-Stroke
Number of Cylinders	Multi-Cylinder Machines
Trademark	LD
Origin	Laiyang, Shandong, China

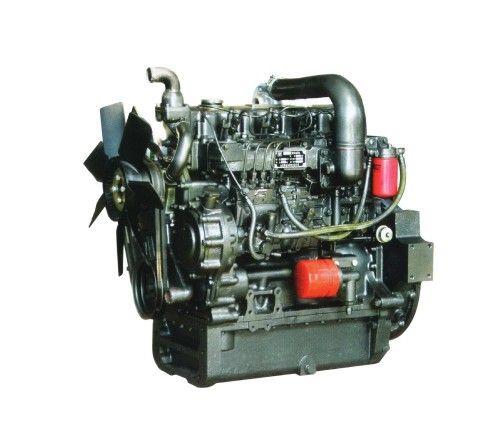

50-100 HPdiesel engine for large-sized tractors

It includes mainly 4L100BT1, KM4100BT, KM4100BT3, KM4102BT, TL4110, TL4113 and TL4115 models of diesels, which emission standard all achieveEuroIIstandard for off-highway vehicles.

Product Description :Our tractor-specified diesel is designed on the basis of vehicle engines. It fully considers the special demands of the tractors, and absorbs the years of advanced technology from both Laidong and abroad. It has compact structure, high power, smooth operation, low noise and high reliability. All of its batch products have obtained the Phase-II emission certificate and agricultural machinery promotion survey report as per 'GB 20891-2007 diesel emission limits of pollutants for off-highway mobile machinery & measuring method (Chinese Phase I, II)'. Its power ranges from 50 HP to 100 horsepower, and has become the preferred mating engine for middle-sized tractors.sized tractors.tors.

Technical Features

1. Apply highly tensile vehicle components, so that it has high reliability and great compatibility.

2. Adaptable for lower-speed working process optimizing, thus it possess wonderful power and economical efficiency.

3. Compact structure, small size and low weight.

4. Minor vibration, low noise.

Scope of Application : Ideal mating engine for 50-100 HP large-sized tractors

Product Parameters:

Model No.	4L100BT1	KM4100BT	KM4100BT3	KM4102BT	TL4110	TL4113	TL4115
Type	Straight, Water cooling, Four-stroke, Natural aspirated
Injection Mode	Direct injection
Number of Cylinders	4
Bore × Stroke(mm)oke(mm)oke(mm)	96×105mes;105mes;105	100×105mes;105mes;105	100×105mes;105mes;105	102×105mes;105mes;105	110×125mes;125mes;125	113×125mes;125mes;125	115×125mes;125mes;125
Displacement(L)	3.04	3.298	3.298	3.432	4.752	5.014	5.193
Rated Power (kW)/Rotating Speed (r/min)(r/min)	36.8/2500	36.8/2300	40.4/2500	40.4/2400	59/2200	62.5~66.2/2200~2300	73/2400
Max. Torque (N.m)/Rotating Speed(r/min)	161.7/1875	176/1725	177.5/1875	184.8/1800	300/1650	322~337/1600~1800	340/1800
Full-load Min. Fuel-consume Ratio (g/kW.h)	≤238;238;238				≤220;220;220
Dimension(mm×mm×mm);mm×mm)es;mm);mm×mm)	(840~910)×(530~570)×(720~750)mes;(720~750)mes;(720~750)				(910~980)×(620~660)×(860~930)mes;(860~930)mes;(860~930)
Net Weight(kg)	330~410	410~460			520~580
Emission Standard	EuroII for off-highway vehicles
