Diesel Engines for Generating Sets
发电机组柴油发动机
| 型号。 | ll380b km385b ll480b km485b 4l22b km496 |
| 速度 | 高速 |
| 进气压力脉冲 | 增压 |
| 汽油 | 柴油，柴油发动机 |
| 气缸排列形式 | H |
| 马力40HP： | 位移：2.156L |
| 规范 | ISO9001质量认证; |
| HS编码 | 84089091 |
| 点火模式 | 压缩点火 |
| 冷却气瓶 | 水冷 |
| 活塞运动 | 往复式 |
| 中风次数 | 四条线 |
| 气缸数 | 多缸机 |
| 商标 | LD |
| 起源 | 中国山东莱阳 |
用于发电机组的柴油发动机
主要包括L380，LL380B，KM385B，LL480B，KM485B，4L22B，KM496和KM4100型柴油发动机。排放水平达到非公路车辆国家标准二。
产品描述 ：我们的拖拉机指定的柴油发动机是基于车辆发动机设计的。充分考虑到拖拉机的特殊要求，吸收了国内外先进技术的多年。结构紧凑，功率大，运行平稳，噪音低，可靠性高。所有批次产品均按照“GB 20891-2007”“非公路移动机械污染物排放限值（中国一期，二期）”获得了二期排放许可证和农机推广调查报告。其功率范围从10KW马力到46KW马力，已成为中型拖拉机拖拉机首选配套发动机。tors.
适用范围：
型号LL380 LL380B KM385B LL480B KM485B 4L 22B KM496 KM4100型号：直，水冷，四冲程，自吸式注射模式直接注射直接注射直接注射直接注射直接注射直接注射气缸数3 3 3 4 4 4 4 4孔×冲程（mm）8090 80 8090 808090 80
技术特点：
1.应用高度拉伸的车辆部件，使其具有高可靠性和良好的兼容性。
2.表现配置，功率范围广，满足各种电源需求。
3.结构紧凑，体积小，重量轻。
4.振动小，噪音低。
5.组件兼容性好，维护方便。
电源接口符合SAE标准。它具有很大的兼容性和普遍性。
产品参数
| 型号。 | ll380 | ll380b | km385b | ll480b | km485b | 4l22b | km496 | km4100 | |
| 类型 | 直，水冷，四冲程，自然吸气 | ||||||||
| 注射模式 | 涡流 | 直接注射 | 直接注射 | 直接注射 | 直接注射 | 直接注射 | 直接注射 | 直接注射 | |
| 气缸数 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | |
| 孔径×行程（mm）oke（mm）oke(mm) | 80×90imes; 90imes;90 | 80×90imes; 90imes;90 | 85×90imes; 90imes;90 | 80×90imes; 90imes;90 | 85×90imes; 90imes;90 | 85×95imes; 95imes;95 | 96×105mes; 105mes;105 | 100×105mes; 105mes;105 | |
| 位移（L） | 1.357 | 1.357 | 1.532 | 1.809 | 2.043 | 2.156 | 3.04 | 3.298 | |
| 额定功率（kW）/额定转速（r / min） | 10/1500 | 10/1500 | 12/1500 | 13/1500 | 14.5/1500 | 17/1500 | 23/1500 | 27/1500 | |
| 19/3000 | 21/3000 | 24/3000 | 27.5/3000 | 29/3000 | 46/3000 | ||||
| 闵。比燃耗（g / kW.h） | 275 | 238 | 238 | 238 | 238 | 238 | 238 | 238 | |
| 290 | 270 | 270 | 270 | 270 | 270 | ||||
| 尺寸（mm×毫米×毫米）;毫米×毫米）es;mm);mm×mm) | 589×525×610525×610es;610525×610 | 587×525×610525×610es;610525×610 | 587×525×610525×610es;610525×610 | 715×525×620525×620es;620525×620 | 762×584×729584×729es;729584×729 | 787×583×725583×725es;725583×725 | |||
| 净重/公斤） | 185 | 200 | 200 | 210 | 280 | 280 | |||
| Model NO. | LL380B KM385B LL480B KM485B 4L22B KM496 |
| Speed | High Speed |
| Intake Pressure Impulse | Supercharged |
| Fuel | Diesel, Diesel Engine |
| Cylinder Arrangement Form | H |
| Horse Power 40HP: | Displacement: 2.156L |
| Specification | ISO9001 Quality Certificate; |
| HS Code | 84089091 |
| Ignition Mode | Compression-Ignition |
| Cooling Cylinder | Water-Cooled |
| Piston Movement | Reciprocating |
| Number of Strokes | Four-Stroke |
| Number of Cylinders | Multi-Cylinder Machines |
| Trademark | LD |
| Origin | Laiyang, Shandong, China |

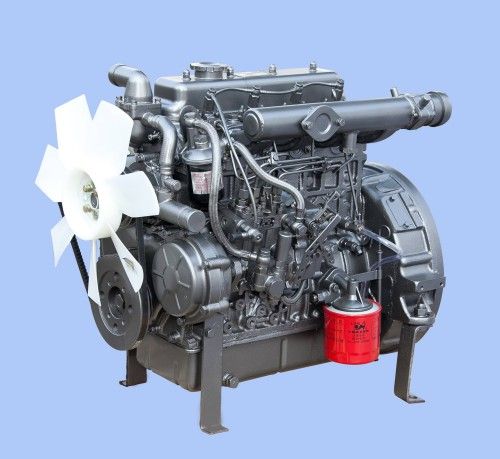

Diesel engines for generating sets
Include mainlyLL380,LL380B,KM385B,LL480B,KM485B,4L22B,KM496 andKM4100 models of Diesel engines. Emission level achieves national standard II for off-highway vehicles.
Product Description :Our tractor-specified diesel engines is designed on the basis of vehicle engines. It fully considers the special demands of the tractors, and absorbs the years of advanced technology from both Laidong and abroad. It has compact structure, high power, smooth operation, low noise and high reliability. All of its batch products have obtained the Phase-II emission certificate and agricultural machinery promotion survey report as per 'GB 20891-2007 diesel emission limits of pollutants for off-highway mobile machinery & measuring method (Chinese Phase I, II)'. Its power ranges from 10KW horsepower to 46KW horsepower, and has become the preferred mating engine for middle-sized tractors.sized tractors.tors.
Scope of application:
Model No.LL380 LL380B KM385B LL480B KM485B 4L 22B KM496 KM4100 Type: Straight, Water cooling, Four-stroke, Natural aspirated Injection Mode Direct injection Direct injection Direct injection Direct injection Direct injection Direct injection Number of Cylinders 3 3 3 4 4 4 4 4 Bore × Stroke (mm) 8090 80 8090 808090 80
Technical Features:
1. Apply highly tensile vehicle components, so that it has high reliability and great compatibility.
2. Expressive configuration, wide power range, meeting various power demands.
3. Compact structure, small size and low weight.
4. Minor vibration, low noise.
5. Great component compatibility, easy maintenance.
6. Power interface accords with SAE standard. It has great compatibility and universality.
Product Parameters
| Model No. | LL380 | LL380B | KM385B | LL480B | KM485B | 4L22B | KM496 | KM4100 | |
| Type | Straight, Water cooling, Four-stroke, Natural aspirated | ||||||||
| Injection Mode | Vortex flow | Direct injection | Direct injection | Direct injection | Direct injection | Direct injection | Direct injection | Direct injection | |
| Number of Cylinders | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | |
| Bore × Stroke(mm)oke(mm)oke(mm) | 80×90imes;90imes;90 | 80×90imes;90imes;90 | 85×90imes;90imes;90 | 80×90imes;90imes;90 | 85×90imes;90imes;90 | 85×95imes;95imes;95 | 96×105mes;105mes;105 | 100×105mes;105mes;105 | |
| Displacement(L) | 1.357 | 1.357 | 1.532 | 1.809 | 2.043 | 2.156 | 3.04 | 3.298 | |
| Rated Power (kW)/Rated speed (r/min) | 10/1500 | 10/1500 | 12/1500 | 13/1500 | 14.5/1500 | 17/1500 | 23/1500 | 27/1500 | |
| 19/3000 | 21/3000 | 24/3000 | 27.5/3000 | 29/3000 | 46/3000 | ||||
| Min. specific fuel-consumption(g/kW.h) | 275 | 238 | 238 | 238 | 238 | 238 | 238 | 238 | |
| 290 | 270 | 270 | 270 | 270 | 270 | ||||
| Dimension(mm×mm×mm);mm×mm)es;mm);mm×mm) | 589×525×610525×610es;610525×610 | 587×525×610525×610es;610525×610 | 587×525×610525×610es;610525×610 | 715×525×620525×620es;620525×620 | 762×584×729584×729es;729584×729 | 787×583×725583×725es;725583×725 | |||
| Net Weight(kg) | 185 | 200 | 200 | 210 | 280 | 280 | |||
