Special Designed Stadium LED Display IP65 High Refresh Screen

Special Designed Stadium LED Display IP65 High Refresh Screen

特殊设计的体育场LED显示屏IP65高刷新屏

100-1000 USD

加入意向
型号。 P16
IP等级 IP65
像素配置 1r,1g,1b
平均功耗 350W /m²m²up2;m²
扫描模式 静态恒流
应用 广告/图像/文本
寿命 10万小时
工厂价格 可得到
规范 ce,rohs,emc,ccc,iso9001
管芯颜色 饱满的色彩
像素间距 16毫米
显示功能 视频显示
像素密度 3906dots / M2
显示类型 LED视频显示
证明 ce,rohs,ccc
保证 2〜3年
商标 英雄
起源 中国广东省深圳市
特别设计的体育场馆LED显示屏IP65高刷新屏幕
规范:

零件号

英雄-OD

解析度

图16(H)×16(V)S; 16(ⅴ)s;16(V)

像素间距

16毫米

LED配置

1r1g1b dip346

像素密度
3906pixels / m2

模块尺寸

256 *256毫米

驱动IC

mbi 5024

驾驶方法

静态扫描,恒定电流

机柜重量
62公斤/平方米。

机械等级

悬挂重量支持

2T

表面平整度

±0.25mmn;0.25毫米n;0.25mm

光学等级

亮度
8000〜10000cd / m2

视角

110°/ 70°/ 70°deg;;/70°

灰度

16位

显示颜色
281trillion

亮度调整

0~100%

电源

操作电源

ac220v / 50hz或ac110v / 60hz

最大。能量消耗

1000W / m2

平均功耗

370W / m2

控制系统

控制模式

DVI同步显示控制PC

帧更新频率

60〜85Hz的

屏幕刷新频率

300〜1000Hz的

伽玛校正

-5.0~+5.0

支持输入

复合,S视频,组件,VGA,DVI,HDMI,HD_SDI

控制距离

以太网电缆<120m or Fiber Optic<10Kmlt;10Km

支持VGA模式

1024×768,1280×1024,1600×1200,1920×1280mes; 1200,1920×1280s;1280mes;1200, 1920×1280

亮度校正

像素,模块,机柜

环境的

工作温度

-20°〜+ 60°〜+ 60°deg;~+60°

工作湿度

10〜95%rh

使用寿命

100000小时

MTBF

万小时

防护等级

~

失控率

<0.02%

描述:
1.软面罩,保护LED灯以及玩家免受碰撞。
2.使用光纤传输系统提高信号传输的稳定性,传输更远,在控制中心与屏幕之间得到一致的显示。
3.支持双信号电缆进行热备份,当一个网线断开时,另一个将自动工作。
IP65防水防水,LED屏幕仍可在雨天工作。
5.配有专门的控制软件,方便操作程序编辑,如分数更新,播放,广告。
6.高达4800HZ的刷新率,不仅效果好,而且适用于高端拍摄。专门设计的机柜背面支架将机柜角度从75度调整到90度,确保所有观众清楚看到屏幕秀。
应用:
广泛应用于体育场,广场,广告牌,商业街,商场,商业中心等广告。
包装运输:
专业包装:木箱或飞行箱。
包装方式可以防止LED屏幕在运输过程中的碰撞,如损坏等。
无故解决您在运输中的烦恼。
关于英雄
LED屏幕7年的经验,我厂具有加工,研发LED显示屏的能力,确保多样化。严格的质量控制流程,确保LED显示屏具有高品质。
售后服务:
1)保修:
免费解决质量问题,确保设备在保修期内正常运行。在任何时候,我们承担所有的责任,当问题来自产品本身。
2)免费维护:
保修期内免费保修。
仅在保修期内收取原材料成本,提供最低价格的备件和维修服务。
3)快速反应:
2小时内响应,24小时内无人为故障,一般故障解决,48小时内可接受故障解决。
4)免费支持:
通过电话或网络实时提供服务支持,或借助网络进行远程调试支持(软件),解决问题。
官员网站:http://www.led-hero.com
Model NO. P16
IP Rating IP65
Pixel Configuration 1R, 1G, 1B
Average Power Consumption 350W / m²m²up2;m²
Scanning Mode Static Constant Current
Application Advertising/Image/Text
Lifespan 100,000 Hours
Factory Price Available
Specification CE, ROHS, EMC, CCC, ISO9001
Tube Chip Color Full Color
Pixel Pitch 16mm
Display Function Video Display
Pixel Density 3906dots/M2
Display Type LED Video Display
Certification CE, RoHS, CCC
Warranty 2~3 Years
Trademark HERO
Origin Shenzhen City, Guangdong Province, China

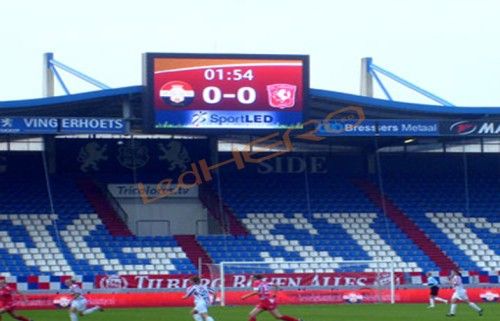

Special designed stadium LED display IP65 high refresh screen
specification:

Part Number

HERO-OD

Resolution

16(H)×16(V)s;16(V)s;16(V)

Pixel Pitch

16mm

LED Configuration

1R1G1B DIP346

Pixel Density
3906pixels/ m2

Module Size

256*256mm

Driving IC

MBI 5024

Driving Method

Static Scan, Constant Current

Cabinet Weight
62kg/sq.m.

Mechanical Ratings

Hanging Weight Support

2T

Surface Flatness

±0.25mmn;0.25mmn;0.25mm

Optical Ratings

Brightness
8000~10000cd/ m2

View Angle

110°/70°;/70°deg;;/70°

Gray Scale

16bits

Display COLOR
281trillion

Brightness Adjustment

0~100%

Power Supply

Operation Power

AC220V/50HZ or AC110V/60Hz

Max. Power Consumption

1000W/ m2

Average Power Consumption

370W/ m2

Control System

Control Mode

Synchronous display with control PC by DVI

Frame Update Frequency

60~85Hz

Screen Refresh Frequency

300~1000Hz

Gamma Correction

-5.0~+5.0

Support Input

Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

Control Distance

Ethernet cable<120m or Fiber Optic<10Kmlt;10Km

Support VGA Mode

1024×768, 1280×1024, 1600×1200, 1920×1280mes;1200, 1920×1280s;1280mes;1200, 1920×1280

Brightness Correction

Pixel, Module, Cabinet

Environmental

Operating Temperature

-20°~+60°~+60°deg;~+60°

Operating Humidity

10~95% RH

Operating Life

100,000hours

MTBF

10000hours

Protection Level

~

Out of Control Rate

<0.02%

Description:
1.Soft mask,protect the LED lamp as well as players from collision.
2.The use of optical fiber transmitting system enhance the stability of signal transmitting,transmit farther,getting a consistent displaying between the control center and the screen.
3.Support double signal cable for hot backup,when one network cable break of,another one will work automatically.
4.Great waterproof with IP65,LED screen can still work in rainy days.
5.Equipped with specialized control software,easy operation for program edit,such as scores update,playback,advertising.
6.High refresh rate up to 4800HZ,it have not only good viewing effect but also perfect for high-end shooting.special designed cabinet with bracket backside which adjust the cabinet angle from 75 to 90 degree,ensure all the audience see clearly what the screen show.
Applications:
Widely used in stadium,square,billboard,business street,shopping malls,commercial centers,and other advertising.
Packing and transportation:
Professional packaging:wooden box or flight case.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Faultlessly solve your worries in the transportation.
About Hero;
7-year's experience in LED screen, our factory has the ability of processing, researching and developing led display to ensure the prolificacy.A strict quality control process to make sure the led display screens is with high quality.
After-sale service:
1) Warranty:
Free to solve the quality problems to ensure that equipment normal operation in the warranty period . At any time, we bear all the responsibility, when the problem is from the product itself.
2) Free maintenance:
Free warranty in the warranty period.
Only charge the cost of raw materials, provide spare parts and maintenance services for the lowest price after the warranty period.
3)quick response:
Response within 2 hours, non-artificial, general fault solution within 24 hours, and acceptable failure resolved within 48 hours.
4) Free support:
Through telephone or network to provide service support in real time, or with the help of a network for remote debugging support (software), to solve the problem.
Officer website: Http://www.led-hero.com
