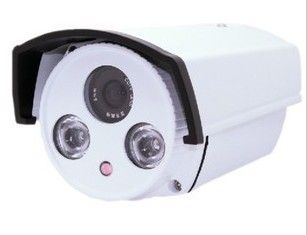

700TV Lines Metal Housing Outdoor Box Security CCTV Camera (SX-8807AD-7)
700TV线金属外壳户外箱安全闭路电视摄像机（SX-8807AD-7）
| 型号。 | SX-339ad -3- |
| 样式 | 相机相机 |
| 传感器 | CCD |
| 水平分辨率 | 700TVL |
| 证明 | ce，fcc，rohs |
| 有效距离 | ≧30米 |
| 遥控 | 带遥控器 |
| 镜片 | 3.6毫米 |
| 型号 | SX-8807ad-7 |
| 2pcs ir领导 | 红外距离：30米 |
| 商标 | 石新或oem |
| 规范 | 54 * 34 *40厘米 |
| HS编码 | 8529904100 |
| 技术 | 相机相机 |
| 类型 | 闭路电视摄像机 |
| HDMI格式 | 模拟摄像机 |
| 类 | 手动对焦镜头 |
| 特征 | 防水/防水，自动BLC |
| 传感器尺寸 | 1/3英寸 |
| 产品名称 | 户外盒安全闭路电视摄像机 |
| 图像传感器 | 700tvl 1/3 Sony CCD |
| 最小照明 | 0.001LUX |
| 材料 | 金属外壳 |
| 运输包装 | 50件/箱; 22公斤/箱 |
| 起源 | 深圳 |
700TV线金属外壳户外保安闭路电视摄像机（SX-8807AD-7）
箱式闭路电视摄像机
安全闭路电视摄像机
户外保安闭路电视摄像机
- 1/3“索尼超级有2 ccdd 2 ccd
- 支持直流或视频光圈镜头
- blc和agc
- 自动白平衡
- 内置Pre-AMP音频
如有任何问题，请随时与我们联系。我们将竭尽全力与您合作。
箱式闭路电视摄像机
安全闭路电视摄像机
户外保安闭路电视摄像机
- 1/3“索尼超级有2 ccdd 2 ccd
- 支持直流或视频光圈镜头
- blc和agc
- 自动白平衡
- 内置Pre-AMP音频
| 型号 | SX-8807ad -7- |
| 电源（+/- 10％） | DC12V |
| 解析度 | MED-RES。 |
| 灵敏度（F1.2） | 0.3Lux |
| 芯片 | sony effioe e |
| 接载设备 | 新1/3“SONY HAD 2 CCD图像传感器 |
| 图片元素 | ntsc：811（h）×508（v），pal：795（h）×595（v）×595（v）595(V)×595(V) |
| H.同步频率 | ntsc：15.734khz，pal：15.625khz |
| V.同步频率 | ntsc：59.94 hz，pal：50 hz |
| 同步 | 内部 |
| 水平分辨率 | 700条电视线 |
| 背光补偿 | ON / OFF可切换 |
| 电子快门 | ON / OFF可切换， |
| 范围：1/50（1/60）〜1/100，000 sec。 | |
| 镜片 | CS / C安装 |
| 伽玛校正 | 0.45 |
| S / N比 | 超过52 dB（AGC关闭） |
| 视频输出 | 1.0 Vp-p，75欧姆 |
| 尺寸（mm） | 122（l）×61（w）×47（h）×47（h） 47(H)× 47(H) |
| 功耗（+/- 10％） | 110毫安 |
| 重量（g） | 480g |
| 储存温度 | -30oC〜+ 60oC |
| 工作温度 | -10oC〜+ 55oC |
如有任何问题，请随时与我们联系。我们将竭尽全力与您合作。
| Model NO. | SX-339AD-3 |
| Style | Box Camera |
| Sensor | CCD |
| Horizontal Resolution | 700tvl |
| Certification | CE, FCC, RoHS |
| Effective Distance | ≧30m |
| Remote Control | With Remote Control |
| Lens | 3.6mm |
| Model Number | Sx-8807ad-7 |
| 2PCS IR LED | IR Distance: 30m |
| Trademark | SHIXIN or OEM |
| Specification | 54*34*40cm |
| HS Code | 8529904100 |
| Technology | Box Camera |
| Type | CCTV Camera |
| HDMI Format | Analog Camera |
| Kind | Manual Focus Lens |
| Feature | Waterproof / Weatherproof, Auto BLC |
| Sensor Size | 1/3 inch |
| Product Name | Outdoor Box Security CCTV Camera |
| Image Sensor | 700tvl 1/3 Sony CCD |
| Min Illumination | 0.001lux |
| Material | Metal Housing |
| Transport Package | 50PCS/CTN; 22kg/CTN |
| Origin | Shenzhen |
700TV Lines Metal housing Outdoor Box Security CCTV Camera (SX-8807AD-7)
Box CCTV Camera
Security CCTV Camera
Outdoor security CCTV Camera
- 1/3' Sony SUPER HAD 2 CCDD 2 CCD
- Supports DC or Video Iris Lens
- BLC and AGC
- Auto White Balance
- Built-in Pre-AMP Audio
If there is any question, please don't hesitate to contact us. We will try our best to cooperate with you.
Box CCTV Camera
Security CCTV Camera
Outdoor security CCTV Camera
- 1/3' Sony SUPER HAD 2 CCDD 2 CCD
- Supports DC or Video Iris Lens
- BLC and AGC
- Auto White Balance
- Built-in Pre-AMP Audio
| Model Number | SX-8807AD-7 |
| Power Supply (+/-10 %) | DC12V |
| Resolution | Med-res. |
| Sensitivity (F1.2) | 0.3Lux |
| Chip | SONY Effioe-E |
| Pick-up Device | NEW 1/3' SONY HAD 2 CCD image sensorsensor |
| Picture Elements | NTSC: 811(H)×508(V), PAL: 795(H)×595(V)×595(V)595(V)×595(V) |
| H. Sync Frequency | NTSC: 15.734KHz, PAL: 15.625KHz |
| V. Sync. Frequency | NTSC: 59.94 Hz, PAL: 50 Hz |
| Synchronization | Internal |
| Horizontal Resolution | 700 TV lines |
| Back Light Compensation | ON/OFF Switchable |
| Electronic Shutter | ON/OFF Switchable, |
| Range: 1/50(1/60) ~ 1/100, 000 sec. | |
| Lens | CS/C Mount |
| Gamma Correction | 0.45 |
| S/N Ratio | More than 52 dB (AGC off) |
| Video Output | 1.0 Vp-p, 75 Ohm |
| Dimension (mm) | 122(L)× 61(W)× 47(H)× 47(H) 47(H)× 47(H) |
| Power Consumption (+/-10 %) | 110mA |
| Weight (g) | 480g |
| Storage Temperature | -30oC ~ +60oC |
| Operating Temperature | -10oC ~ +55oC |
If there is any question, please don't hesitate to contact us. We will try our best to cooperate with you.
