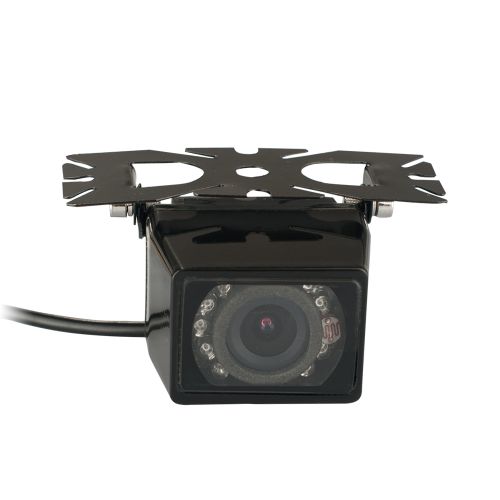

1/4" CMOS IR 9LEDs Adjustable Rear View Camera

1/4" CMOS IR 9LEDs Adjustable Rear View Camera

100w led lght bar cree 4d 23inch

100+
8 USD
200+
7.6 USD

加入意向
型号。 YF-LB-100W
外壳材质 合金
显示类型 反转图像
功能 夜间视力
芯片 CMOS
报警距离 2.5-0.35m
电源电压 DC12V
IR 9盏
商标 OEM
规范 31.5mmx37mmx24mm
HS编码 8525801390
适用型号 汽车,SUV,卡车
探头号码 1
接口 气塞
定义 420TVL
防水等级 IP67
探头直径 24毫米
防水 IP67
视角 120
运输包装 彩色包装
起源 中国
1/4“CMOS红外9寸可调式后视摄像机
型号。 YF-720T汽车倒车摄像头
图像传感器 CMOS
分辨率(电视线) 600 / 420TVL
有效像素 720*576/720*487
最小照度 0.1-0.5Lux
镜片角度(度) 150°°deg;°
电视系统 PAL / NTSC
电源(DCV) DC12V±1Vlusmn; 1Vlusmn;1V
能量消耗 <1W
电子快门 1/60(NTSC)1/50(PAL)1 /万秒
S / N比 ≥48dB48dB48dB
视频输出 1.0VP-p.75ohm
白平衡 汽车
agc&blc BLC; BLC 汽车
工作温度(摄氏度): -10〜+ 70(最大rh95%)
储存温度(摄氏度): -30〜+ 80(最大rh95%)
可选功能 镜像和原始图像图像image

1.质量保证:我们有非常严格的质量控制体系,确保在良好条件下的每个生产过程,所有产品将逐一仔细检查,以避免运输过程中的任何缺陷。
2.快速交货:作为实际和专业的制造商,我们有信心在最短的时间内安排您的订单!我们可以随时承诺快速交货。
最具竞争力的价格:最优惠的价格与优质的产品保证!
4.提供长期保修:18个月保修期长,任何由我厂造成的产品故障,我们将承担100%的责任问题!
OEM和ODM服务可用。able.
联系我们获取更多报价
Model NO. YF-LB-100W
Shell Material Alloy
Display Type Reverse Image
Function Night Vision
Chip CMOS
Alarming Distance 2.5-0.35m
Power Voltage DC12V
IR 9 LEDs
Trademark OEM
Specification 31.5mmx37mmx24mm
HS Code 8525801390
Applicable Model Car, SUV, Truck
Probe Number 1
Interface Air Plug
Definition 420TVL
Waterproof Grade IP67
Probe Diameter 24mm
Waterproof IP67
View Angle 120
Transport Package Color Packing
Origin China
1/4' CMOS IR 9Leds Adjustable Rear View Camera Camera
Model No. YF-720T car reverse camera
Images sensors CMOS
Resolution(TV Line) 600/420tvl
Effective pixels 720*576/720*487
Minimum illumination 0.1-0.5 Lux
lens Angle(Deg.) 150°°deg;°
TV System PAL/NTSC
Power Supply(DCV) DC12V±1Vlusmn;1Vlusmn;1V
Power Consumption <1W
Electronic shutter 1/60(NTSC)1/50(PAL)1/10,000second
S/N Ratio ≥48dB48dB48dB
Video output 1.0vp-p.75ohm
White Balance Auto
AGC & BLC; BLC; BLC Auto
Operating Temperature(Deg. C): -10~+70(RH95% Max.)
Storage Temperature(Deg. C): -30~+80(RH95% Max.)
Optional Function Mirror image & Original imageimageimage

1.High quality guaranteed: we have very strict quality control system to make sure every production process under well conditions,and all the products will be careful checked one by one to avoid any defects before shipping.
2. Fast delivery: as an actual and professional manufacturer,we have the confidence to arrange your order at the shortest time! we can always promise a rapid delivery.
3. Most competitive price : Most favorable price with high quality products guaranteed!
4. Long warranty offered: 18 months long warranty guaranteed,any product failure caused by our factory,we will take 100% responsibility for the problem!
5. OEM & ODM service available.lable.able.
Contact Us To Get More Quote Now
