1KVA / 800W UPS电源，单相不间断电源
大纲：
HP系列在线系列是具有较强适应性和灵活配置的产品，采用双转换纯体系结构，设计时可提供良好的解决方案，当电压过高或过低时，瞬时降压或阻尼振荡，高压脉冲，电压波动，浪涌电压，谐波失真和噪声干扰等频率波动条件，确保用户负载的安全可靠的电源;拥有先进的DSP数字控制技术;有效提高产品性能和系统可靠性，实现更高功率密度的集成化小型化。同时为满足用户对各方面的个性化需求，高频系列1k-on-line 20k提供了非常丰富的可扩展功能，可根据需要灵活配置。
功能特点：
1.突破性超紧凑设计和高功率密度，设备体积比同类产品小20％〜70％。
2.双转换在线设计，确保电源可靠性。
3.超宽输入电压/频率范围，适应严格的电网环境。
4.液晶显示屏，以便更直接方便地进行设置。
5.输入电压范围：120〜288 v，输出不降额，大大降低了传输电池的可能性，提高了电池寿命。
6.过载能力强：在标称电压范围内，过载130％10分钟，150％1分钟，满足客户负载要求。
7. 8引脚充电能力，充电能力可以设置，满足长时间延长电池充电速度，提高电池寿命
8.环保优良，节能特点，效率比同类产品高3-4％，同时可高达91％。
丰富的监控管理选项，提高系统可靠性。
技术规格及参数：
应用：
服务器，存储，网络设备，通信设备，自动化设备，精密仪器，医疗诊断设备，OFFICE终端，监控，安全系统，重要家用电器。
适用行业：
电信，金融，政府，医疗保健，教育，制造业，邮政物流，交通运输，商业/零售业。

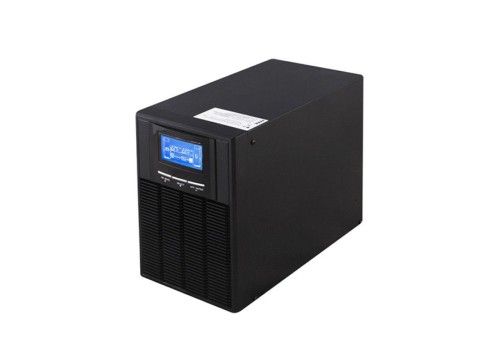

1KVA / 800W UPS Electrical Power Supply , Single phase Uninterruptible Power Supply
Outline:
HP series on-line series is the product that has strong adaptability and flexible configuration, adopt double conversion pure architecture, design, can provide a good solution when voltage too high or too low, transient voltage drop or damped oscillation, high voltage pulse, voltage fluctuation, surge voltage, harmonic distortion and noise disturbance, such as frequency rate fluctuation condition, so as to ensure the safe and reliable power supplies for user load ; With the advanced DSP digital control technology; Effectively improve the product performance and system reliability and achieve higher power density of integration miniaturization. At the same time in order to meet the personalized needs for users in all directions, high-frequency series 1 k - on-line 20 k provides a very rich extensible function, according to requirement, users can to be flexible configuration.
Functional features:
1. Breakthrough ultra compact design and high power density, equipment volume are smaller 20% ~ 70% than the same type product.
2. Double conversion on-line design, ensure the power supply reliability.
3. The super wide input voltage/frequency range,to adapt the severe power grid environment.
4. LCD display, in order to more directly and conveniently for setup.
5. input voltage range:120 ~ 288 v, output not derating, greatly reduce the probability of transfer cells, improve the battery life.
6. Strong overload capacity: within nominal voltage, overload 130% for 10 minutes, 150% for 1 minute, meet the customer load requirements.
7. 8 A lead charging ability, the ability of charging can be set up, meet the long time delay battery recharge quickly, improve the battery life
8. Excellent environmental protection, energy saving features, efficiency of 3-4% higher than the same products at the same time can be as high as 91%.
9. Rich monitoring management option, improve system reliability.
Technical specifications and parameters:
Application:
Servers, storage, network equipment, communications equipment, automation equipment, precision instruments, medical diagnostic equipment, OFFICE terminal, monitoring, security systems, important household appliances.
Applicable industry:
telecom, finance, government, health care, education, manufacturing, postal logistics, transportation, commercial/retail.
