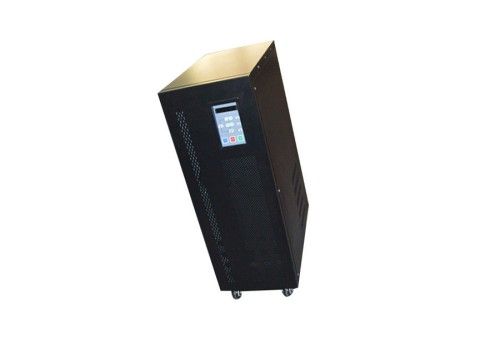

Double Conversion Online UPS Uninterruptible Power Supply 15kVA
双转换在线UPS不间断电源15kVA
议价
加入意向| 型号。 | gp1115ks |
| 用法 | 汽车，UPS，电力，电动自行车 |
| 放电率 | 低放电率 |
| 电解液 | 酸 |
| 充电 | 收费 |
| 运输包装 | 纸包装 |
| 起源 | 深圳 |
| 类型 | 铅酸电池 |
| 标称电压 | 220V或230V |
| 形状 | 方形电池 |
| 安装 | 开框架 |
| 商标 | Eyevison |
| 规范 | 34*27*15 |
| HS编码 | 8504402000 |
双转换在线UPS不间断电源15KVA 192VDC
应用：
1，变送器站，控制室，医疗器械
2，工厂生产设备
3，工矿企业，化工，石油化工生产设备
4，工作站集中供电，中大数据中心部门
5，工业自动化设备，贴片贴片机贴片设备
6，监控，安防系统，信息中心
7，其他（不允许中断的宝贵设备）
主要特征：
1，零切换时间，纯正弦波输出
2，耐用可靠的工业设计，负载兼容性强
3，直流紧急启动功能
4，双转换在线设计，包括输出隔离变压器
5，宽输入电压设计，卓越的电网适应性
6，充分满足荷载从0到100％
7，完善的保护功能，标准配置有防雷和浪涌保护
8，智能监控功能，可选配SNMP卡
9，大屏幕高清液晶中文和图形显示
技术规格及参数：
模型 | gp1115ks |
标称容量（VA） | 15KVA |
标称容量（VA） | 220 vac或230vac |
输入电压范围 | （150-310）真空 |
输出电压范围 | 50（60）Hz±25％um; 25％usmn;25% |
频率跟踪率 | 赫兹/秒 |
输入功率因数（PF） | >0.98 |
最大输入电流 | 82A |
输出电压 | 220VAC±1％lusmn; 1％lusmn;1% |
输出频率（电池模式） | 50 / 60Hz的±0.5％SMN; 0.5％smn;0.5% |
功率因数 | 0.8滞后 |
波形失真 | ≤2％线性负载，≤3％非线性负载ar load |
过载能力 | 输出将在过载后交流旁路电源110-150％保持5min;输出将在过载后交换电源150％保持300ms |
保护功能 | 过载，电池低电压，输出电压，输出过压，系统故障，过温，限流保护是额定电流的1.3倍 |
切换时间 | 0毫秒 |
电池电压 | 192VDC |
充电时间 | 8-10小时完成90％的容量 |
LED显示屏 | 表示电池电压低，交流，逆变，旁路，UPS异常，过载指示 |
液晶显示 | 输入和输出电压，频率，电池电压，负载百分比，内部温度 |
工作温度 | 0-40ºCordm;Çordm;C |
相对湿度 | 0-95％不减弱 |
储存温度 | -25ºC-55ºcc-55ºCrdm;CC-55ºC |
噪声 | <55dB(distance box 1M )1M ) |
净重/公斤） | 150 |
大纲：
双转换在线GP11系列的频率是针对中国电网环境和负载系统要求的高可靠性供电和精心设计的智能频率在线UPS。系统设计为双转换在线拓扑的频率，完全消除了电网干扰，使稳压稳压器的UPS输出，滤除噪声，不受网格干扰和纯正弦低失真波电源。双转换在线GP11系列采用DSP数字设计，高速16位数字芯片和ASIC的DDC控制技术与先进的大功率器件IGBT和SCR完美结合，完美结合，设计了具有较大功能的智能UPS容量大，可靠性高，性能优异，容量从1 kva到20 kva。
| Model NO. | GP1115KS |
| Usage | Car, UPS, Electric Power, Electric Bicycle |
| Discharge Rate | Low Discharge Rate |
| Electrolyte | Acid |
| Rechargeable | Chargeable |
| Transport Package | Paper Packaging |
| Origin | Shenzhen |
| Type | Lead-Acid Batteries |
| Nominal Voltage | 220V or 230V |
| Shape | Square Battery |
| Installation | Open Frame |
| Trademark | Eyevison |
| Specification | 34*27*15 |
| HS Code | 8504402000 |
Double Conversion Online UPS Uninterruptible Power Supply 15KVA 192VDC
Application:
1, Transmitter station, control room, medical instruments
2, Factory production equipment
3, Industrial and mining equipment, chemical industry, petrochemical production equipment
4, centralized power supply for Workstations, Medium and large data centers department
5, Industrial automatic equipment, SMT chip mounter equipment
6, monitor , security systems, information center
7, Others (the valuable equipment that do not allow outage)
Key features:
1, Zero switching time, pure sine wave output
2, Durable and reliable industrial design, strong load compatibility
3, DC emergency start function
4, Double conversion on-line design, including output isolation transformer
5, Wide input voltage design, the remarkable grid adaptability
6, Fully meet saltus of the load from 0 to 100%
7, Perfect protection function, standard configuration have lightning and surge protection
8, Intelligent monitoring function, can optional SNMP card
9, Large-screen high-definition LCD Chinese and graphical display
Technical specifications and parameters:
Model | GP1115KS |
Nominal capacity (VA) | 15KVA |
Nominal capacity (VA) | 220 VAC or 230VAC |
Input voltage range | (150-310)VAC |
Out put voltage range | 50 (60) Hz±25%usmn;25%usmn;25% |
Frequency tracking rate | 1Hz/s |
The input power factor (PF) | >0.98 |
Maximum input current | 82A |
output voltage | 220VAC±1%lusmn;1%lusmn;1% |
Output frequency (battery mode) | 50/60Hz±0.5%smn;0.5%smn;0.5% |
power factor | 0.8 Lag |
Waveform distortion | ≤2% linear load,≤3% nonlinear loadar loadar load |
overload capacity | Output will exchange bypass the power supply after overload110-150% maintain 5min;Output will exchange bypass the power supply after overload 150% maintain 300ms |
Protection function | overload,Battery low voltage,output voltage,output over voltage,system fault,over-temperature,Current limiting protection is 1.3 times of the nominal current |
switching time | 0ms |
battery voltage | 192VDC |
charging time | 8-10hour finished 90% capacity |
LED display | Indicates a battery low voltage,AC,contravariant,bypass,UPS abnormal,Overload Indication |
LCD | Input and output voltage,frequency,battery voltage,load percentage,inner temperature |
operating temperature | 0-40ºCordm;Cordm;C |
relative humidity | 0-95% Non -condensate |
Storage Temperature | -25ºC-55ºCC-55ºCrdm;CC-55ºC |
Noise | <55dB(distance box 1M )1M ) |
Net Weight (kg) | 150 |
Outline:
The frequency of Double conversion on-line GP11 series aim at China power grid environment and load system requirement for the high reliability of power supply and carefully designed intelligent frequency on-line UPS . System designed for The frequency of Double conversion on-line topology, completely eliminate the distractions from the grid to make the output of the UPS for a stabilized voltage regulator, filter out noise, not be interference by grid wave interference and low distortion of pure sine wave power supply. The frequency of Double conversion on-line GP11 series adopt perfect combination by DSP digital design, high-speed 16 bit digital chips and DDC control technology of ASIC with advanced high power devices IGBT and SCR perfect combination, designed the intelligent UPS that have the large capacity, high reliability and excellent performance and the capacity from 1 kva to 20 kva.
