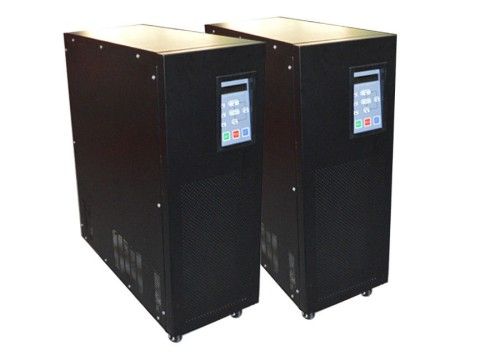

LED Display 220 VAC Commercial UPS Battery Backup Systems 192VDC 34A
LED显示屏220 VAC商用UPS电池备用系统192VDC 34A
议价
加入意向| 型号。 | gp1106ks |
| 用法 | 汽车，UPS，电力，电动自行车 |
| 放电率 | 高放电率 |
| 电解液 | 酸 |
| 充电 | 收费 |
| 毛重（KG） | 85 |
| 电池电压 | 192VDC |
| 最大输入电流 | 34A |
| 运输包装 | 纸包装 |
| 起源 | 深圳 |
| 类型 | 铅酸电池 |
| 标称电压 | 220VAC |
| 形状 | 方形电池 |
| 安装 | 开框架 |
| 净重/公斤） | 65 |
| 噪声 | <55db( Distance Box 1m ) 1m ) |
| 功率因数 | 0.8滞后 |
| 商标 | Eyevison |
| 规范 | 34*27*15 |
| HS编码 | 8504402000 |
LED显示屏220 VAC商用UPS电池备用系统192VDC 34A
主要特征：
直流紧急启动功能
2.完善的保护功能，标准配置有防雷和浪涌保护
智能监控功能，可选配SNMP卡
4.大屏幕高清液晶中文和图形显示
5.满负荷的盐从0到100％
6.双转换在线设计，包括输出隔离变压器
7.宽输入电压设计，卓越的电网适应性
8.零切换时间，纯正弦波输出
9.耐用可靠的工业设计，强大的负载兼容性
大纲：
双转换在线GP11系列的频率是针对中国电网环境和负载系统要求的高可靠性供电和精心设计的智能频率在线UPS。系统设计为双转换在线拓扑的频率，完全消除了电网干扰，使稳压稳压器的UPS输出，滤除噪声，不受网格干扰和纯正弦低失真波电源。双转换在线GP11系列采用DSP数字设计，高速16位数字芯片和ASIC的DDC控制技术与先进的大功率器件IGBT和SCR完美结合，完美结合，设计了具有较大功能的智能UPS容量大，可靠性高，性能优异，容量从1 kva到20 kva。
技术规格及参数：
模型 | gp1106ks |
标称容量（VA） | 6KVA |
标称容量（VA） | 220 vac或230vac |
输入电压范围 | （150-310）真空 |
输出电压范围 | 50（60）Hz±25％um; 25％usmn;25% |
频率跟踪率 | 赫兹/秒 |
输入功率因数（PF） | >0.98 |
最大输入电流 | 34A |
输出电压 | 220VAC±1％lusmn; 1％lusmn;1% |
输出频率（电池模式） | 50 / 60Hz的±0.5％SMN; 0.5％smn;0.5% |
功率因数 | 0.8滞后 |
波形失真 | ≤2％线性负载，≤3％非线性负载ar load |
过载能力 | 输出将在过载后交流旁路电源110-150％保持5min;输出将在过载后交换电源150％保持300ms |
保护功能 | 过载，电池低电压，输出电压，输出过压，系统故障，过温，限流保护是额定电流的1.3倍 |
切换时间 | 0毫秒 |
电池电压 | 192VDC |
充电时间 | 8-10小时完成90％的容量 |
LED显示屏 | 表示电池电压低，AB，逆变器，旁路，UPS异常，过载指示 |
液晶显示 | 输入和输出电压，频率，电池电压，负载百分比，内部温度 |
工作温度 | 0-40ºCordm;Çordm;C |
相对湿度 | 0-95％不减弱 |
储存温度 | -25ºC-55ºcc-55ºCrdm;CC-55ºC |
噪声 | <55dB( distance box 1M )1M ) |
净重/公斤） | 65 |
总重量（kg） | 85 |
有竞争力的优势：
中央电视台业界领先，专业的制造商
2.高品质
竞争力合理的价格
最好的售前，售中和售后服务
5.专业技术支持
ce，fcc，rohs通过
| Model NO. | GP1106KS |
| Usage | Car, UPS, Electric Power, Electric Bicycle |
| Discharge Rate | High Discharge Rate |
| Electrolyte | Acid |
| Rechargeable | Chargeable |
| Grossweight(Kg) | 85 |
| Battery Voltage | 192VDC |
| Maximum Input Current | 34A |
| Transport Package | Paper Packaging |
| Origin | Shenzhen |
| Type | Lead-Acid Batteries |
| Nominal Voltage | 220VAC |
| Shape | Square Battery |
| Installation | Open Frame |
| Net Weight (Kg) | 65 |
| Noise | <55db( Distance Box 1m ) 1m ) |
| Power Factor | 0.8 Lag |
| Trademark | Eyevison |
| Specification | 34*27*15 |
| HS Code | 8504402000 |
LED Display 220 VAC Commercial UPS Battery Backup Systems 192VDC 34A
Key features:
1. DC emergency start function
2. Perfect protection function, standard configuration have lightning and surge protection
3. Intelligent monitoring function, can optional SNMP card
4. Large-screen high-definition LCD Chinese and graphical display
5. Fully meet saltus of the load from 0 to 100%
6. Double conversion on-line design, including output isolation transformer
7. Wide input voltage design, the remarkable grid adaptability
8. Zero switching time, pure sine wave output
9. Durable and reliable industrial design, strong load compatibility
Outline:
The frequency of Double conversion on-line GP11 series aim at China power grid environment and load system requirement for the high reliability of power supply and carefully designed intelligent frequency on-line UPS . System designed for The frequency of Double conversion on-line topology, completely eliminate the distractions from the grid to make the output of the UPS for a stabilized voltage regulator, filter out noise, not be interference by grid wave interference and low distortion of pure sine wave power supply. The frequency of Double conversion on-line GP11 series adopt perfect combination by DSP digital design, high-speed 16 bit digital chips and DDC control technology of ASIC with advanced high power devices IGBT and SCR perfect combination, designed the intelligent UPS that have the large capacity, high reliability and excellent performance and the capacity from 1 kva to 20 kva.
Technical specifications and parameters:
Model | GP1106KS |
Nominal capacity (VA) | 6KVA |
Nominal capacity (VA) | 220 VAC or 230VAC |
Input voltage range | (150-310)VAC |
Out put voltage range | 50 (60) Hz±25%usmn;25%usmn;25% |
Frequency tracking rate | 1Hz/s |
The input power factor (PF) | >0.98 |
Maximum input current | 34A |
output voltage | 220VAC±1%lusmn;1%lusmn;1% |
Output frequency (battery mode) | 50/60Hz±0.5%smn;0.5%smn;0.5% |
power factor | 0.8 Lag |
Waveform distortion | ≤2% linear load,≤3% nonlinear loadar loadar load |
overload capacity | Output will exchange bypass the power supply after overload110-150% maintain 5min;Output will exchange bypass the power supply after overload 150% maintain 300ms |
Protection function | overload,Battery low voltage,output voltage,output over voltage,system fault,over-temperature,Current limiting protection is 1.3 times of the nominal current |
switching time | 0ms |
battery voltage | 192VDC |
charging time | 8-10hour finished 90% capacity |
LED display | Indicates a battery low voltage,AB,contravariant,bypass,UPS abnormal,Overload Indication |
LCD | Input and output voltage,frequency,battery voltage,load percentage,inner temperature |
operating temperature | 0-40ºCordm;Cordm;C |
relative humidity | 0-95% Non -condensate |
Storage Temperature | -25ºC-55ºCC-55ºCrdm;CC-55ºC |
Noise | <55dB( distance box 1M )1M ) |
Net Weight (kg) | 65 |
GrossWeight (kg) | 85 |
Competitive advantages:
1. Leading and professional manufacturer in CCTV industry
2. High quality
3. Competitive and reasonable price
4. Best pre-sale,sale and after-sale service
5. Professional technical support
6. CE,FCC,RoHS passed
