High Definition P3/P4/P5/P6 Indoor Full Color LED Display
高清晰度P3 / P4 / P5 / P6室内全彩LED显示屏
高品质的高清晰度P3 / P4 / P5 / P6室内全彩led显示屏
Elnor室内LED显示屏特别适用于巨大的室内广告屏幕。使用可以接受DVI，VGA，HDMI，S-VIDEO，复合，YUV等信号的同步系统。它可以显示视频，图像，文本的节目。通过实时，同步，清除消息显示每个信息，并可显示二维或三维动画，视频，电视，VCD节目和直播。
室内led显示屏作为新的广告屏，屏幕设计稳定，坚固，耐用，便于户外大尺寸
规格
主要特点
1.优秀的视觉效果，清晰精致，平整度好，视角好，混合色彩鲜明，
2.易于组装，安装和运输，简单包装，使用方便，散热性好，稳定性高。
优点
1Rich经验：成立于2005年;熟悉LED显示屏和LED灯的技术和材料。
2A绝对OEM服务：根据您的不同需求（如质量，价格等）为您提供最合适的解决方案。在一种材料中至少提供3种不同类型供您选择，并提供最低成本的定制服务。
3强大的研发能力：优秀的工程师不断开发新产品和改进。
4Good质量：我们的LED显示板的稳定性能。
5周到的服务：我们始终为您服务的心灵和灵魂，努力使我们的产品最大程度满足您的需求。
LED显示器在巨型LED屏幕，移动LED广告屏幕，用于室内和户外以及用于大规模运动的电子显示器领域中具有广泛的经验，或者用于足球场的LED电子显示器，用于道路，学校，商店和小镇的LED电子屏幕产品和服务。
大型室内/室外LED屏幕终于征服了城市环境，并在户外广告的市场上剪下了一个舒适的地方。每天都以这种方式传送广告。
我们所有的屏幕Led巨人事件的目标是模块化的结构，能够定制任何尺寸和容易更换。
应用：
这种LED全彩led视频墙适用于广告，城市美化，信息宣传，大问题和相关活动。
应用领域：
室内广告，数字广告牌，广告在大公司
1.体育馆，场地，游乐场。
2.机场，公共汽车站和铁路客运站。
3.商场，百货公司，银行和汽车经销商的门面。
4.建筑和社会项目，城市信息系统。
5.展览会，音乐会，节日，车展和其他公共活动。
Elnor室内LED显示屏特别适用于巨大的室内广告屏幕。使用可以接受DVI，VGA，HDMI，S-VIDEO，复合，YUV等信号的同步系统。它可以显示视频，图像，文本的节目。通过实时，同步，清除消息显示每个信息，并可显示二维或三维动画，视频，电视，VCD节目和直播。
室内led显示屏作为新的广告屏，屏幕设计稳定，坚固，耐用，便于户外大尺寸
规格
| 编号。 | P3 | P4 | P5 | P6 |
| 分类 | 饱满的色彩 | 饱满的色彩 | 饱满的色彩 | 饱满的色彩 |
| 像素间距 | 3mm | 4mm | 5mm | 6mm |
| 模块尺寸（mm * mm） | 96*96/192*96 | 128*128 | 160*160 | 192*96 |
| 像素密度 | 111111点/ m2 | 62500点/ m2 | 40000点/ m2 | 27777点/ m2 |
| 像素组成 | 1r1g1b | 1r1g1b | 1r1g1b | 1r1g1b |
| LED封装 | smd2020 | smd2020 | smd3528 | smd3528 |
| 模块的分辨率 | 32*32/64*32 | 32*32 | 32*32 | 32*16 |
| 最佳观看距离 | 2m | 2m | 3m | 4m |
| 最佳视角（水平/垂直） | 140°/ 120° | 140°/ 120° | 140°/ 120° | 140°/ 120° |
| 最大功耗 | 1300W / m 2 | 1300W / m 2 | 1200W / m 2 | 1200W / m 2 |
| AVG功耗 | 250〜550W / m 2 | 250〜550W / m 2 | 300〜650W / m2 | 300〜650W / m2 |
| 标准机柜尺寸（mm） | 576*576 | 512*512 | 640*640 | 768*768 |
| 标准机柜分辨率 | 192*192 | 128*128 | 128*128 | 128*128 |
| 标准机柜重量 | 15kg | 12kg | 18kg | 30kg |
| 驱动方法 | 1/16扫描 | 1/16扫描 | 1/16扫描 | 1/8扫描 |
| 帧频率 | 60Hz / s | 60Hz / s | 60Hz / s | 60Hz / s |
| 刷新率 | ≥1000hz | ≥1000hz | ≥1000hz | ≥1000hz |
| 白平衡亮度 | ≥1000cd/ m2 | ≥1300cd/ m2 | ≥1500cd/ m2 | ≥1800cd/ m2 |
| 工作/存储环境温度 | 工作温度：-20°C〜50°C储存温度：-40°C〜60°C | |||
| 工作环境湿度 | 工作：10％ - 95％HR存储：10％ - 95％HR | |||
| IP级 | ip20〜ip54 | |||
| 工作电压 | AC 220±10％或110±10％ | |||
| 灰度 | 每种颜色14位 | |||
| 亮度调整 | 每种颜色（RGB）的256级可以手动调整 | |||
| 信号输入 | rf，s-video，rgb，rgbhv，yuv，ycect | |||
| 控制系统 | PCTV非线性编辑卡+ DVI显示卡+主控卡+光纤传输（可选） | |||
| mtbf | ≥5000小时 | |||
| 寿命 | ≥100000小时 | |||
| 故障点率 | 小于0.0001 | |||
| 传输距离 | LAN电缆小于100m;光纤传输：MMF小于500m，SMF小于20km | |||
| 刷新率可以通过使用更多的接收器更高：其他参数可以根据不同的应用程序更改。 | ||||
主要特点
1.优秀的视觉效果，清晰精致，平整度好，视角好，混合色彩鲜明，
2.易于组装，安装和运输，简单包装，使用方便，散热性好，稳定性高。
优点
1Rich经验：成立于2005年;熟悉LED显示屏和LED灯的技术和材料。
2A绝对OEM服务：根据您的不同需求（如质量，价格等）为您提供最合适的解决方案。在一种材料中至少提供3种不同类型供您选择，并提供最低成本的定制服务。
3强大的研发能力：优秀的工程师不断开发新产品和改进。
4Good质量：我们的LED显示板的稳定性能。
5周到的服务：我们始终为您服务的心灵和灵魂，努力使我们的产品最大程度满足您的需求。
LED显示器在巨型LED屏幕，移动LED广告屏幕，用于室内和户外以及用于大规模运动的电子显示器领域中具有广泛的经验，或者用于足球场的LED电子显示器，用于道路，学校，商店和小镇的LED电子屏幕产品和服务。
大型室内/室外LED屏幕终于征服了城市环境，并在户外广告的市场上剪下了一个舒适的地方。每天都以这种方式传送广告。
我们所有的屏幕Led巨人事件的目标是模块化的结构，能够定制任何尺寸和容易更换。
应用：
这种LED全彩led视频墙适用于广告，城市美化，信息宣传，大问题和相关活动。
应用领域：
室内广告，数字广告牌，广告在大公司
1.体育馆，场地，游乐场。
2.机场，公共汽车站和铁路客运站。
3.商场，百货公司，银行和汽车经销商的门面。
4.建筑和社会项目，城市信息系统。
5.展览会，音乐会，节日，车展和其他公共活动。
Top quality high definition P3/P4/P5/P6 Indoor full color led display
Elnor Indoor LED display screen is special made for application of giant indoor advertising screen. Use synchronous system which can accept signals DVI, VGA, HDMI, S-VIDEO, Complex, YUV etc. It can display programs of video, image, text. Displaying every information by real time, synchronous,clear message and can show two or three dimension animation, video, TV, VCD program and live broadcast.
Indoor led display as a new advertising screen, the screen will be designed stably, sturdy, durable, easy for outdoor big size
Specifications
Main features
1. Excellent visual effect, clear and exquisite, Good flatness, good viewing angle, vivid mixed colors,
2. Easy to assembly, install and transport with simple packing and convenient use, excellent heat-sinking, high stability .
Advantages
1Rich experience:Established in 2005;Familiar with technical and material about LED display screen and LED light.
2Absolute OEM service:Providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.
3Powerful R&D ability:Excellent engineers are constantly developing new products and improving them.
4Good quality:Stable performance about our led display board.
5Thoughtful service:We always serve you heart and soul, striving to make our products meet your demands in maximum degree.
LED displays have extensive experience in the field of electronic displays of giant LED screens, mobile LED advertising screens, for indoors and outdoors and for mass campaigns, or electronic displaysLED's giants for football stadiums, LED electronic screens for roads, schools, orshops andmalls to highlight products and services.
The large indoor/outdoor LED screens finally conquered the city environment and cut a comfortable place in the market for outdoor advertisementThousands of advertisements are transmitted in this way daily.
All our screens Led Giants events are aimed at modular structure, able to tailor any size and easy for replacement.

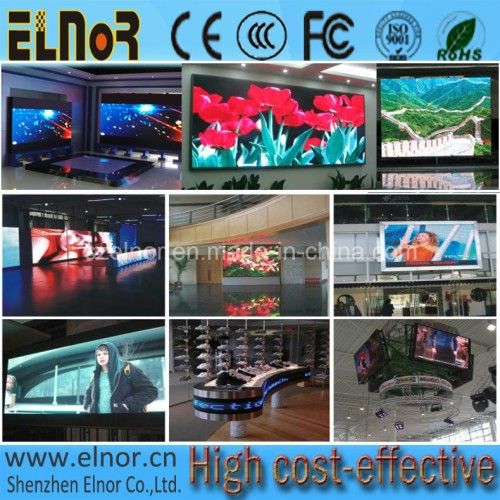

Applications:
This kind of LED full color led video wall is appliled for advertising, city beautifying, information publicity, great concerns and relative activities.
Application Areas :
Indoor advertising, digital billboards, advertising in big companies
1. Sports halls, fields, playgrounds.
2. Airports, bus stations and railway passenger terminals.
3. Facades of shopping malls, department stores, banks and car dealerships.
4. Architecture and social projects, information systems in cities.
5. Show-business, concerts, festivals, motor shows and other public events.
Elnor Indoor LED display screen is special made for application of giant indoor advertising screen. Use synchronous system which can accept signals DVI, VGA, HDMI, S-VIDEO, Complex, YUV etc. It can display programs of video, image, text. Displaying every information by real time, synchronous,clear message and can show two or three dimension animation, video, TV, VCD program and live broadcast.
Indoor led display as a new advertising screen, the screen will be designed stably, sturdy, durable, easy for outdoor big size
Specifications
| Item No. | P3 | P4 | P5 | P6 |
| Classification | Full color | Full color | Full color | Full color |
| Pixel pitch | 3mm | 4mm | 5mm | 6mm |
| Size of module (mm*mm) | 96*96/192*96 | 128*128 | 160*160 | 192*96 |
| Pixel density | 111111 dots/m2 | 62500 dots/m2 | 40000 dots/m2 | 27777 dots/m2 |
| Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED encapsulation | SMD2020 | SMD2020 | SMD3528 | SMD3528 |
| Resolution of module | 32*32/64*32 | 32*32 | 32*32 | 32*16 |
| Best viewing distance | 2m | 2m | 3m | 4m |
| Best viewing angle (Horizontal/Vertical) | 140°/120° | 140°/120° | 140°/120° | 140°/120° |
| Max power consumption | 1300 W/m2 | 1300 W/m2 | 1200W/m2 | 1200W/m2 |
| AVG power consumption | 250~550 W/m2 | 250~550 W/m2 | 300~650W/m2 | 300~650W/m2 |
| Size of standard cabinet(mm) | 576*576 | 512*512 | 640*640 | 768*768 |
| Resolution of standard cabinet | 192*192 | 128*128 | 128*128 | 128*128 |
| Weight of standard cabinet | 15kg | 12kg | 18kg | 30kg |
| Driving method | 1/16 Scan | 1/16 Scan | 1/16 Scan | 1/8 Scan |
| Frame frequency | 60Hz/s | 60Hz/s | 60Hz/s | 60Hz/s |
| Refresh rate | ≥1000HZ | ≥1000HZ | ≥1000HZ | ≥1000HZ |
| White balance brightness | ≥1000cd/m2 | ≥1300cd/m2 | ≥1500cd/m2 | ≥1800cd/m2 |
| Working /Storage environment temperature | Working:-20°C~50°C Storage:-40°C~60°C | |||
| Operating ambient humidity | Working:10%--95% HR Storage:10%--95% HR | |||
| IP grade | IP20~IP54 | |||
| Working voltage | AC 220±10% or 110±10% | |||
| Grey scale | 14 bits per color | |||
| Brightness adjustment | 256 levels of each color (RGB) can be adjusted manually | |||
| Signal input | RF, S-Video, RGB, RGBHV, YUV, YCEct | |||
| Control system | PCTV non-linear editing card+ DVI display card+ main controller card+ optical fibre transmission ( optional) | |||
| MTBF | ≥5000 hours | |||
| Life span | ≥100000 hours | |||
| Malfunction dot rate | Less than0.0001 | |||
| Transmission distance | LAN cable less than100m;Optic fiber transmission:MMF less than 500m, SMF less than 20km | |||
| Refresh rate can be higher by using more receivers:Other parameter can be changed according to different application. | ||||
Main features
1. Excellent visual effect, clear and exquisite, Good flatness, good viewing angle, vivid mixed colors,
2. Easy to assembly, install and transport with simple packing and convenient use, excellent heat-sinking, high stability .
Advantages
1Rich experience:Established in 2005;Familiar with technical and material about LED display screen and LED light.
2Absolute OEM service:Providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.
3Powerful R&D ability:Excellent engineers are constantly developing new products and improving them.
4Good quality:Stable performance about our led display board.
5Thoughtful service:We always serve you heart and soul, striving to make our products meet your demands in maximum degree.
LED displays have extensive experience in the field of electronic displays of giant LED screens, mobile LED advertising screens, for indoors and outdoors and for mass campaigns, or electronic displaysLED's giants for football stadiums, LED electronic screens for roads, schools, orshops andmalls to highlight products and services.
The large indoor/outdoor LED screens finally conquered the city environment and cut a comfortable place in the market for outdoor advertisementThousands of advertisements are transmitted in this way daily.
All our screens Led Giants events are aimed at modular structure, able to tailor any size and easy for replacement.
Applications:
This kind of LED full color led video wall is appliled for advertising, city beautifying, information publicity, great concerns and relative activities.
Application Areas :
Indoor advertising, digital billboards, advertising in big companies
1. Sports halls, fields, playgrounds.
2. Airports, bus stations and railway passenger terminals.
3. Facades of shopping malls, department stores, banks and car dealerships.
4. Architecture and social projects, information systems in cities.
5. Show-business, concerts, festivals, motor shows and other public events.
