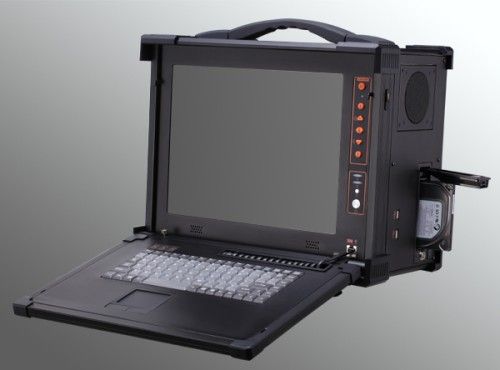

15′′ Industrial Portable Computer (PIP-600)
15“工业便携式计算机（PIP-600）
议价
加入意向| 型号。 | PIP-600 |
| 屏幕尺寸 | 11-15''''ime;′′′ |
| 安装 | 横 |
| cpu类型 | CPU插座LGA1155 / 1150 Intel Core I7 / I5 / I3系列 |
| 电源类型 | ATX |
| 硬盘机架类型 | 板类型 |
| 饰品 | CD-Driver，手册 |
| 材料 | 工业双铝合金 |
| 记忆 | 支持2GB / 4GB / 8GB（可选） |
| 键盘 | 超薄88键 |
| 电源 | atx 350w，电源输入：ac 90〜264v @ 50〜60hz |
| 规范 | CE / FCC /符合RoHS / CCC |
| 类型 | IPC |
| 触摸屏 | 没有触摸屏 |
| 应用 | 产业 |
| CPU卡大小 | ATX主板 |
| 案例类型 | 工业案例 |
| 系统扩展槽 | 7槽 |
| 中央处理器 | 插槽LGA1155 / 1150 Intel Core I7 / I5 / I3系列（选件） |
| 芯片组 | 支持Intel Q77 / Q87芯片组（可选） |
| 扩展槽 | 支持7 *全尺寸扩展槽。 |
| 操作系统 | Wes7-Ws7p，Win7 PRO，Win 8等 |
| 商标 | pontron |
| 起源 | 中国 |
主要特征
15“下行便携式工业计算机
铝镁合金底盘
支持7×全尺寸扩展槽n Slots
15'TFT LCD，分辨率1024X76
集成超薄DVD-RW，88键键盘，触摸板
支持1×3.5'HDD，1×5.25“光盘驱动器5.25”光盘驱动器' Disc driver
WiFi可选
介绍
PIP-600是一款向下工业便携式计算机，最多可提供7个全尺寸扩展槽，并集成了高亮度LCD，铝镁合金底盘。它可以适应任何复杂的环境，并且还为便携式计算机提供成本效益，永久性，多功能标准平台。
15“下行便携式工业计算机
铝镁合金底盘
支持7×全尺寸扩展槽n Slots
15'TFT LCD，分辨率1024X76
集成超薄DVD-RW，88键键盘，触摸板
支持1×3.5'HDD，1×5.25“光盘驱动器5.25”光盘驱动器' Disc driver
WiFi可选
介绍
PIP-600是一款向下工业便携式计算机，最多可提供7个全尺寸扩展槽，并集成了高亮度LCD，铝镁合金底盘。它可以适应任何复杂的环境，并且还为便携式计算机提供成本效益，永久性，多功能标准平台。
| 材料 | 工业双铝合金 | |
| 母板 | 支持Micro ATX / ATX / EATX主板安装空间（可选） | |
| 中央处理器 | 支持CPU插槽LGA1155 / 1150 Intel Core i7 / i5 / i3系列（可选） | |
| 芯片组 | 支持Intel Q77 / Q87芯片组（可选） | |
| 显示 | 15“TFT LCD，350nits（可选））tional) | |
| 解析度 | 1024（w）×768（h）768（h） 768(H) | |
| 记忆 | 支持2GB / 4GB / 8GB（可选） | |
| 存储 | sata ssd / hdd（可选） | |
| 操作系统菜单 | 支持的 | |
| 扬声器 | 2 *扬声器，2W。 | |
| 扩展槽 | 支持7 *全尺寸扩展槽。 | |
| 风扇 | 1 *风扇 | |
| dvd±rwusmn; RWusmn; RW | 支持的。 | |
| 硬/碟驱动 | 1 * 3.5“硬盘，1 * 5.25”驱动器 | |
| 键盘 | 超薄88键 | |
| 触摸板 | 支持的 | |
| 前控制 | 1 x电源按钮，1 x锁定按钮，1 x RF按钮，5 x程序功能按钮 | |
| 操作系统 | WES7-WS7P，Win7 pro，Win 8等 | |
| 机械冲击 | 10G @ 11ms 30G @ 11ms | |
| 振动 | 0.4Grms（10〜500Hz）1.12Grms（10〜500Hz） | |
| 电源 | ATX 350W，电源输入：AC 90〜264V @ 50〜60Hz | |
| 尺寸 | 425 x 335 x 230毫米 | |
| 净重 | 12公斤 | |
| 总重量 | 15公斤 | |
| 工作温度 | 0~+50 | |
| 储存温度 | -20~+60 | |
| 湿度 | 10〜90％冷凝 5〜95％非冷凝 | |
| 认证 | CE，FCC | |
| 订购信息 | PIP-600A：15“工业下行便携式电脑，W / 15'TFTLCD /键盘/触摸板/ 90〜264V AC 350W /主板-Q77 / CPU i3-3.3G /内存4GB /内存4GB | |
| Model NO. | PIP-600 |
| Screen Size | 11-15′′′′ime;′′′ |
| Installation | Horizontal |
| CPU Type | CPU Socket LGA1155/1150 Intel Core I7/I5/I3 Series |
| Power Supply Type | ATX |
| Hard Disk Rack Type | Board Type |
| Accessories | CD-Driver, Manual |
| Material | Industrial Dual Al-Alloy |
| Memory | Supports 2GB/4GB/8GB(Optional) |
| Keyboard | Ultrathin 88keys |
| Power Supply | ATX 350W, Power Input: AC 90~264V@50~60Hz |
| Specification | CE/FCC/ROHS/CCC |
| Type | IPC |
| Touch Screen | Without Touch Screen |
| Application | Industrial |
| CPU Card Size | ATX Motherboard |
| Case Type | Industrial Case |
| System Expansion Slot | 7 Slot |
| CPU | Socket LGA1155/1150 Intel Core I7/I5/I3 Series(Opt |
| Chipset | Supports Intel Q77/Q87 Chipset (Optional) |
| Expansion Slot | Supports 7* Full-Sized Expansion Slot. |
| Operating System | Wes7-Ws7p,Win7 PRO, Win 8 etc |
| Trademark | PONTRON |
| Origin | China |
Main feature
15' Downward Portable Industrial Computermputer
Aluminum-Magnesium Alloy Chassis
Supports 7× Full-Size Expansion Slotsn Slotsn Slots
15'TFT LCD, with 1024X76 resolutionlution
Integrated with ultra-slim DVD-RW, 88keys keyboard, Touchpad
Support 1× 3.5'HDD, 1× 5.25'' Disc driver5.25'' Disc driver' Disc driver
WiFi Optional
Introduction
PIP-600 is a downward industrial portable computer, which offers at most 7 full-size expansion slots and integrates with high brightness LCD, Aluminum-Magnesium Alloy chassis. It can adapt to any complicated environment and it also offers cost-effectiveness, permanent, multi-functional standard platform for portable computers.
15' Downward Portable Industrial Computermputer
Aluminum-Magnesium Alloy Chassis
Supports 7× Full-Size Expansion Slotsn Slotsn Slots
15'TFT LCD, with 1024X76 resolutionlution
Integrated with ultra-slim DVD-RW, 88keys keyboard, Touchpad
Support 1× 3.5'HDD, 1× 5.25'' Disc driver5.25'' Disc driver' Disc driver
WiFi Optional
Introduction
PIP-600 is a downward industrial portable computer, which offers at most 7 full-size expansion slots and integrates with high brightness LCD, Aluminum-Magnesium Alloy chassis. It can adapt to any complicated environment and it also offers cost-effectiveness, permanent, multi-functional standard platform for portable computers.
| Material | Industrial dual Al-alloy | |
| Motherboard | Supports Micro ATX / ATX / EATX Motherboard Installation Space left(Optional) | |
| CPU | Supports CPU Socket LGA1155/1150 Intel Core i7/i5/i3 Series(Optional) | |
| Chipset | Supports Intel Q77/Q87 Chipset (Optional) | |
| Display | 15″ TFT LCD ,350nits(Optional)tional)tional) | |
| Resolution | 1024(W) × 768(H) 768(H) 768(H) | |
| Memory | Supports 2GB/4GB/8GB(Optional) | |
| Storage | SATA SSD/HDD(Optional) | |
| OS menu | Supported | |
| Speaker | 2*speaker, 2W. | |
| Expansion slot | Supports 7* full-sized expansion slot. | |
| Fan | 1* Fan | |
| DVD ± RWusmn; RWusmn; RW | Supported. | |
| Hard/Disc driver | 1*3.5'' HDD, 1*5.25''Disc Driver | |
| Keyboard | Ultrathin 88keys | |
| Touch pad | Supported | |
| In Front Control | 1 x Power button,1 x Lock button,1 x RF button,5 x program Function button | |
| Operating System | WES7-WS7P,Win7 pro, Win 8 etc | |
| Mechanical Shock | 10G@11ms 30G@11ms | |
| Vibration | 0.4Grms(10~500Hz) 1.12Grms(10~500Hz) | |
| Power Supply | ATX 350W, Power input: AC 90~264V@50~60Hz | |
| Dimension | 425 x 335 x 230mm | |
| Net Weight | 12Kg | |
| Gross Weight | 15Kg | |
| Operating temp | 0~+50 | |
| Storage temp | -20~+60 | |
| Humidity | 10~90% condensing 5~95% non- condensing | |
| Certifications | CE,FCC | |
| Ordering information | PIP-600A:15' Industrial downward portable Computer, W/15' TFTLCD/Keyboard/Touchpad/90~264V AC 350W/Motherboard -Q77/CPU i3-3.3G/Memory 4GB/Memory 4GB | |
