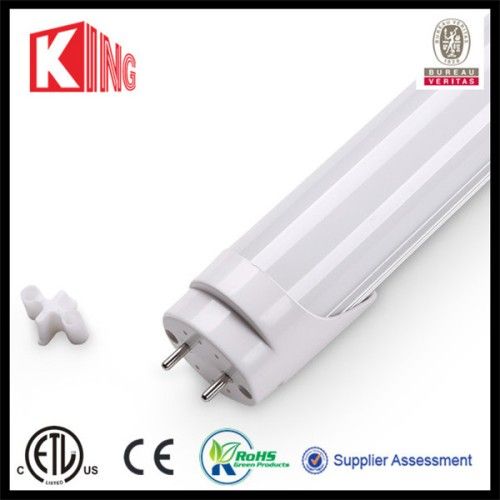

T8 LED Tube SMD 4ft 20W ETL CE RoHS Listed LED Tube
t8 led管smd 4ft 20w etl ce rohs列表led灯管
| 型号。 | 王-T8-SMD-20W |
| 输入电压 | ac85v〜265v，ac85-265 |
| 类型 | LED灯管 |
| 灯功率（W） | 18瓦特/ 20W |
| 光通量 | 1800-1900 Lm |
| 表面温度 | 42℃〜45℃〜45℃g;c~ 45°c |
| 色温 | 2800-8000k |
| 商标 | 国王 |
| 起源 | 深圳 |
| 功率 | 18W |
| 证明 | ce，rohs，etl |
| 名称 | LED管SMD高亮LED 1200mm |
| 发光颜色 | 暖白/纯白/冷白 |
| 一生 | 30000h |
| 环境温度 | -20℃〜45°立方厘米〜45℃g;cc~45°c |
| 保证 | 2年 |
| 规范 | ce etl ul rohs |
| HS编码 | 9405409000 |
led管smd 1200mm
0.6m 0.9m 1.2m 1.5m
注意
LED灯管输入电压：AC85-265V
2.显色指数（CRI）：80±5％RAmn; 5％RAmn; 5%RA
光束角度：120°deg;°
4.工作温度：-20°C〜45°C45°Cg; C45° C
5.表面温度：42°C〜45°C45°Cg; C45° C
寿命：50，000小时
功率因数：0.95〜0.98
8.管尺寸：1198mm（L）×26mms; 26毫米s; 26mm
光通量：1800-1900Lm
10.颜色：白色（暖白2500-3500k，纯白6000-6500k，酷白7000k），R，G，B，Y
安装
1.安装前切断电源;
2.不需要起动器，无镇流器或电子开关;
3.首先安装灯座和T8灯座，长度相同;
灯管工作电压为AC85-265V。
5.分别将位于灯侧的两线端子分别连接到电L和N;
6.不要同时向同一端的两个引脚供电
贸易条款
最小起订量：50PCS，但1PCS样品可以接受
2. CE和RoHS认证，T8 LED电源已通过UL认证icate
3.保修期：3年
4.付款方式：L / C，T / T，西联
交货时间：根据订单数量7-15个工作日
6.运费：空运/海运/ EMS /快递/ DHL / UPS / TNT / FedEx
7.包装：纸箱尺寸：123 * 20 * 20CM; 25PCS /箱
特征
1.节能：超低功耗，比传统白炽灯节能60％以上。
2.环保：无辐射，无汞或铅，完全可回收利用。
超长寿命：30,000〜50,000小时，寿命比传统灯长10倍。
4.驱动器：隔离恒流驱动器，高效率和高低压，完全提升产品性能。
5.自主开模制作铝合金挤压外壳，外观简洁美观，科学合理散热结构。科学配光，均匀照明。使用安全，安装方便。
我们的工厂
其他产品
任何兴趣，随时与我们联系！
0.6m 0.9m 1.2m 1.5m
注意
LED灯管输入电压：AC85-265V
2.显色指数（CRI）：80±5％RAmn; 5％RAmn; 5%RA
光束角度：120°deg;°
4.工作温度：-20°C〜45°C45°Cg; C45° C
5.表面温度：42°C〜45°C45°Cg; C45° C
寿命：50，000小时
功率因数：0.95〜0.98
8.管尺寸：1198mm（L）×26mms; 26毫米s; 26mm
光通量：1800-1900Lm
10.颜色：白色（暖白2500-3500k，纯白6000-6500k，酷白7000k），R，G，B，Y
安装
1.安装前切断电源;
2.不需要起动器，无镇流器或电子开关;
3.首先安装灯座和T8灯座，长度相同;
灯管工作电压为AC85-265V。
5.分别将位于灯侧的两线端子分别连接到电L和N;
6.不要同时向同一端的两个引脚供电
贸易条款
最小起订量：50PCS，但1PCS样品可以接受
2. CE和RoHS认证，T8 LED电源已通过UL认证icate
3.保修期：3年
4.付款方式：L / C，T / T，西联
交货时间：根据订单数量7-15个工作日
6.运费：空运/海运/ EMS /快递/ DHL / UPS / TNT / FedEx
7.包装：纸箱尺寸：123 * 20 * 20CM; 25PCS /箱
特征
1.节能：超低功耗，比传统白炽灯节能60％以上。
2.环保：无辐射，无汞或铅，完全可回收利用。
超长寿命：30,000〜50,000小时，寿命比传统灯长10倍。
4.驱动器：隔离恒流驱动器，高效率和高低压，完全提升产品性能。
5.自主开模制作铝合金挤压外壳，外观简洁美观，科学合理散热结构。科学配光，均匀照明。使用安全，安装方便。
我们的工厂
其他产品
任何兴趣，随时与我们联系！
| Model NO. | KING-T8-SMD-20W |
| Input Voltage | AC85V~265V, AC85-265 |
| Type | LED Tube |
| Lamp Power(W) | 18W/20W |
| Luminous Flux | 1800-1900 Lm |
| Surface Temperature | 42°c ~ 45°c~ 45°cg;c~ 45°c |
| Color Temperature | 2800-8000k |
| Trademark | KING |
| Origin | Shen Zhen |
| Power | 18W |
| Certification | CE, RoHS, ETL |
| Name | LED Tube SMD High Bright LED 1200mm |
| Emitting Color | Warm White/Pure White/Cold White |
| Lifetime | 30000h |
| Ambient Temperature | -20°c~45°cc~45°cg;cc~45°c |
| Warranty | 2 Years |
| Specification | ce etl ul rohs |
| HS Code | 9405409000 |
LED TUBE SMD 1200MM
0.6M 0.9M 1.2M 1.5M
Note
1. LED tube light input Voltage: AC85-265V
2. Color Rendering Index(CRI): 80± 5%RAmn; 5%RAmn; 5%RA
3. Beam Angle: 120°°deg;°
4. Working temperature: -20° C~45° C45° Cg; C45° C
5. Surface Temperature: 42° C ~ 45° C45° Cg; C45° C
6. Lifespan: 50, 000hours
7. Power Factor: 0.95~0.98
8. Tube size: 1198mm(L)× 26mms; 26mms; 26mm
9. Luminous Flux: 1800-1900Lm
10. Color: White(Warm White 2500-3500k, Pure White 6000-6500k, Cool White 7000k), R, G, B, Y
Installation
1. Cut off the power supply before installation;
2. No starter, NO ballast, or electronic switch is required;
3. Install lamp stand and T8 lamp holder first with the same length;
4. Lamp working voltage is AC85-265V.
5. Connect the two wire terminals located at the side of the lamp to the electricity L and N respectively;
6. Do not supply the power to both pins on the same end simultaneously
Trade Terms
1. MOQ: 50PCS, but 1PCS sample can be accepted
2. CE & RoHS certificated, T8 LED power supply has passed UL certificateicateicate
3. Warranty: 3 years
4. Payment: L/C, T/T, West Union
5. Delivery time: 7-15 workdays according to the order quantity
6. Shipping: By air/sea/EMS/Express/DHL/UPS/TNT/FedEx
7. Packing: Carton size: 123*20*20CM; 25PCS/Carton
Features
1. Energy saving: Ultra low power, and saves more than 60% energy than traditional incandescent lamp.
2. Environmental protection: No radiation, no mercury or lead, completely recyclable.
3. Super long life span: 30, 000~50, 000 hours, life is 10 times longer than traditional lamp.
4. Drives: Isolation constant-current supply driver with high efficiency and high-low pressure to enhance product performance entirely.
5. Autonomous mold opening to make aluminum alloy extrusion shell, simple and beautiful looking, scientific and reasonable heat dissipation structure. Scientific light distribution, uniform illumination. Safety in use and easy installation.
Our factory
Other products
Any interest, feel free to contact us!
