Snow Mobile Rubber Track (310*50.5*54)

Snow Mobile Rubber Track (310*50.5*54)

雪地橡胶履带(310 * 50.5 * 54)

1+
160 USD
4+
147 USD

加入意向
型号。 PY-310 * 50.5 * 54
条件
型号 PY-310 * 50.5 * 54
沥青 50.5毫米
链接 可调节
保证 保证12个月后付款
商标 可定做
起源 上海
证明 iso9001:2000
PY
宽度 310毫米
材料 橡胶和钢铁
邮寄日期 付款后15天
颜色 黑色
规范 310*50.5*54
HS编码 4012909090
我们的橡胶履带由天然橡胶制成。它具有非常好的穿着性能
电阻和不分解等。橡胶和钢框架之间的粘合力
非常坚固,另外更换方便,使用寿命长,适合
各种雪地手机
橡胶履带的特点
橡胶履带对道路造成的损害小于钢轨,而在软土地上较少的车辙
比钢轨
2.拥挤区域的设备受益,橡胶履带噪音低于钢轨
橡胶履带允许机器以比钢轨更高的速度行驶
橡胶履带绝缘机器和操作者免受振动,使机器的使用寿命缩短
减少操作人员的疲劳
5.配备机械的摩擦轨道的地面压力可能相当低,约为0.14-2.30公斤/平方米,a
在湿地和软地形上使用的主要原因。
橡胶跟踪车辆增加的牵引力允许他们拉两倍的轮式载荷
车重相同。
橡胶履带的拉力性能是车轮的两倍,它允许轻型车辆配备
橡胶履带做同样的牵引工作比轮式车辆。
使用橡胶履带的通知
1.调整橡胶履带的张力,使其高度可变范围为10-20mm
机器被抬起张力下降时重新调整。 (小心,因为橡胶履带可能
如果张力太低,请来吧。
2.避免从橡胶履带周围的框架突出,特别是在其内圆周上。
(橡胶履带很容易变形;如果与框架接触,这样的事故
可能会发生被切割的橡胶
旅行时避免尖锐的投影。
4.避免在混凝土道路上转动得太快,因为这样会导致系数高
事故如切割橡胶。
5.注意不要油等附着在橡胶履带上。如果是,请立即擦除。
6.长时间储存​​时,请保持室内,避免阳光直射和雨淋。
7.观察链轮的磨损时,请尽快更换。
真诚期待您的垂询。
我将随时为您服务。
尺寸宽*间距 链接 A B C D F 模式 主导
350*90 42-56 24 76 41 40 25 美联社 A2
400*90 42-56 38 82 35 32 30 美联社 A2
450*90 58-76 36 83 46 32 30 AA A2
ku450 * 90 58-76 40 82 36 27.5 30 美联社 A2
Model NO. PY-310*50.5*54
Condition New
Model No Py-310*50.5*54
Pitch 50.5mm
Links Can Be Adjustable
Warranty Guarantee 12 Months After Payment
Trademark can be customized
Origin Shanghai
Certification ISO9001: 2000
Brand Py
Width 310mm
Material Rubber and Steel
Delivery Date 15days After Payment
Color Black
Specification 310*50.5*54
HS Code 4012909090

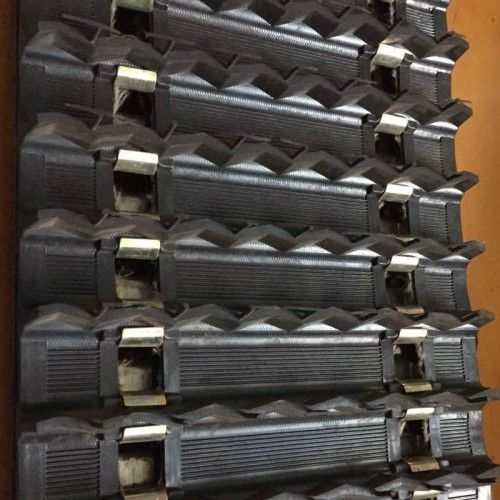

Our Rubber Track are made from natural rubber. It possesses very good properties of wearing
Resistance and non-disintegration etc. The adhesion between the rubber and the steel frame
Is very strong, in addition the replacement is convenient and the service life is long, it is suitable for
Various snow mobiles
The characteristics of rubber tracks
1. Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft ground
Than steel tracks
2. A benefit to equipment operating in congested areas, rubber tracks make less noise than steel tracks
3. Rubber tracks permit machines to travel at a higher speed than steel tracks
4. Rubber tracks insulated machine and operator from vibraion, exteding the service life of machine and
Decreasing operator's fatigue
5. The ground pressure of rubbr tracks equipped machinery can be fairly low, about 0.14-2.30 kg/m2, a
Major reason for its use on wet and soft terrain.
6. The added traction of rubber tracked vehicles permits them to pull twice the load of wheeled
Vehicles of the same weight.
7. Rubber tracks' pulling performance being twice that of wheels, it permits the lighter vehicles equip with
Rubber track to do the same pulling work than that of wheeled vehicles.
The notices of using rubber tracks
1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm when the
Machine is lifted. Readjust when the tension decreases. (Be careful because the rubber crawler may
Come off if the tension is too low).
2. Avoid projection from the frame around the rubber crawler, especially on its inner circumference.
(Rubber crawlers are easily deformed; If it comes into contact with the frame, an accident such the
Rubber being cut can occur
3. Avoid sharp projections when traveling.
4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can cause
Accidents such as cutting the rubber.
5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.
6. When storing for long periods, keep indoors, away from direct sunshine and rain.
7. Replace as soon as possible when abrasion of sprockets is observed.
Sincerely looking forward to your enquiry.
I will be at your service at any time.
size width*pitch link A B C D F pattern guiding
350*90 42-56 24 76 41 40 25 AP A2
400*90 42-56 38 82 35 32 30 AP A2
450*90 58-76 36 83 46 32 30 AA A2
KU450*90 58-76 40 82 36 27.5 30 AP A2
