雪地橡胶履带，雪鼓橡胶履带，雪橇橡胶履带255 * 73 * 35
尺寸：宽25mm *间距73mm *链接35
特征：
1）。连续橡胶履带
2）。常规型或可互换型橡胶履带
3）。保修：保证一年正常使用
4）。应用：小型挖掘机，推土机，自卸车，履带式装载机，履带式起重机，履带车，农业机械，摊铺机等专用机械
如何测量橡胶履带？
要检查现有橡胶履带的尺寸，您将需要测量以下内容。
1.以毫米为单位测量轨道宽度，或者为您进行转换。 （1英寸= 25.4毫米）
2.测量从一个链接（与轨道上的链轮啮合的金属件）的中心顶部到下一个链接中心顶部的距离（以毫米为单位，或者我们可以为您进行转换）。该距离称为轨道的间距。
3.计算轨道内部的链接总数（也称为金属片或凸耳）。
轨道的测量为宽x间距x链接。
可互换轨道设计
可互换的导轨式更换轨道最初设计用于钢轨设计的设备，但现在最多可以与橡胶交换。可互换型橡胶履带具有螺距测量（这是从一个金属连接件的中心到下一个金属连接件的中心的距离）为47,48,48.5,60,52.5,53,54,54.5,55,55.5,56 ，71,72,72.5,75.5,76,81,83.5,92,96毫米。
常规轨道设计
常规的导向型更换轨道设计用于设计用于橡胶履带的底盘的设备。常规型轨道具有60,72,84,86,87,90,100,125和150毫米的间距测量（这是从一个金属连接件的中心到下一个金属连接件的中心的距离）。
橡胶履带胎面花纹和OEM跟踪尺寸
各种轨道设计和轨迹模式可用于特定的机器应用和工作条件。向我们的专业销售人员咨询哪些模式可用于您的机器。

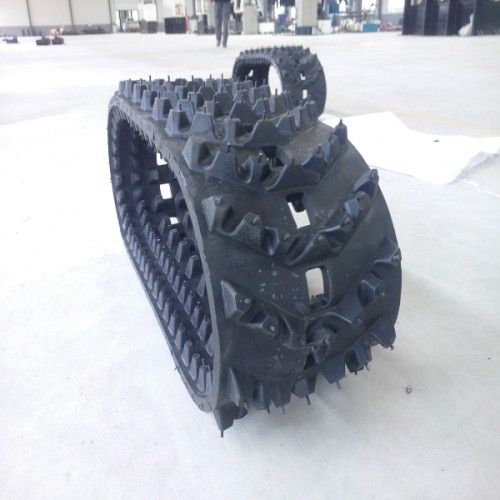

Snowmobile rubber track, Snow blower rubber track, Snowcat rubber track 255*73*35
Sizes: Width255mm*Pitch Length73mm*Links35
Features:
1). Continuous rubber track
2). Conventional type or interchangeable type rubber track
3). Warranty: guarantee one year under normal use
4). Application: mini-excavator, bulldozer, dumper, crawler loader, crawler crane, crawler carrier vehicle, agriculture machinery, paver and other special machine
How to Measure Rubber Tracks?
To check for the size of your existing rubber track you will need to measure followings.
1. Measure the width of the track in millimeters or we can do the conversions for you. (1 inch = 25.4 millimeters)
2. Measure the distance from the top of the center of one link (metal piece that engages with the sprocket on the track) to the top of the center of the next link (in millimeters or we can do the conversions for you). This distance is known as the pitch of the track.
3. Count the total number of links (also called metal pieces or lugs) inside of the track.
The measurement of a track is Width x Pitch x Links.
Interchangeable Track Designs
Interchangeable guide type replacement tracks were originally designed for use on equipment with undercarriages designed for steel tracks but now most can interchange with rubber. Interchangeable type rubber tracks have pitch measurements (this is the distance from the center of one metal link to the center of the next metal link) of 47, 48, 48.5, 60, 52.5, 53, 54, 54.5, 55, 55.5, 56, 71, 72, 72.5, 75.5, 76, 81, 83.5, 92, 96 millimeters.
Conventional Track Designs
Conventional guide type replacement tracks are designed for use on equipment with undercarriages designed for rubber tracks. Conventional type tracks have pitch measurements (this is the distance from the center of one metal link to the center of the next metal link) of 60, 72, 84, 86, 87, 90, 100, 125 and 150 millimeters.
Rubber Track Tread Patterns and OEM Track Sizes
A wide range of track designs and track patterns are available for specific machine applications and working conditions. Ask one of our professional sales associates which patterns are available for your machine.
