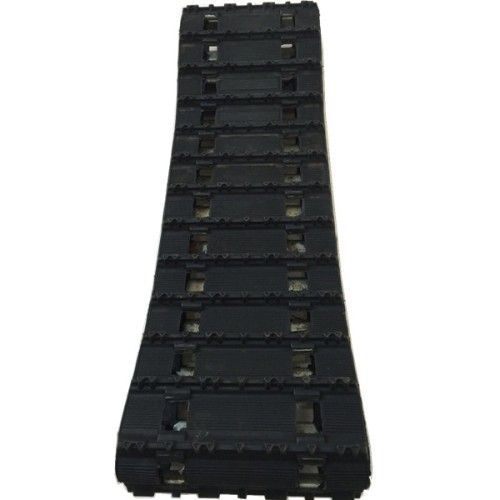

Rubber Track for Snowmobile (254mm width/1728mmLength)

Rubber Track for Snowmobile (254mm width/1728mmLength)

雪地车橡胶履带(254mm宽/ 1728mm长)

2+
100 USD
10+
200 USD

加入意向
型号。 pys254
应用 雪地车
条件
沥青 64毫米
保证 12个月
商标 PY
起源 上海
类型 履带
证明 iso9001:2000
宽度 254毫米
链接 27
总长度 1728毫米
规范 255-64-27
HS编码 8431499900
我们的橡胶履带由天然橡胶制成。它具有非常好的耐磨性和非分解性等特点。橡胶和钢框架之间的粘合性非常强,另外更换方便,使用寿命长,适用于各种雪地车
橡胶履带的特点
橡胶履带对道路造成的损伤小于钢轨,在软土地上的车辙少于钢轨
2.拥挤区域的设备受益,橡胶履带噪音低于钢轨
橡胶履带允许机器以比钢轨更高的速度行驶
橡胶履带绝缘机和操作者免受振动,使机器使用寿命缩短,减少操作人员的疲劳
5.装备机器的摩擦轨道的地面压力可能相当低,约为0.14-2.30公斤/平方米,是在湿地和软地形上使用的主要原因。
橡胶跟踪车辆增加的牵引力允许他们拉两倍相同重量的轮式车辆的载荷。
橡胶履带的牵引性能是车轮的两倍,它允许轻型车辆配备橡胶履带,与轮式车辆相同的牵引作业。
使用橡胶履带的通知
1.调整橡胶履带的张力,使机器升高时的高度可变范围为10-20mm。张力下降时重新调整。 (小心,因为如果张力太低,橡胶履带可能脱落)。
2.避免从橡胶履带周围的框架突出,特别是在其内圆周上。 (橡胶履带很容易变形;如果与框架接触,则会发生诸如橡胶被切割的事故)。
旅行时避免尖锐的投影。
4.避免在混凝土道路上转弯太快,因为这样会导致橡胶切割等事故。
5.注意不要油等附着在橡胶履带上。如果是,请立即擦除。
6.长时间储存​​时,请保持室内,避免阳光直射和雨淋。
7.观察链轮的磨损时,请尽快更换
适用机器 雪手机
材料 橡胶和钢铁
规范 255-64-55
安装位置 安装在雪地手机上

橡胶履带规格
类型:PY-50A 类型:PY-50B 类型:PY-60A 类型:PY-60B
链接54号 链接第46号 第66号 链接号50
间距:19毫米 间距:20毫米 间距:12.7毫米 间距:18.5毫米
宽度:50毫米 宽度:50毫米 宽度:60毫米 宽度:60毫米
总长:1026mm 总长:920mm 总长:838.2mm 总长:925mm
重量:0.5kg 重量:0.5kg 重量:1.2公斤 重量:0.44公斤




型号:PY-76 型号:PY-80 型号:PY-85 类型:PY-100A
链接120 链接108 链接No.24 链接号50
间距:12.7毫米 间距:15毫米 间距:59.4毫米 间距:40毫米
宽度:76毫米 宽度:80毫米 宽度:85毫米 宽度:100毫米
总长:1524mm 总长:1620mm 总长:1425.6mm 总长:2000mm
重量:1.92公斤 重量:1.2公斤 重量:1.92公斤 重量规格:4kg




类型:PY-100b中 型号:PY-110 型号:PY-115 类型:PY-118A
第76号 链接No.32 链接No.32 第18号
间距:20毫米 间距:42毫米 间距:65毫米 间距:61毫米
宽度:100毫米 宽度:110毫米 宽度:115毫米 宽度:118毫米
总长:1520mm 总长:1344mm 总长:2080mm 总长:1098mm
重量:1.84公斤 重量:2.12公斤 重量:Kg 重量:2.32公斤




类型:PY-118B 类型:PY-118C 型号:PY-123 型号:PY-130
链接20号 链接No.24 链接No.60 链接28号
间距为60mm 间距:61毫米 间距:40毫米 间距:72毫米
宽度:118毫米 宽度:118毫米 宽度:123毫米 宽度:130毫米
总长:1200mm 总长:1464mm 总长:2400mm 总长:2016mm
重量:2.44公斤 重量:3.9公斤 重量:8kg 重量:11.2公斤




型号:PY-135 类型:PY-136 型号:PY-140 型号:PY-148
第72号 链接第41号 链接No.24 链接36号
间距:18.5毫米 间距:45毫米 间距:80毫米 间距为60mm
宽度:135毫米 宽度:136毫米 宽度140mm 宽度:148毫米
总长:1332mm 总长:1845mm 总长:1920mm 总长:2160mm
重量:1.66公斤 重量:3.56公斤 重量:5kg 重量:16公斤




类型:PY-150 型号:PY-180 型号:PY-200 类型:PY-255A
链接22号 链接No.42 链接No.60 链接30号
间距:63.4毫米 间距:65毫米 间距:61.5毫米 间距:72毫米
宽度:150毫米 宽度:180毫米 宽度:200毫米 宽度:255毫米
总长:1394.8mm 总长:2730mm 总长:3690mm 总长:2160mm
重量:3.6公斤
重量:20KG 重量:12公斤




类型:PY-255B 型号:PY-300 型号:PY-320 型号:PY-350
链接No.35 链接58 链接第33号 链接53
间距:65毫米 间距:109毫米 间距:87毫米 间距:100毫米
宽度:255毫米 宽度为300mm 宽度:320毫米 宽度:350毫米
总长:2275mm 总长:6322mm 总长:2871mm 总长:5300mm
重量为10kg
重量:22公斤




型号:PY-382 型号:PY-400 型号:PY-420 型号:PY-500
链接54号 链接第46号 链接58 第48号
间距:64毫米 间距为90mm 间距:100毫米 间距:63.5毫米
宽度:382毫米 宽度:400毫米 宽度:420毫米 面宽度:500mm
总长:3456mm 总长:4140mm 总长:5800mm 总长:3048mm
重量:29公斤

重量:43.2公斤

Model NO. PYS254
Application Snowmobile
Condition New
Pitch 64mm
Warranty 12months
Trademark PY
Origin Shanghai
Type Crawler
Certification ISO9001: 2000
Width 254mm
Links 27
Total Length 1728mm
Specification 255-64-27
HS Code 8431499900
Our Rubber Track are made from natural rubber. It possesses very good properties of wearing resistance and non-disintegration etc. The adhesion between the rubber and the steel frame is very strong, in addition the replacement is convenient and the service life is long, it is suitable for various snow mobiles
The characteristics of rubber tracks
1. Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft ground than steel tracks
2. A benefit to equipment operating in congested areas, rubber tracks make less noise than steel tracks
3. Rubber tracks permit machines to travel at a higher speed than steel tracks
4. Rubber tracks insulated machine and operator from vibraion, exteding the service life of machine and decreasing operator's fatigue
5. The ground pressure of rubbr tracks equipped machinery can be fairly low, about 0.14-2.30 kg/m2, a major reason for its use on wet and soft terrain.
6. The added traction of rubber tracked vehicles permits them to pull twice the load of wheeled vehicles of the same weight.
7. Rubber tracks' pulling performance being twice that of wheels, it permits the lighter vehicles equip with rubber track to do the same pulling work than that of wheeled vehicles.
The notices of using rubber tracks
1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm when the machine is lifted. Readjust when the tension decreases. (Be careful because the rubber crawler may come off if the tension is too low).
2. Avoid projection from the frame around the rubber crawler, especially on its inner circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame, an accident such the rubber being cut can occur).
3. Avoid sharp projections when traveling.
4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can cause accidents such as cutting the rubber.
5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.
6. When storing for long periods, keep indoors, away from direct sunshine and rain.
7. Replace as soon as possible when abrasion of sprockets is observed
Applicable machines snow mobiles
Material rubber and steel
Specification 255-64-55
Installation position Installed on the snow mobiles

Rubber Tracks Specification
Type:PY-50A Type:PY-50B Type:PY-60A Type:PY-60B
Link No.54 Link No.46 Link No.66 Link No.50
Pitch:19mm Pitch:20mm Pitch:12.7mm Pitch:18.5mm
Width:50mm Width:50mm Width:60mm Width:60mm
Total length:1026mm Total length:920mm Total length:838.2mm Total length:925mm
Weight:0.5Kg Weight:0.5Kg Weight:1.2Kg Weight:0.44Kg




Type:PY-76 Type:PY-80 Type:PY-85 Type:PY-100A
Link No.120 Link No.108 Link No.24 Link No.50
Pitch:12.7mm Pitch:15mm Pitch:59.4mm Pitch:40mm
Width:76mm Width:80mm Width:85mm Width:100mm
Total length:1524mm Total length:1620mm Total length:1425.6mm Total length:2000mm
Weight:1.92Kg Weight:1.2Kg Weight:1.92Kg Weight:4Kg




Type:PY-100B Type:PY-110 Type:PY-115 Type:PY-118A
Link No.76 Link No.32 Link No.32 Link No.18
Pitch:20mm Pitch:42mm Pitch:65mm Pitch:61mm
Width:100mm Width:110mm Width:115mm Width:118mm
Total length:1520mm Total length:1344mm Total length:2080mm Total length:1098mm
Weight:1.84Kg Weight:2.12Kg Weight:Kg Weight:2.32Kg




Type:PY-118B Type:PY-118C Type:PY-123 Type:PY-130
Link No.20 Link No.24 Link No.60 Link No.28
Pitch:60mm Pitch:61mm Pitch:40mm Pitch:72mm
Width:118mm Width:118mm Width:123mm Width:130mm
Total length:1200mm Total length:1464mm Total length:2400mm Total length:2016mm
Weight:2.44Kg Weight:3.9Kg Weight:8Kg Weight:11.2Kg




Type:PY-135 Type:PY-136 Type:PY-140 Type:PY-148
Link No.72 Link No.41 Link No.24 Link No.36
Pitch:18.5mm Pitch:45mm Pitch:80mm Pitch:60mm
Width:135mm Width:136mm Width:140mm Width:148mm
Total length:1332mm Total length:1845mm Total length:1920mm Total length:2160mm
Weight:1.66Kg Weight:3.56Kg Weight:5Kg Weight:16Kg




Type:PY-150 Type:PY-180 Type:PY-200 Type:PY-255A
Link No.22 Link No.42 Link No.60 Link No.30
Pitch:63.4mm Pitch:65mm Pitch:61.5mm Pitch:72mm
Width:150mm Width:180mm Width:200mm Width:255mm
Total length:1394.8mm Total length:2730mm Total length:3690mm Total length:2160mm
Weight:3.6Kg
Weight:20Kg Weight:12Kg




Type:PY-255B Type:PY-300 Type:PY-320 Type:PY-350
Link No.35 Link No.58 Link No.33 Link No.53
Pitch:65mm Pitch:109mm Pitch:87mm Pitch:100mm
Width:255mm Width:300mm Width:320mm Width:350mm
Total length:2275mm Total length:6322mm Total length:2871mm Total length:5300mm
Weight:10Kg
Weight:22Kg




Type:PY-382 Type:PY-400 Type:PY-420 Type:PY-500
Link No.54 Link No.46 Link No.58 Link No.48
Pitch:64mm Pitch:90mm Pitch:100mm Pitch:63.5mm
Width:382mm Width:400mm Width:420mm Width:500mm
Total length:3456mm Total length:4140mm Total length:5800mm Total length:3048mm
Weight:29Kg

Weight:43.2Kg
