Continued Rubber Track for Tracked Vehicles Like Snowmobile Trailers

Continued Rubber Track for Tracked Vehicles Like Snowmobile Trailers

追踪车辆的继续橡胶履带如雪地车拖车

2700 USD

加入意向
型号。 PY-S800
移位 300CC
材料 PVC
发动机 4中风
定制 定制
宽度 800毫米
链接 69
保证 12个月
商标 无标记或作为买方要求请求equests
起源 中国上海(大陆)
年龄 成人
车牌号码 双板
板型
气瓶 2
条件
沥青 90.6毫米
颜色 黑色
总长度 6251.4毫米
规范 800*90.6*69
HS编码 8431499900
我们的橡胶履带由天然橡胶制成。它具有非常好的耐磨性和非分解性等特点。橡胶和钢框架之间的粘合性非常强,另外更换方便,使用寿命长,适用于各种雪地车
橡胶履带的特点
橡胶履带对道路造成的损伤小于钢轨,在软土地上的车辙少于钢轨
2.拥挤区域的设备受益,橡胶履带噪音低于钢轨
橡胶履带允许机器以比钢轨更高的速度行驶
橡胶履带绝缘机和操作者免受振动,使机器使用寿命缩短,减少操作人员的疲劳
5.装备机器的摩擦轨道的地面压力可能相当低,约为0.14-2.30公斤/平方米,是在湿地和软地形上使用的主要原因。
橡胶跟踪车辆增加的牵引力允许他们拉两倍相同重量的轮式车辆的载荷。
橡胶履带的牵引性能是车轮的两倍,它允许轻型车辆配备橡胶履带,与轮式车辆相同的牵引作业。
使用橡胶履带的通知
1.调整橡胶履带的张力,使机器升高时的高度可变范围为10-20mm。张力下降时重新调整。 (小心,因为如果张力太低,橡胶履带可能脱落)。
2.避免从橡胶履带周围的框架突出,特别是在其内圆周上。 (橡胶履带很容易变形;如果与框架接触,则会发生诸如橡胶被切割的事故)。
旅行时避免尖锐的投影。
4.避免在混凝土道路上转弯太快,因为这样会导致橡胶切割等事故。
5.注意不要油等附着在橡胶履带上。如果是,请立即擦除。
6.长时间储存​​时,请保持室内,避免阳光直射和雨淋。
7.观察链轮的磨损时,请尽快更换
适用机器 雪手机
材料 橡胶和钢铁
规范 800*90.6*69
安装位置 安装在雪地手机上
Model NO. PY-S800
Displacement 300CC
Material PVC
Engine 4 Stroke
Customized Customized
Width 800mm
Links 69
Warranty 12months
Trademark No Marks or As buyer′s requestsrequestsequests
Origin Shanghai, China(Mainland)
Age Adult
Plate Number Double Plate
The Plate Type Double
Cylinders 2
Condition New
Pitch 90.6mm
Color Black
Total Length 6251.4mm
Specification 800*90.6*69
HS Code 8431499900

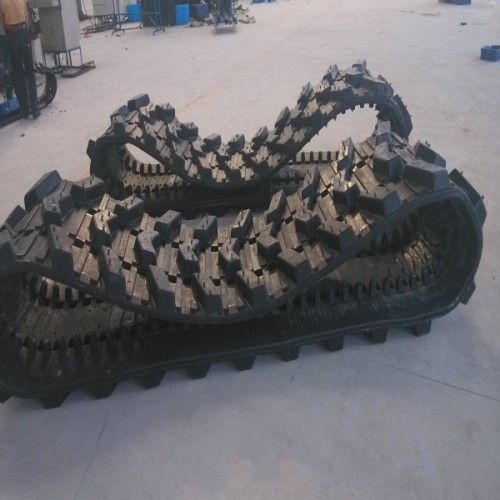

Our Rubber Track are made from natural rubber. It possesses very good properties of wearing resistance and non-disintegration etc. The adhesion between the rubber and the steel frame is very strong, in addition the replacement is convenient and the service life is long, it is suitable for various snow mobiles
The characteristics of rubber tracks
1. Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft ground than steel tracks
2. A benefit to equipment operating in congested areas, rubber tracks make less noise than steel tracks
3. Rubber tracks permit machines to travel at a higher speed than steel tracks
4. Rubber tracks insulated machine and operator from vibraion, exteding the service life of machine and decreasing operator's fatigue
5. The ground pressure of rubbr tracks equipped machinery can be fairly low, about 0.14-2.30 kg/m2, a major reason for its use on wet and soft terrain.
6. The added traction of rubber tracked vehicles permits them to pull twice the load of wheeled vehicles of the same weight.
7. Rubber tracks' pulling performance being twice that of wheels, it permits the lighter vehicles equip with rubber track to do the same pulling work than that of wheeled vehicles.
The notices of using rubber tracks
1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm when the machine is lifted. Readjust when the tension decreases. (Be careful because the rubber crawler may come off if the tension is too low).
2. Avoid projection from the frame around the rubber crawler, especially on its inner circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame, an accident such the rubber being cut can occur).
3. Avoid sharp projections when traveling.
4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can cause accidents such as cutting the rubber.
5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.
6. When storing for long periods, keep indoors, away from direct sunshine and rain.
7. Replace as soon as possible when abrasion of sprockets is observed
Applicable machines snow mobiles
Material rubber and steel
Specification 800*90.6*69
Installation position Installed on the snow mobiles
