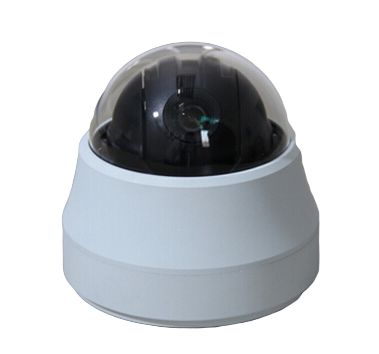

700TV Lines High Speed Dome Security Camera with 10X Zoom
700TV线高速球安全摄像机与10X变焦
| 型号。 | SX-610 |
| 样式 | 圆顶相机 |
| 传感器 | CMOS |
| 类 | 自动对焦镜头 |
| 特征 | 防水/防水，高清晰度，迷你尺寸，防破坏，自动BLC |
| 传感器尺寸 | 1/3英寸 |
| 迷你尺寸 | 4英寸 |
| 放大 | 5〜50毫米 |
| 红外线距离 | 30m |
| 微型照明 | 0.1LUX |
| 运输包装 | 纸盒 |
| 技术 | 摇摄/倾斜/缩放 |
| 类型 | 闭路电视摄像机 |
| 水平分辨率 | 700TVL |
| 证明 | ce，fcc，rohs |
| 有效距离 | ≧30米 |
| 图像传感器 | 1/3 Sony 700tvl |
| 焦点 | 10X * 10X变焦镜头 |
| 平移/倾斜 | 潘：360度，倾斜：90度 |
| 支持 | OSD菜单 |
| 商标 | OEM或石新 |
| 起源 | 深圳 |
700TV线高速球型室内CCTV安全摄像机，10倍变焦
- 内置变焦，100倍（10倍光学变焦，10倍数码变焦）
高分辨率480TVL;最小照度0.1Lux
- 360°，倾斜90°连续旋转自动翻转，人性化对焦和速度比例分配roportion
- 支持128个预设（标题可调），4个巡视，8个可编程区域，4个具有记录时间的模式
-180秒; 4扫描，支持相机扫描2点之间。
- 支持相机在左和右右之间反复扫描right
- 屏幕显示平移/倾斜位置，缩放等
- 内置OSD菜单，信息和参数可更改，还可以设置和调整预设，巡航，平移和图案扫描等。 etc.
- 空闲时间中的行动功能，自动呼叫预设或启动巡视，模式，扫描和显示区域。 （相机还支持缩放，倾斜操作）
-rs485 / sdlc / coax通信通过rs485 / sdlc / coax
-pelco-D / PELCO-P / KALATEL
- 内置多协议：PELCO-D，PELCO-P等
-IP65全天防护盖
- 内置变焦，100倍（10倍光学变焦，10倍数码变焦）
高分辨率480TVL;最小照度0.1Lux
- 360°，倾斜90°连续旋转自动翻转，人性化对焦和速度比例分配roportion
- 支持128个预设（标题可调），4个巡视，8个可编程区域，4个具有记录时间的模式
-180秒; 4扫描，支持相机扫描2点之间。
- 支持相机在左和右右之间反复扫描right
- 屏幕显示平移/倾斜位置，缩放等
- 内置OSD菜单，信息和参数可更改，还可以设置和调整预设，巡航，平移和图案扫描等。 etc.
- 空闲时间中的行动功能，自动呼叫预设或启动巡视，模式，扫描和显示区域。 （相机还支持缩放，倾斜操作）
-rs485 / sdlc / coax通信通过rs485 / sdlc / coax
-pelco-D / PELCO-P / KALATEL
- 内置多协议：PELCO-D，PELCO-P等
-IP65全天防护盖
| Model NO. | SX-610 |
| Style | Dome Camera |
| Sensor | CMOS |
| Kind | Autofocus Lens |
| Feature | Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC |
| Sensor Size | 1/3 inch |
| Mini Size | 4 Inch |
| Zoom | 5~50mm |
| IR Distance | 30m |
| Mini Illumination | 0.1lux |
| Transport Package | Paper Box |
| Technology | Pan / Tilt / Zoom |
| Type | CCTV Camera |
| Horizontal Resolution | 700tvl |
| Certification | CE, FCC, RoHS |
| Effective Distance | ≧30m |
| Image Sensor | 1/3 Sony 700tvl |
| Focus | 10X*10X Zoom Lens |
| Pan/Tilt | Pan:360 Degree, Tilt:90 Degree |
| Support | OSD Menue |
| Trademark | OEM or ShiXin |
| Origin | Shenzhen |
700TV Lines High Speed Dome CCTV Security Camera for Indoor with 10x Zoom
-Built-in Zoom with 100x (10x Optical Zoom, 10x Digital Zoom)
-High Resolutions 480TVL; Min Illumination 0.1Lux
-Pan 360° , Tilt 90° Continuously Rotation with Auto-Flip, and Humanize Focus and Speed Proportionroportionroportion
-Support 128 presets(Titles adjustable), 4 Tours, 8 Programmable zones, 4 Pattern with record time than
-180 seconds; 4 Scan, Support Camera Scanning Repeatedly Between 2 Points.
-Support Camera Scanning repeatedly between left & rightrightright
-Screen Displaying Pan/Tilt Position, Zoom etc
-Built-in OSD Menu, Information and Parameter Changeable, also can set and adjust presets, cruise, pan & pattern scan etc. etc. etc.
-Park Action Function, Auto-calling Presets or Starting-up Tour, Pattern, Scan and Display Areas during Idle Time. ( Camera still support Zoom, Tilt opration)
-RS485/SDLC/COAX Communications via RS485/SDLC/COAX
-PELCO-D/PELCO-P/KALATEL
- Built-in Multi Protocols: PELCO-D, PELCO-P etc.
-IP65 All-day Defending Cover
-Built-in Zoom with 100x (10x Optical Zoom, 10x Digital Zoom)
-High Resolutions 480TVL; Min Illumination 0.1Lux
-Pan 360° , Tilt 90° Continuously Rotation with Auto-Flip, and Humanize Focus and Speed Proportionroportionroportion
-Support 128 presets(Titles adjustable), 4 Tours, 8 Programmable zones, 4 Pattern with record time than
-180 seconds; 4 Scan, Support Camera Scanning Repeatedly Between 2 Points.
-Support Camera Scanning repeatedly between left & rightrightright
-Screen Displaying Pan/Tilt Position, Zoom etc
-Built-in OSD Menu, Information and Parameter Changeable, also can set and adjust presets, cruise, pan & pattern scan etc. etc. etc.
-Park Action Function, Auto-calling Presets or Starting-up Tour, Pattern, Scan and Display Areas during Idle Time. ( Camera still support Zoom, Tilt opration)
-RS485/SDLC/COAX Communications via RS485/SDLC/COAX
-PELCO-D/PELCO-P/KALATEL
- Built-in Multi Protocols: PELCO-D, PELCO-P etc.
-IP65 All-day Defending Cover
