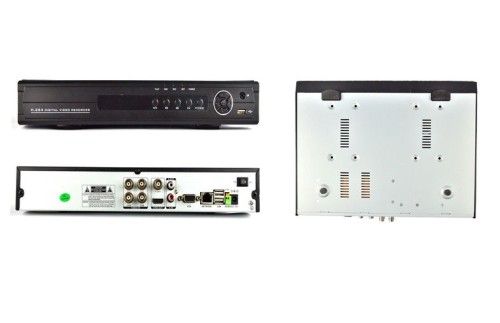

1.0megapixel HDMI Cloud Ahd DVR Linux IR Remote Control Network HD Video Input

1.0megapixel HDMI Cloud Ahd DVR Linux IR Remote Control Network HD Video Input

1.0像素HDMI云Ahd DVR Linux红外遥控网络高清视频输入

议价

加入意向
型号。 EV-CH04-h1304
视频压缩 H.264
操作系统 Linux的
接口类型 BNC / VGA / HDIM
音频输入/输出 4通道
商标 Eyevison
规范 34*27*15
HS编码 8521909090
类型 独立
压缩格式 H.264
应用 商用DVR
视频输入/输出 4通道
遥控 带遥控器
运输包装 纸包装
起源 深圳

1.0万像素HDMI云AHD DVR Linux红外遥控网络高清视频输入
特征:
1. SDVR将DHR / HVR / NVR的功能结合在一起,多模式输入(支持模拟视频,模拟高清视频,网络高清视频输入)。无需担心如何与模拟系统兼容,选择DVR或HVR只有一个SDVR才能正常工作。
2.压缩算法升级到H.264 High Profile,更先进的视频压缩技术使码流降至少30%
3.全新的图形操作界面设计,让您体验轻松方便。
4.超强处理能力:可同步实现4CH AHD 720P实时录像和4CH AHD播放。
规范:

技术参数


主处理器

gm 8283

系统资源

实况录制,播放,备份,远程视图,移动监控

控制模式

前面板,USB鼠标,红外遥控器,网络

显示

支持:,

视频

4ch输入,1ch电视输出,1ch vga输出,1 * hdmi(1080p)

音频

4CH输入

报警


记录

4 * 720P实时

回放

1 * 720P实时

云台


HDMI


DVD选项

没有

硬盘容量

SATA接口HDD * 2

网络接口

1 * RJ45,100Mbps以太网

升级

usb磁盘,网络

备用

usb磁盘,网络

用户扩展

自己设计启动画面LOGO

电源

12V / 2A

工作环境

-10°〜+ 55°/ 10〜90%RH / 86〜106Kpa86〜106Kpa86~106Kpa

有竞争力的优势:
中央电视台业界领先,专业的制造商
2.高品质
竞争力合理的价格
最好的售前,售中和售后服务
5.专业技术支持
Model NO. EV-CH04-H1304
Video Compression H.264
Operating System Linux
Interface Type BNC/VGA/HDIM
Audio Input/Output 4 Channel
Trademark Eyevison
Specification 34*27*15
HS Code 8521909090
Type Standalone
Compressed Format H.264
Application Commercial DVR
Video Input/Output 4 Channel
Remote Control With Remote Control
Transport Package Paper Packaging
Origin Shenzhen

1.0megapixel HDMI Cloud AHD DVR Linux IR Remote Control Network HD Video Input
Features:
1. SDVR combines the functions of DHR / HVR / NVR together, multi-mode input (support analog video, Analog HD video, network HD video input).No need to worry how to be compatible with analog system, to choose DVR or HVR, just one SDVR will be work well.
2. Compression algorithm upgraded to H.264 High Profile, more advanced video compression technique makes the code stream lowered at least 30%
3. Completely new graphics opereting interface design, to let you experience easily and conveniently.
4. Super Strong processing capacity: can realize 4CH AHD 720P realtime recording and 4CH AHD playback synchronously.
specification:

Technical Parameters


Main Processor

GM 8283

System Resource

Live recording, Playback, Backup, Remote view, Mobile monitoring

Control Mode

Front panel, USB mouse, IR remote control, Network

Display

Support:,

Video

4CH Input,1CH TV Output,1CH VGA Output , 1*HDMI(1080P)

Audio

4CH Input

Alarm

YES

Recording

4*720P real time

Play back

1*720P real time

PTZ

YES

HDMI

YES

DVD Option

NO

HDD Capacity

SATA Interface HDD*2

Network Interface

1*RJ45,100Mbps Ethernet

Upgrade

USB DISK, Network

Backup

USB DISK, Network

User Extend

Design boot screen LOGO by yourself

Power supply

12V/2A

Working environment

-10°~+55°/10~90%RH/86~106Kpa86~106Kpa86~106Kpa

Competitive advantages:
1. Leading and professional manufacturer in CCTV industry
2. High quality
3. Competitive and reasonable price
4. Best pre-sale,sale and after-sale service
5. Professional technical support
