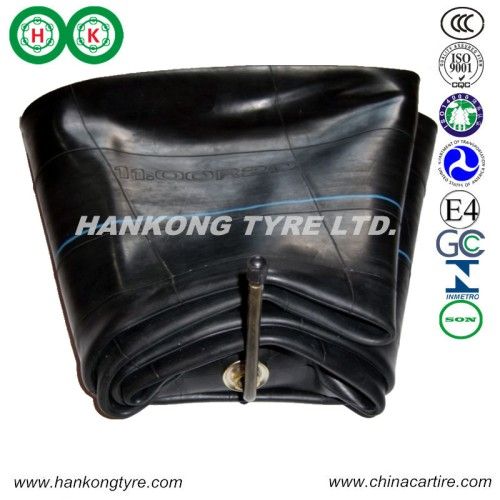

Butyl Tube Flap TBR Tire Radial Truck Tire Inner Tube (7.50R16, 9.00R20, 10.00R20, 11.00R20)

丁基管翼TBR轮胎径向卡车轮胎内管（7.50R16，9.00R20，10.00R20，11.00R20）

600+	15 USD
1000+	11 USD

加入意向

译文
原文

丁基管挡板TBR轮胎径向卡车轮胎内胎（7.50R16,9.00R20,10.00R20,11.00R20）丁基管，挡板TBR轮胎，径向轮胎管

管尺寸	阀	宽度	总直径	重量	数量/包
管尺寸	阀	mm	mm	(g)	数量/包
4.00R8	js2-56r	113	1130	410-470	45
5.00R8	Z1-01-1	150	1296	610-670	45
6.00R9	Z1-01-1	172	1446	830-890	40
18*7-8	js2-56r	150	1289	600-660	45
23*9-10	Z1-02-1	187	1636	850-910	40
28*9R15	Z1-01-6	204	2090	1450-1530	20
16*6.50R8	Z1-02-1	138	1204	480-520	45
6.50R10	Z1-01-1	203	1674	1120-1180	35
7.00R9	Z1-01-1	183	1540	1010-1070	35
7.00R12	Z1-01-3	188	1824	1080-1160	30
8.25R15	Z1-01-5	234	2270	1800-1880	20
4.00R12	Z1-02-1	127	1480	560-620	50
4.50/5.00R12	Z1-02-1	143	1526	640-700	45
4.50/5.00-10	Z1-02-1	131	1352	550-610	45
4.50/5.00R14	Z1-02-1	136	1740	720-780	40
4.50/5.00R16	Z1-02-1	129	1840	760-820	40
5.50/6.00R13	Z1-02-1	158	1670	750-810	40
6.00R12	Z1-02-2	196	1766	1020-1080	35
6.00/6.50R14	Z1-02-1	180	1926	1070-1130	35
6.50R14-	Z1-02-1	200	1981	1140-1200	35
6.00/6.50R15	Z1-02-1	193	1960	1130-1190	35
6.00/6.50R16	Z1-02-2	196	2114	1260-1340	35
7.00/7.50R15	Z1-01-3	204	2240	1440-1520	25
7.00/6.50R16	Z1-01-3	201	2160	1360-1440	25
7.50R16	Z1-01-5	223	2206	1580-1660	25
7.00/7.50R20	Z1-01-5	207	2564	1880-1960	20
8.25R16	Z1-01-5	248	2326	1840-1920	20
8.25R20	Z1-01-5	242	2710	2300-2400	15
9.00R20	Z1-01-6	258	2832	2800-2900	15
10.00R20	Z1-01-7	290	2924	2980-3130	15
11.00R18	Z1-01-8	303	2860	3100-3250	10
11.00R20	Z1-01-8	312	3040	3300-3450	10
11.00R22	Z1-01-8	294	3016	3470-3620	10
12.00R20	Z1-01-8	335	3120	3870-4020	10
12.00R24	Z1-01-8	324	3450	4770-4920	8
13.00R25	Z1-01-8	360	3486	5000-5200	5
14.00R20	Z1-01-8	410	3380	5550-5750	5
14.00R24/25	Z1-01-8	410	3670	6100-6350	5
17.5R25	Z1-01-8	460	3954	7400-7700	2
20.5R25	Z1-01-8	556	4380	10100-10500	2
23.5R25	Z1-01-8	640	4710	12600-13000	1
400/60R15.5	tr15	318	2530	3500-3600	10
10.00---15	tz3-50	267	2266	2100-2200	15
11.00-16	tz1-78	287	2546	2750-2850	15
9.75---18	tr77a	283	2710	2850-2950	15
9.50-20	tz3-50	255	2700	2900-3000	10
9.5-24	tz3-50	230	2880	2400-2500	8
11.2-24	tz3-50	319	3650	4100-4250	5
14.9-24	tz3-50	408	3650	5800-6000	2
15-24	Tr75a	482	3490	7400-7700	8
12.4-28	tz3-50	308	4080	4800-5000	2
14.9-30	tz3-50	410	4080	7200-7450	1
16.9-30	tz3-50	466	4624	8500-9000	1
16.9-34	tz3-50	465	3850	9800-10400	5
11-32	tz3-50	302	4164	5500-5650	5
11.2-38	tz3-50	277	4474	5900-6150	2
12-38	tz3-50	365	4990	7900-8150	1
18.4-38	tz3-50	467	5160	10800-11400	1
20.8-38	Tz3-50	507	3168	13200-13700	8
16/70-20	tr179a	360	3168	4500-4650	5
16/70-24	tr179a	365	5344	5000-5200	1
16.00-24/25	tr179a	437	3860	6900-7200
21-33	tr179a	586		16000-16600

Butyl Tube Flap TBR Tire Radial Truck Tire inner Tube(7.50R16,9.00R20,10.00R20,11.00R20) Butyl Tube, Flap for TBR Tire, Radial Tire tube

Tube Size	Valve	Width	Overall Diameter	Weight	Qty/Bag
Tube Size	Valve	mm	mm	(g)	Qty/Bag
4.00R8	JS2-56R	113	1130	410-470	45
5.00R8	Z1-01-1	150	1296	610-670	45
6.00R9	Z1-01-1	172	1446	830-890	40
18*7-8	JS2-56R	150	1289	600-660	45
23*9-10	Z1-02-1	187	1636	850-910	40
28*9R15	Z1-01-6	204	2090	1450-1530	20
16*6.50R8	Z1-02-1	138	1204	480-520	45
6.50R10	Z1-01-1	203	1674	1120-1180	35
7.00R9	Z1-01-1	183	1540	1010-1070	35
7.00R12	Z1-01-3	188	1824	1080-1160	30
8.25R15	Z1-01-5	234	2270	1800-1880	20
4.00R12	Z1-02-1	127	1480	560-620	50
4.50/5.00R12	Z1-02-1	143	1526	640-700	45
4.50/5.00-10	Z1-02-1	131	1352	550-610	45
4.50/5.00R14	Z1-02-1	136	1740	720-780	40
4.50/5.00R16	Z1-02-1	129	1840	760-820	40
5.50/6.00R13	Z1-02-1	158	1670	750-810	40
6.00R12	Z1-02-2	196	1766	1020-1080	35
6.00/6.50R14	Z1-02-1	180	1926	1070-1130	35
6.50R14-	Z1-02-1	200	1981	1140-1200	35
6.00/6.50R15	Z1-02-1	193	1960	1130-1190	35
6.00/6.50R16	Z1-02-2	196	2114	1260-1340	35
7.00/7.50R15	Z1-01-3	204	2240	1440-1520	25
7.00/6.50R16	Z1-01-3	201	2160	1360-1440	25
7.50R16	Z1-01-5	223	2206	1580-1660	25
7.00/7.50R20	Z1-01-5	207	2564	1880-1960	20
8.25R16	Z1-01-5	248	2326	1840-1920	20
8.25R20	Z1-01-5	242	2710	2300-2400	15
9.00R20	Z1-01-6	258	2832	2800-2900	15
10.00R20	Z1-01-7	290	2924	2980-3130	15
11.00R18	Z1-01-8	303	2860	3100-3250	10
11.00R20	Z1-01-8	312	3040	3300-3450	10
11.00R22	Z1-01-8	294	3016	3470-3620	10
12.00R20	Z1-01-8	335	3120	3870-4020	10
12.00R24	Z1-01-8	324	3450	4770-4920	8
13.00R25	Z1-01-8	360	3486	5000-5200	5
14.00R20	Z1-01-8	410	3380	5550-5750	5
14.00R24/25	Z1-01-8	410	3670	6100-6350	5
17.5R25	Z1-01-8	460	3954	7400-7700	2
20.5R25	Z1-01-8	556	4380	10100-10500	2
23.5R25	Z1-01-8	640	4710	12600-13000	1
400/60R15.5	TR15	318	2530	3500-3600	10
10.00---15	TZ3-50	267	2266	2100-2200	15
11.00-16	TZ1-78	287	2546	2750-2850	15
9.75---18	TR77A	283	2710	2850-2950	15
9.50-20	TZ3-50	255	2700	2900-3000	10
9.5-24	TZ3-50	230	2880	2400-2500	8
11.2-24	TZ3-50	319	3650	4100-4250	5
14.9-24	TZ3-50	408	3650	5800-6000	2
15-24	TR75A	482	3490	7400-7700	8
12.4-28	TZ3-50	308	4080	4800-5000	2
14.9-30	TZ3-50	410	4080	7200-7450	1
16.9-30	TZ3-50	466	4624	8500-9000	1
16.9-34	TZ3-50	465	3850	9800-10400	5
11-32	TZ3-50	302	4164	5500-5650	5
11.2-38	TZ3-50	277	4474	5900-6150	2
12-38	TZ3-50	365	4990	7900-8150	1
18.4-38	TZ3-50	467	5160	10800-11400	1
20.8-38	TZ3-50	507	3168	13200-13700	8
16/70-20	TR179A	360	3168	4500-4650	5
16/70-24	TR179A	365	5344	5000-5200	1
16.00-24/25	TR179A	437	3860	6900-7200
21-33	TR179A	586		16000-16600
