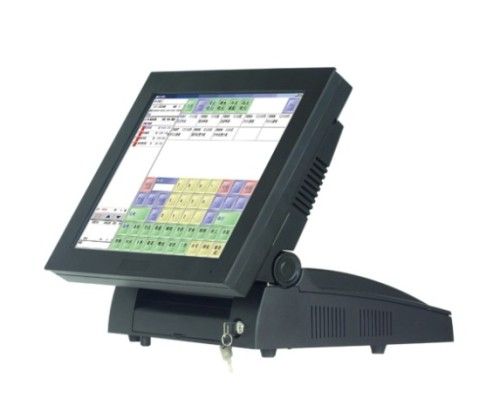

POS System with 15" All-in-One Touch POS Terminal (AIO-1521)
POS系统与15'一体式触摸POS终端（AIO-1521）
议价
加入意向| 型号。 | AIO-1521 |
| 付款方法 | IC卡 |
| 触摸屏 | 触摸屏 |
| 证明 | ce，ccc，fcc |
| 网络管理 | 支持网络管理 |
| 系统 | 视窗 |
| 记忆 | Ddriii 2GB |
| 解析度 | 1024X768 |
| 规范 | ce，fcc，rohs |
| 类型 | 固定 |
| 卡的种类 | 磁卡 |
| 打印机 | 热 |
| 功能类型 | POS消费 |
| 中央处理器 | 英特尔®酷睿I3-2100处理器essor |
| 主板 | 英特尔酷睿I3 |
| 亮度 | 为250cd / m 2的 |
| 触控面板 | 5线电阻 |
| 起源 | 中国 |
特征：
凭借不同的设计理念，AIO-1521设计了针对中小企业的销售点组件的最佳配置。
多角度，灵活调整，面板可提供0-90视角，以满足不同的安装和使用要求。
避免商业信息的非法拷贝和更好的数据生成。
简单的滑入/取出硬盘更换，使数据的维护更容易。
稳定的触摸屏性能，紧凑的设计看起来专业舒适的使用。
内置触摸屏，功耗低至30W，易于访问各种外设扩展。
*电缆可以穿过金属支架，这样可以避免在日常清洁过程中意外断开电缆。所有电线的产品看起来整洁。
l内置Wi-Fi可选。
LAN：RJ-45 * 1，支持千兆输入;
规范：
型号：AIO-1521
显示类型：15'触摸屏POSeen POS
颜色：黑色
附件选项：ISO Track 1/2/3磁条阅读器和客户极点显示（VFD / LED8）LED8）LED8)
主板零件
主板：英特尔®酷睿i3ore I3re I3
CPU：英特尔®酷睿I3-2100处理器essor
芯片组
内存：DDRIII 1066/1333 * 1 2GB标准内存
硬盘驱动器：SATA 2.5寸硬盘驱动器160G以上
显示部分
lcd面板尺寸：15寸全新tft lcd
亮度：250cd / m2
分辨率：1024x768（最大）
触摸屏：5线电阻式触摸屏台湾品牌
视角：L / R：140 U / D：130
前置I / O：USB（2.0）x2电源按钮x1复位按钮x1
后置I / O：PS2鼠标x1 PS2键盘x1
COM端口x3
LTP打印机x1
VGA输出（15Pin D-sub）x1，复制和延伸屏幕可用
RJ-45网络x2 RTL8111C
usb（2.0）x4
音频输出x1
麦克风x1
DC 12V输出x1
工作温度：0ºC至40ºC40ºCdm;Co 40 ºC
储存温度：-20ºC至60ºC60ºCdm;Co 60 ºC
电源：100V-250V / 50-60HZ交流电源输入huntkey品牌
电源：100V-250V / 50-60HZ交流电源输入huntkey品牌
包装尺寸：470x410x310（mm）;
包装：纸箱与泡沫包装NW：6.5KG GW：8.5KG
装载量20fcl：430PCS; 40fcl：910PCS
功耗45W（最大）
emc /产品安全fcc class a / ce mark / lvd / ccc
操作系统支持Windows XP Professional，Windows XP Embedded，WEPOS，Linux
饰品
交流电源线包括北美和欧洲电力电缆;其他地区可应要求提供。
驱动程序CD 1 *用于主板和触摸功能的CD盘
POWER：POS电源按钮
直流输入：pos 12v直流输入
PS2 / M：鼠标
PS2 / KB：键盘
LPT：25DB并行打印机
VGA：VGA输出
COM1.2.3。串行设备，热敏打印机，客户显示屏，扫描仪
usb：usb设备
LAN：RJ-45连接100MsLAN，Internet
LINE输出：音频输出到其他设备
MIC IN：扬声器输入
产品应用：
酒店，餐馆，快餐店，咖啡馆，面包店
商业街，精品店，百货公司，化妆品店，高层理发店
桑拿浴室，夜总会，主题公园，赌场，彩票销售点。
停车场，酒店，航空，地铁站
凭借不同的设计理念，AIO-1521设计了针对中小企业的销售点组件的最佳配置。
多角度，灵活调整，面板可提供0-90视角，以满足不同的安装和使用要求。
避免商业信息的非法拷贝和更好的数据生成。
简单的滑入/取出硬盘更换，使数据的维护更容易。
稳定的触摸屏性能，紧凑的设计看起来专业舒适的使用。
内置触摸屏，功耗低至30W，易于访问各种外设扩展。
*电缆可以穿过金属支架，这样可以避免在日常清洁过程中意外断开电缆。所有电线的产品看起来整洁。
l内置Wi-Fi可选。
LAN：RJ-45 * 1，支持千兆输入;
规范：
型号：AIO-1521
显示类型：15'触摸屏POSeen POS
颜色：黑色
附件选项：ISO Track 1/2/3磁条阅读器和客户极点显示（VFD / LED8）LED8）LED8)
主板零件
主板：英特尔®酷睿i3ore I3re I3
CPU：英特尔®酷睿I3-2100处理器essor
芯片组
内存：DDRIII 1066/1333 * 1 2GB标准内存
硬盘驱动器：SATA 2.5寸硬盘驱动器160G以上
显示部分
lcd面板尺寸：15寸全新tft lcd
亮度：250cd / m2
分辨率：1024x768（最大）
触摸屏：5线电阻式触摸屏台湾品牌
视角：L / R：140 U / D：130
前置I / O：USB（2.0）x2电源按钮x1复位按钮x1
后置I / O：PS2鼠标x1 PS2键盘x1
COM端口x3
LTP打印机x1
VGA输出（15Pin D-sub）x1，复制和延伸屏幕可用
RJ-45网络x2 RTL8111C
usb（2.0）x4
音频输出x1
麦克风x1
DC 12V输出x1
工作温度：0ºC至40ºC40ºCdm;Co 40 ºC
储存温度：-20ºC至60ºC60ºCdm;Co 60 ºC
电源：100V-250V / 50-60HZ交流电源输入huntkey品牌
电源：100V-250V / 50-60HZ交流电源输入huntkey品牌
包装尺寸：470x410x310（mm）;
包装：纸箱与泡沫包装NW：6.5KG GW：8.5KG
装载量20fcl：430PCS; 40fcl：910PCS
功耗45W（最大）
emc /产品安全fcc class a / ce mark / lvd / ccc
操作系统支持Windows XP Professional，Windows XP Embedded，WEPOS，Linux
饰品
交流电源线包括北美和欧洲电力电缆;其他地区可应要求提供。
驱动程序CD 1 *用于主板和触摸功能的CD盘
POWER：POS电源按钮
直流输入：pos 12v直流输入
PS2 / M：鼠标
PS2 / KB：键盘
LPT：25DB并行打印机
VGA：VGA输出
COM1.2.3。串行设备，热敏打印机，客户显示屏，扫描仪
usb：usb设备
LAN：RJ-45连接100MsLAN，Internet
LINE输出：音频输出到其他设备
MIC IN：扬声器输入
产品应用：
酒店，餐馆，快餐店，咖啡馆，面包店
商业街，精品店，百货公司，化妆品店，高层理发店
桑拿浴室，夜总会，主题公园，赌场，彩票销售点。
停车场，酒店，航空，地铁站
| Model NO. | AIO-1521 |
| Payment Method | IC Card |
| Touch Screen | Touch Screen |
| Certification | CE, CCC, FCC |
| Network Management | Support Network Management |
| System | Windows |
| Memory | Ddriii 2GB |
| Resolution | 1024X768 |
| Specification | CE, FCC, RoHs |
| Type | Fixed |
| Card Type | Magcard |
| Printer | Thermal |
| Function Type | POS for Consuming |
| CPU | Intel® Core I3-2100 Processorcessoressor |
| Main Board | Intel Core I3 |
| Brightness | 250CD/M2 |
| Touch Panel | 5-Wire Resistive |
| Origin | China |
Features:
With different design idea, the AIO-1521 designed with optimum configuration of point-of-sale components for small and middle sized businesses.
Multi-angle, flexible adjustment, the panel is available for 0-90 visual angle to meet different installment and use requirements.
Unique protective lock avoiding illegal copies of commercial information and better production of data.
Simple Slide in/out HDD replacement, make maintenance of the data much easier.
Stable touch panel performance, compact design looks professional and comfortable use.
Touch panel built-in, low power consumption to 30W, easy to access all kinds of peripheral expansion.
*Cables available to put through the metal stand, this can avoid the accidental disconnection of cables during the daily cleaning. The product with all the wires looked neat and tidy.
l Built-in Wi-fi Optional.
LAN: RJ-45 *1, support kilomega input ;
Specification:
Model Name: AIO-1521
Display Type: 15' Touch screen POSeen POS
Colour: Black
Accessories options: ISO Track 1/2/3 Magnetic Stripe Reader & Customer pole display (VFD / LED8) LED8)LED8)
Motherboard part
Main board: Intel® Core I3ore I3re I3
CPU: Intel® Core I3-2100 processorcessoressor
Chipset
Memory: DDRIII 1066/1333*1 2GB Standard memory
Hard driver: SATA 2.5 inch hard driver 160G or higher
Display part
LCD panel size: 15 inch BRAND NEW TFT LCD
Brightness: 250cd /m2
Resolution: 1024x768(max)
Touch screen: 5-wire Resistive touch screen Taiwan Branded
Viewing Angle: L/R:140 U/D:130
Front I/O: USB(2.0) x2 power button x1 reset button x1
Rear I/O: PS2 mouse x1 PS2 keyboard x1
COM port x3
LTP printer x1
VGA out (15Pin D-sub) x1, duplicate and extend screen available
RJ-45 network x2 RTL8111C
USB(2.0) x4
Audio output x1
Microphone in x1
DC 12V output x1
OperationTemperature: 0 ºC to 40 ºCo 40 ºCdm;Co 40 ºC
StorageTemperature: -20 ºC to 60 ºCo 60 ºCdm;Co 60 ºC
Power Supply: 100V-250V /50-60HZ AC power source input huntkey brand
Power Supply: 100V-250V /50-60HZ AC power source input huntkey brand
Packing dimension: 470x410x310(mm) ;
Package: carton box with Foam packaging NW: 6.5KG GW:8.5KG
Loading quantity 20fcl:430PCS; 40fcl: 910PCS
Power Consumption 45W(max)
EMC/ Product Safety FCC Class A / CE Mark / LVD / CCC
OS support Windows XP Professional, Windows XP Embedded, WEPOS,Linux
Accessories
AC Power Cable North American and European power cables included; Other regions available upon request.
Driver CD 1*CD disk for motherboard and touch function
POWER: POS power button
DC IN: POS 12V DC input
PS2/M: Mouse
PS2/KB : Keyboard
LPT : 25DB parallel printer
VGA : VGA output
COM1.2.3. Serial devices,Ex. Thermal printer, customer display,scanner
USB : USB Devices
LAN : RJ-45 connect 100MsLAN, Internet
LINE out : Audio output to other device
MIC IN : Speaker input
Products Application:
Hotels, restaurants, fast food shops, cafes, bread shop
Commercial Street, boutiques, department stores, cosmetic stores, high-level barber shop
Sauna, nightclubs, theme parks, casinos, lottery sales points.
car parks, hotels, aviation, subway, station
With different design idea, the AIO-1521 designed with optimum configuration of point-of-sale components for small and middle sized businesses.
Multi-angle, flexible adjustment, the panel is available for 0-90 visual angle to meet different installment and use requirements.
Unique protective lock avoiding illegal copies of commercial information and better production of data.
Simple Slide in/out HDD replacement, make maintenance of the data much easier.
Stable touch panel performance, compact design looks professional and comfortable use.
Touch panel built-in, low power consumption to 30W, easy to access all kinds of peripheral expansion.
*Cables available to put through the metal stand, this can avoid the accidental disconnection of cables during the daily cleaning. The product with all the wires looked neat and tidy.
l Built-in Wi-fi Optional.
LAN: RJ-45 *1, support kilomega input ;
Specification:
Model Name: AIO-1521
Display Type: 15' Touch screen POSeen POS
Colour: Black
Accessories options: ISO Track 1/2/3 Magnetic Stripe Reader & Customer pole display (VFD / LED8) LED8)LED8)
Motherboard part
Main board: Intel® Core I3ore I3re I3
CPU: Intel® Core I3-2100 processorcessoressor
Chipset
Memory: DDRIII 1066/1333*1 2GB Standard memory
Hard driver: SATA 2.5 inch hard driver 160G or higher
Display part
LCD panel size: 15 inch BRAND NEW TFT LCD
Brightness: 250cd /m2
Resolution: 1024x768(max)
Touch screen: 5-wire Resistive touch screen Taiwan Branded
Viewing Angle: L/R:140 U/D:130
Front I/O: USB(2.0) x2 power button x1 reset button x1
Rear I/O: PS2 mouse x1 PS2 keyboard x1
COM port x3
LTP printer x1
VGA out (15Pin D-sub) x1, duplicate and extend screen available
RJ-45 network x2 RTL8111C
USB(2.0) x4
Audio output x1
Microphone in x1
DC 12V output x1
OperationTemperature: 0 ºC to 40 ºCo 40 ºCdm;Co 40 ºC
StorageTemperature: -20 ºC to 60 ºCo 60 ºCdm;Co 60 ºC
Power Supply: 100V-250V /50-60HZ AC power source input huntkey brand
Power Supply: 100V-250V /50-60HZ AC power source input huntkey brand
Packing dimension: 470x410x310(mm) ;
Package: carton box with Foam packaging NW: 6.5KG GW:8.5KG
Loading quantity 20fcl:430PCS; 40fcl: 910PCS
Power Consumption 45W(max)
EMC/ Product Safety FCC Class A / CE Mark / LVD / CCC
OS support Windows XP Professional, Windows XP Embedded, WEPOS,Linux
Accessories
AC Power Cable North American and European power cables included; Other regions available upon request.
Driver CD 1*CD disk for motherboard and touch function
POWER: POS power button
DC IN: POS 12V DC input
PS2/M: Mouse
PS2/KB : Keyboard
LPT : 25DB parallel printer
VGA : VGA output
COM1.2.3. Serial devices,Ex. Thermal printer, customer display,scanner
USB : USB Devices
LAN : RJ-45 connect 100MsLAN, Internet
LINE out : Audio output to other device
MIC IN : Speaker input
Products Application:
Hotels, restaurants, fast food shops, cafes, bread shop
Commercial Street, boutiques, department stores, cosmetic stores, high-level barber shop
Sauna, nightclubs, theme parks, casinos, lottery sales points.
car parks, hotels, aviation, subway, station
