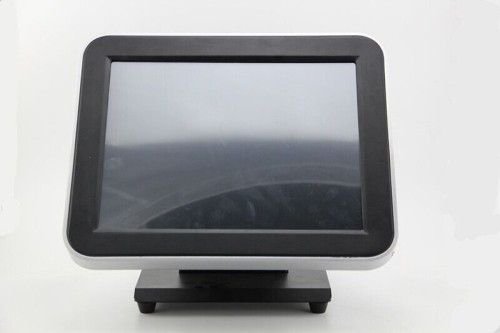

15 Inch POS Terminal/POS System/ Epos All in One

15 Inch POS Terminal/POS System/ Epos All in One

15英寸POS终端/ POS系统/ Epos All in One

议价

加入意向
型号。 AIO-1589
付款方法 IC卡
触摸屏 触摸屏
证明 ce,ccc,fcc,rohs
网络管理 支持网络管理
系统 视窗
硬盘 320g hdd
规范 ce,fcc,rohs
类型 触摸屏POS
卡的种类 磁卡
打印机
功能类型 POS消费
中央处理器 英特尔
记忆 2 gb
主板 Baytrial母板
起源 中国

英特尔Baytrial,无风扇低功耗15'4/5线电阻式触摸与2G内存,32G SSD2G SSD
特征:
凭借不同的设计理念,AIO-1589设计了针对中小企业的销售点组件的最佳配置。
*无风扇设计,散热少,性能持久。
* Intel Baytrial主板
*三菱LED新面板具有高亮度
*消费低
*工作时没有声音
*尘土不容易进入。
*良好的视角
*多角度,灵活调整,面板可用于0-90视角,以满足不同的安装和使用要求。
*稳定的触摸屏性能,紧凑的设计看起来专业舒适的使用。
*触摸屏内置,功耗低至45W,易于访问各种外设扩展。
*电缆可以穿过金属支架,这样可以避免在日常清洁过程中意外断开电缆。所有电线的产品看起来整洁。
*内置Wi-Fi可选。
* LAN:RJ-45 * 1,支持千兆输入;
应用于
餐饮:酒店,餐厅,快餐店,咖啡店,面包店和蛋糕店
零售商:商业街,精品店,百货公司,化妆品店和高档理发店
娱乐:桑拿,水疗,夜总会,主题公园,赌场和彩票销售点
商业:停车场,旅馆,航空,地铁,车站和码头的信息管理终端
规范:

型号名称

AIO-1589

显示类型

15'触摸屏POSen POS

颜色

黑色

附件选项

ISO轨道1/2/3磁条阅读器和客户极点显示(VFD / LED8)LED8)LED8)

主板零件


主板

贝母母板

中央处理器

英特尔®赛扬®J1800,双核,时钟速度2.41G,TDP 10WG,TDP 10WG,TDP 10W

记忆

2GB(4GB是可选)

硬盘

320G硬盘(500GB是可选)

触控面板

4线触摸屏(5线可选)

显示部分


液晶面板尺寸

15寸全新tft lcd

解析度

1024*768

显示

1 * vga

1 * hdmi'1'

1 *双通道24位LVDS'2'

存储

1 * sata 3gbps + 1 * msata'3'

以太网络

1 * realtekpci-e nic rtl8111e为1000mbps

音频

Realtek ALC662 5.1通道HDA编解码器,支持MIC /线路输出端口1 *放大器

COM

2 * RS232,4 * RS232可选

其他零件

usb:1 *后端i / o(usb3.0 / usb2.0)+ 3 *后置i / o(usb2.0)+ 2 *头(usb2.0)+ 1 *头/迷你pci-e(usb2。 0)

主板
规范

8 * gpio

1 *并行引脚头

1 * PS / 2引脚头

2 * mini pci-e

1 * SIM卡插槽

1 *前置音频

1 * 12VDC_OUTPower输出连接器

2 * 12VDC_INPower输入连接器

温度

储存:-20〜75ºC;ordm;C

操作:0〜60ºC;ordm;C

BIOS

ami uefi bios

因子

迷你ITX(170mm * 170mm)

Model NO. AIO-1589
Payment Method IC Card
Touch Screen Touch Screen
Certification CE, CCC, FCC, RoHS
Network Management Support Network Management
System Windows
Hard Disk 320g HDD
Specification CE, FCC, RoHs
Type Touch Screen POS
Card Type Magcard
Printer Thermal
Function Type POS for Consuming
CPU Intel
Memory 2 GB
Main Board Baytrial Mother Board
Origin China

Intel Baytrial, Fan-less with Low Consumption 15' 4/5 wire resistive Touch with 2G Memory ,32G SSD2G SSD
Features:
With different design idea, the AIO-1589 designed with optimum configuration of point-of-sale components for small and middle sized businesses.
*No fan design, less heat, long-lasting performance.
*Intel Baytrial main board
*Mitsubishi LED new Panel with high brightness
*Low Consumption
*There is no sound when it work.
*Dust is not easy go into it.
*Good viewing angle
* Multi-angle, flexible adjustment, the panel is available for 0-90 visual angle to meet different installment and use requirements.
*Stable touch panel performance, compact design looks professional and comfortable use.
*Touch panel built-in, low power consumption to 45W, easy to access all kinds of peripheral expansion.
*Cables available to put through the metal stand, this can avoid the accidental disconnection of cables during the daily cleaning. The product with all the wires looked neat and tidy.
*Built-in Wi-fi Optional.
*LAN: RJ-45 *1, support kilomega input ;
Application in
Catering: hotel, restaurant, fast-food restaurant, coffee shop, bakery and cake shop
Retailer: Business Street, boutique, department store, cosmetics shop and high-class barbershop
Recreation: sauna, spa, night club, theme park, casino and point of sales for lottery ticket
Commercial: information management terminals for parking lot, inn, aviation, subway, station and wharf
Specification:

Model Name

AIO-1589

Display Type

15' Touch screen POSen POS

Colour

Black

Accessories options

ISO Track 1/2/3 Magnetic Stripe Reader & Customer pole display (VFD / LED8)LED8)LED8)

Motherboard part


Main board

Baytrial mother board

CPU

Intel® Celeron®J1800, Dual-core, clock speed 2.41G,TDP 10WG,TDP 10WG,TDP 10W

Memory

2GB ( 4GB is optional)

Hard disk

320G HDD (500GB is optional)

Touch Panel

4-wire Touch Panel ( 5 wire is optional)

Display part


LCD panel size

15 inch BRAND NEW TFT LCD

Resolution

1024*768

Display

1 * VGA

1 * HDMI[1]

1 * Dual Channel 24-bit LVDS[2]

Storage

1* SATA 3Gbps+ 1 * mSATA[3]

Ethernet

1 * RealtekPCI-E NIC RTL8111E for 1000Mbps

Audio

Realtek ALC662 5.1 Channel HDA Codec , Support MIC/Line-out Ports1 * Amplifier

COM

2* RS232, 4*RS232 optional

Other Parts

USB: 1 * Rear I/O(USB3.0/USB2.0) + 3 * Rear I/O(USB2.0) + 2 * Header(USB2.0) + 1 * Header/Mini PCI-E(USB2.0)

Main Board
Specification

8 * GPIO

1 * Parallel Pin Header

1 * PS/2 Pin Header

2* Mini PCI-E

1 * SIM Card Slot

1 * Front Audio

1 * 12VDC_OUTPower Output Connector

2 * 12VDC_INPower Input Connector

Temperature

Storage: -20~75ºCordm;Cordm;C

Operating: 0~60ºCordm;Cordm;C

BIOS

AMI UEFI BIOS

Factor

Mini-ITX(170mm * 170mm)
