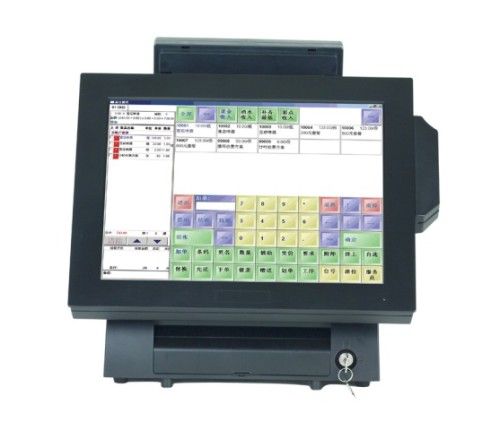

15" Touch POS Terminal Cash Register TPV
15'触摸POS终端收款机TPV
议价
加入意向| 型号。 | AIO-1521 |
| 付款方法 | 现金 |
| 打印机 | 热 |
| 功能类型 | POS消费 |
| 中央处理器 | 英特尔®酷睿I3-2100处理器essor |
| 亮度 | 为250cd / m 2的 |
| 触摸 | 5线电阻 |
| 起源 | 中国 |
| 类型 | POS |
| 触摸屏 | 触摸屏 |
| 证明 | ce，ccc，fcc |
| 网络管理 | 支持网络管理 |
| 系统 | 视窗 |
| 解析度 | 1024X768 |
| 规范 | ce，fcc，rohs |
特征：
凭借不同的设计理念，AIO-1521设计了针对中小企业的销售点组件的最佳配置。
多角度，灵活调整，面板可提供0-90视角，以满足不同的安装和使用要求。
避免商业信息的非法拷贝和更好的数据生成。
简单的滑入/取出硬盘更换，使数据的维护更容易。
稳定的触摸屏性能，紧凑的设计看起来专业舒适的使用。
内置触摸屏，功耗低至30W，易于访问各种外设扩展。
*电缆可以穿过金属支架，这样可以避免在日常清洁过程中意外断开电缆。所有电线的产品看起来整洁。
L内置Wi-Fi可选。
LAN：RJ-45 * 1，支持千兆输入;
操作系统支持Windows XP Professional，Windows XP Embedded，WEPOS，Linux
饰品
交流电源线包括北美和欧洲电力电缆;其他地区可应要求提供。
驱动程序CD 1 *用于主板和触摸功能的CD盘
POWER：POS电源按钮
直流输入：pos 12v直流输入
PS2 / M：鼠标
PS2 / KB：键盘
LPT：25dB并行打印机
VGA：VGA输出
COM1.2.3。串行设备，热敏打印机，客户显示屏，扫描仪
usb：usb设备
LAN：RJ-45连接100MsLAN，Internet
LINE输出：音频输出到其他设备
MIC IN：扬声器输入
产品应用：
酒店，餐馆，快餐店，咖啡馆，面包店
商业街，精品店，百货公司，化妆品店，高级理发店
桑拿浴室，夜总会，主题公园，赌场，彩票销售点。
停车场，酒店，航空，地铁，车站
凭借不同的设计理念，AIO-1521设计了针对中小企业的销售点组件的最佳配置。
多角度，灵活调整，面板可提供0-90视角，以满足不同的安装和使用要求。
避免商业信息的非法拷贝和更好的数据生成。
简单的滑入/取出硬盘更换，使数据的维护更容易。
稳定的触摸屏性能，紧凑的设计看起来专业舒适的使用。
内置触摸屏，功耗低至30W，易于访问各种外设扩展。
*电缆可以穿过金属支架，这样可以避免在日常清洁过程中意外断开电缆。所有电线的产品看起来整洁。
L内置Wi-Fi可选。
LAN：RJ-45 * 1，支持千兆输入;
操作系统支持Windows XP Professional，Windows XP Embedded，WEPOS，Linux
饰品
交流电源线包括北美和欧洲电力电缆;其他地区可应要求提供。
驱动程序CD 1 *用于主板和触摸功能的CD盘
POWER：POS电源按钮
直流输入：pos 12v直流输入
PS2 / M：鼠标
PS2 / KB：键盘
LPT：25dB并行打印机
VGA：VGA输出
COM1.2.3。串行设备，热敏打印机，客户显示屏，扫描仪
usb：usb设备
LAN：RJ-45连接100MsLAN，Internet
LINE输出：音频输出到其他设备
MIC IN：扬声器输入
产品应用：
酒店，餐馆，快餐店，咖啡馆，面包店
商业街，精品店，百货公司，化妆品店，高级理发店
桑拿浴室，夜总会，主题公园，赌场，彩票销售点。
停车场，酒店，航空，地铁，车站
| 型号名称 | AIO-1521 |
| 显示类型 | 15'触摸屏POSen POS |
| 颜色 | 黑色 |
| 附件选项 | ISO轨道1/2/3磁条阅读器和客户极点显示（VFD / LED8）LED8）LED8) |
| 主板零件 | |
| 主板 | 英特尔®酷睿I3re I3re I3 |
| 中央处理器 | 英特尔®酷睿I3-2100处理器essor |
| 芯片组 | |
| 记忆 | DDRIII 1066/1333 * 1 2GB标准内存 |
| 硬驱动 | SATA 2.5寸硬盘驱动器160G以上 |
| 显示部分 | |
| 液晶面板尺寸 | 15寸全新tft lcd |
| 亮度 | 250cd / m2 |
| 解析度 | 1024 * 768（最大） |
| 触摸屏 | 5线电阻式触摸屏台湾品牌 |
| 可视角度 | l / r：140u / d：130 |
| 前端I / O | USB（2.0）* 2电源按钮* 1复位按钮* 1 |
| 后置I / O | PS2鼠标* 1 PS2键盘* 1 |
| COM端口* 3 | |
| LTP打印机* 1 | |
| VGA输出（15Pin D-sub）* 1，复制和延伸屏幕可用 | |
| RJ-45网络* 2 RTL8111C | |
| USB（2.0）* 4 | |
| 音频输出* 1 | |
| 麦克风* 1 | |
| DC 12V输出* 1 | |
| OperationTemperature | 0ºC至40ºC40ºCrdm;C 40 ºC |
| 储存温度 | -20ºC至60ºC60ºCrdm;C 60 ºC |
| 电源 | 100V-250V / 50-60HZ交流电源输入huntkey品牌 |
| 包装尺寸 | 470 * 410 * 310（mm）; |
| 包装：带泡沫包装的纸箱 | nw：6.5kg gw：8.5kg |
| 装载数量 | 20FCL：430PCS; 40fcl：910PCS |
| 能量消耗 | 45W（最大） |
| EMC /产品安全 | fcc class a / ce mark / lvd / ccc |
| Model NO. | AIO-1521 |
| Payment Method | Cash |
| Printer | Thermal |
| Function Type | POS for Consuming |
| CPU | Intel® Core I3-2100 Processorcessoressor |
| Brightness | 250CD/M2 |
| Touch | 5-Wire Resistive |
| Origin | China |
| Type | POS |
| Touch Screen | Touch Screen |
| Certification | CE, CCC, FCC |
| Network Management | Support Network Management |
| System | Windows |
| Resolution | 1024X768 |
| Specification | CE, FCC, RoHs |
Features:
With different design idea, the AIO-1521 designed with optimum configuration of point-of-sale components for small and middle sized businesses.
Multi-angle, flexible adjustment, the panel is available for 0-90 visual angle to meet different installment and use requirements.
Unique protective lock avoiding illegal copies of commercial information and better production of data.
Simple Slide in/out HDD replacement, make maintenance of the data much easier.
Stable touch panel performance, compact design looks professional and comfortable use.
Touch panel built-in, low power consumption to 30W, easy to access all kinds of peripheral expansion.
*Cables available to put through the metal stand, this can avoid the accidental disconnection of cables during the daily cleaning. The product with all the wires looked neat and tidy.
L Built-in Wi-fi Optional.
LAN: RJ-45 *1, support kilomega input;
OS support Windows XP Professional, Windows XP Embedded, WEPOS, Linux
Accessories
AC Power Cable North American and European power cables included; Other regions available upon request.
Driver CD 1*CD disk for motherboard and touch function
POWER: POS power button
DC IN: POS 12V DC input
PS2/M: Mouse
PS2/KB: Keyboard
LPT: 25dB parallel printer
VGA: VGA output
COM1.2.3. Serial devices, Ex. Thermal printer, customer display, scanner
USB: USB Devices
LAN: RJ-45 connect 100MsLAN, Internet
LINE out: Audio output to other device
MIC IN: Speaker input
Products Application:
Hotels, restaurants, fast food shops, cafes, bread shop
Commercial Street, boutiques, department stores, cosmetic stores, high-level barber shop
Sauna, nightclubs, theme parks, casinos, lottery sales points.
Car parks, hotels, aviation, subway, station
With different design idea, the AIO-1521 designed with optimum configuration of point-of-sale components for small and middle sized businesses.
Multi-angle, flexible adjustment, the panel is available for 0-90 visual angle to meet different installment and use requirements.
Unique protective lock avoiding illegal copies of commercial information and better production of data.
Simple Slide in/out HDD replacement, make maintenance of the data much easier.
Stable touch panel performance, compact design looks professional and comfortable use.
Touch panel built-in, low power consumption to 30W, easy to access all kinds of peripheral expansion.
*Cables available to put through the metal stand, this can avoid the accidental disconnection of cables during the daily cleaning. The product with all the wires looked neat and tidy.
L Built-in Wi-fi Optional.
LAN: RJ-45 *1, support kilomega input;
OS support Windows XP Professional, Windows XP Embedded, WEPOS, Linux
Accessories
AC Power Cable North American and European power cables included; Other regions available upon request.
Driver CD 1*CD disk for motherboard and touch function
POWER: POS power button
DC IN: POS 12V DC input
PS2/M: Mouse
PS2/KB: Keyboard
LPT: 25dB parallel printer
VGA: VGA output
COM1.2.3. Serial devices, Ex. Thermal printer, customer display, scanner
USB: USB Devices
LAN: RJ-45 connect 100MsLAN, Internet
LINE out: Audio output to other device
MIC IN: Speaker input
Products Application:
Hotels, restaurants, fast food shops, cafes, bread shop
Commercial Street, boutiques, department stores, cosmetic stores, high-level barber shop
Sauna, nightclubs, theme parks, casinos, lottery sales points.
Car parks, hotels, aviation, subway, station
| Model Name | AIO-1521 |
| Display Type | 15' Touch screen POSen POS |
| Colour | Black |
| Accessories options | ISO Track 1/2/3 Magnetic Stripe Reader& Customer pole display (VFD / LED8)LED8)LED8) |
| Motherboard part | |
| Main board | Intel® Core I3re I3re I3 |
| CPU | Intel® Core I3-2100 processoressoressor |
| Chipset | |
| Memory | DDRIII 1066/1333*1 2GB Standard memory |
| Hard driver | SATA 2.5 inch hard driver160Gor higher |
| Display part | |
| LCD panel size | 15 inch BRAND NEW TFT LCD |
| Brightness | 250cd /m2 |
| Resolution | 1024*768(max) |
| Touch screen | 5-wire Resistive touch screen Taiwan Branded |
| Viewing Angle | L/R:140 U/D:130 |
| Front I/O | USB(2.0) *2 power button*1 reset button*1 |
| Rear I/O | PS2 mouse*1 PS2 keyboard*1 |
| COM port*3 | |
| LTP printer*1 | |
| VGA out (15Pin D-sub)*1, duplicate and extend screen available | |
| RJ-45 network *2 RTL8111C | |
| USB(2.0)*4 | |
| Audio output *1 | |
| Microphone in*1 | |
| DC 12V output*1 | |
| OperationTemperature | 0 ºC to 40 ºC 40 ºCrdm;C 40 ºC |
| StorageTemperature | -20 ºC to 60 ºC 60 ºCrdm;C 60 ºC |
| Power Supply | 100V-250V /50-60HZ AC power source input huntkey brand |
| Packing dimension | 470*410*310(mm) ; |
| Package: carton box with Foam packaging | NW: 6.5KG GW:8.5KG |
| Loading quantity | 20fcl:430PCS; 40fcl: 910PCS |
| Power Consumption | 45W(max) |
| EMC/ Product Safety | FCC Class A / CE Mark / LVD / CCC |
