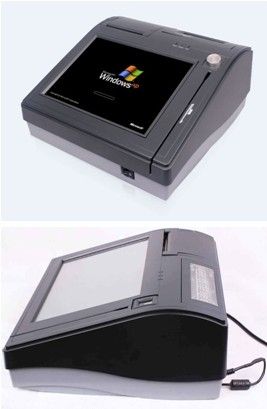

POS Terminal Printer with 10.1" All-in-One PC Customer Display, Msr
POS终端打印机，具有10.1'一体化PC客户显示器
议价
加入意向| 型号。 | AIO-1080 |
| 付款方法 | 现金 |
| 触摸屏 | 触摸屏 |
| 证明 | ce，ccc，fcc |
| 网络管理 | 支持网络管理 |
| 系统 | 视窗 |
| 芯片组 | 英特尔D525 + Ich8芯片组 |
| STORGE | 320 gb hdd |
| 触控面板 | 5线电阻 |
| 起源 | 中国 |
| 类型 | Barcoder |
| 卡的种类 | 磁卡 |
| 打印机 | 热 |
| 功能类型 | POS消费 |
| 中央处理器 | 英特尔®凌动D525 CPU内核1.8ge 1.8g 1.8g |
| 主板 | 英特尔处理器D525 |
| 记忆 | 2 gb |
| 解析度 | 1024X768 |
| 规范 | ce，fcc，rohs |
特征：
高度集成的POS终端由触摸屏热敏打印机，可选MSR和达拉斯键组成。它具有流线型设计和高度集成的组件，并且坚固耐用。专业的POS软件和多界面设计符合最关键的要求。
intel®atom d525 10.1'5-wire touch with 2g ddr3 2.4 sata 320g hdda 320g hddG HDD
可选功能：
可选磁条阅读器
达拉斯钥匙，客户展示
规范：
可选外设全面支持
主板英特尔®处理器D525 D525 D525
CPUIntel®Atom D525 CPU内核1.8G 1.8G 1.8G
芯片组Intel D525 + ICH8芯片组
内存支持DDRIII 1066 / 1333X1 2GB（最大：4GB）
存储1X2.5'SATA硬盘320GB SATA接口面
液晶面板尺寸10.1寸TFT液晶显示屏
尺寸365X376X119mm（WXDXH）
分辨率1024X768（最大）
触摸屏5线电阻式触摸屏
电阻20 000 000次触摸寿命
I / O端口4XUSB 2.0端口
3x db-9（com 1/2/3）
1xps / 2端口
lan 1x10 / 100 / 1000mbps
音频接口X 2
1个XDB-15 VGA接口
1X RJ11现金抽屉端口（12 / 24V）
工作温度0ºC至45ºC45ºCdm; C 45º C
存储温度：-20ºC至60ºC60ºCdm; C 60º C
功耗48W（最大）
查看天使15-18度可调
显示面板2X20LCD
机构80mm热
速度200mmc（最大）
纸宽58mm / 80mm可调
纸直径60mm
应用：
广泛应用于不同领域，简化用户操作，如银行，ATM，POS收银机，食品饮料订单菜单，行业，医疗事务，IPC，信息机，零售，运输，办公自动化等。
高度集成的POS终端由触摸屏热敏打印机，可选MSR和达拉斯键组成。它具有流线型设计和高度集成的组件，并且坚固耐用。专业的POS软件和多界面设计符合最关键的要求。
intel®atom d525 10.1'5-wire touch with 2g ddr3 2.4 sata 320g hdda 320g hddG HDD
可选功能：
可选磁条阅读器
达拉斯钥匙，客户展示
规范：
可选外设全面支持
主板英特尔®处理器D525 D525 D525
CPUIntel®Atom D525 CPU内核1.8G 1.8G 1.8G
芯片组Intel D525 + ICH8芯片组
内存支持DDRIII 1066 / 1333X1 2GB（最大：4GB）
存储1X2.5'SATA硬盘320GB SATA接口面
液晶面板尺寸10.1寸TFT液晶显示屏
尺寸365X376X119mm（WXDXH）
分辨率1024X768（最大）
触摸屏5线电阻式触摸屏
电阻20 000 000次触摸寿命
I / O端口4XUSB 2.0端口
3x db-9（com 1/2/3）
1xps / 2端口
lan 1x10 / 100 / 1000mbps
音频接口X 2
1个XDB-15 VGA接口
1X RJ11现金抽屉端口（12 / 24V）
工作温度0ºC至45ºC45ºCdm; C 45º C
存储温度：-20ºC至60ºC60ºCdm; C 60º C
功耗48W（最大）
查看天使15-18度可调
显示面板2X20LCD
机构80mm热
速度200mmc（最大）
纸宽58mm / 80mm可调
纸直径60mm
应用：
广泛应用于不同领域，简化用户操作，如银行，ATM，POS收银机，食品饮料订单菜单，行业，医疗事务，IPC，信息机，零售，运输，办公自动化等。
| Model NO. | AIO-1080 |
| Payment Method | Cash |
| Touch Screen | Touch Screen |
| Certification | CE, CCC, FCC |
| Network Management | Support Network Management |
| System | Windows |
| Chipset | Intel D525+Ich8 Chipset |
| Storge | 320 GB HDD |
| Touch Panel | 5-Wire Resistive |
| Origin | China |
| Type | Barcoder |
| Card Type | Magcard |
| Printer | Thermal |
| Function Type | POS for Consuming |
| CPU | Intel® Atom D525 CPU Core 1.8ge 1.8g 1.8g |
| Main Board | Intel Processor D525 |
| Memory | 2 GB |
| Resolution | 1024X768 |
| Specification | CE, FCC, RoHs |
Features:
Highly integrated POS terminal is composed of touch screen thermal printer, optional MSR and Dallas key. It has a streamlined design and highly integrated assemblies, and is robust and durable. The professional POS software, and the multiple-interface design meets the most critical requirements.
Intel® ATOM D525 10.1' 5-wire Touch with 2G DDR3 2.4 SATA 320G HDDA 320G HDDG HDD
Optional Function:
Optional Magnetic strip Reader
Dallas key, customer display
Specification:
Optional Peripherals Full support
Main Board Intel® Processor D525 D525 D525
CPU Intel® Atom D525 CPU core 1.8G 1.8G 1.8G
Chipset Intel D525+ICH8 chipset
Memory Support DDRIII 1066/1333X1 2GB (Max: Up to 4GB)
Storage 1X2.5' SATA HDD 320GB SATA interfaceerface
LCD panel Size 10.1 inch TFT LCD
Dimension 365X376X119mm(WXDXH)
Resolution 1024X768(max)
Touch panel 5 wire resistive touch screen made in TW
Resistive 20, 000, 000 times touch life
I/O port 4XUSB 2.0 port
3X dB-9(COM 1/2/3)
1XPS/2 Port
LAN 1X10/100/1000Mbps
Audio Interface X 2
1 XDB-15 VGA Interface
1X RJ11 Cash drawer port(12/24V)
Operating temp 0º C to 45º C 45º Cdm; C 45º C
Storage Temp: -20º C to 60º C 60º Cdm; C 60º C
Power Consumption 48W(max)
View Angel 15-18 degree adjustable
Display panel 2X20LCD
Mechanism 80mm thermal
Speed 200MMC(MAX)
Paper Width 58mm/80mm adjustable
Paper Diameter 60mm
Applications:
Widely applied to different fields, simplify user operation, such as Banking, ATM, POS cash register, food and Beverage order Dishes, industry, Medical Affairs, IPC, information machines, Retail, Transports, office Automation ect.
Highly integrated POS terminal is composed of touch screen thermal printer, optional MSR and Dallas key. It has a streamlined design and highly integrated assemblies, and is robust and durable. The professional POS software, and the multiple-interface design meets the most critical requirements.
Intel® ATOM D525 10.1' 5-wire Touch with 2G DDR3 2.4 SATA 320G HDDA 320G HDDG HDD
Optional Function:
Optional Magnetic strip Reader
Dallas key, customer display
Specification:
Optional Peripherals Full support
Main Board Intel® Processor D525 D525 D525
CPU Intel® Atom D525 CPU core 1.8G 1.8G 1.8G
Chipset Intel D525+ICH8 chipset
Memory Support DDRIII 1066/1333X1 2GB (Max: Up to 4GB)
Storage 1X2.5' SATA HDD 320GB SATA interfaceerface
LCD panel Size 10.1 inch TFT LCD
Dimension 365X376X119mm(WXDXH)
Resolution 1024X768(max)
Touch panel 5 wire resistive touch screen made in TW
Resistive 20, 000, 000 times touch life
I/O port 4XUSB 2.0 port
3X dB-9(COM 1/2/3)
1XPS/2 Port
LAN 1X10/100/1000Mbps
Audio Interface X 2
1 XDB-15 VGA Interface
1X RJ11 Cash drawer port(12/24V)
Operating temp 0º C to 45º C 45º Cdm; C 45º C
Storage Temp: -20º C to 60º C 60º Cdm; C 60º C
Power Consumption 48W(max)
View Angel 15-18 degree adjustable
Display panel 2X20LCD
Mechanism 80mm thermal
Speed 200MMC(MAX)
Paper Width 58mm/80mm adjustable
Paper Diameter 60mm
Applications:
Widely applied to different fields, simplify user operation, such as Banking, ATM, POS cash register, food and Beverage order Dishes, industry, Medical Affairs, IPC, information machines, Retail, Transports, office Automation ect.
