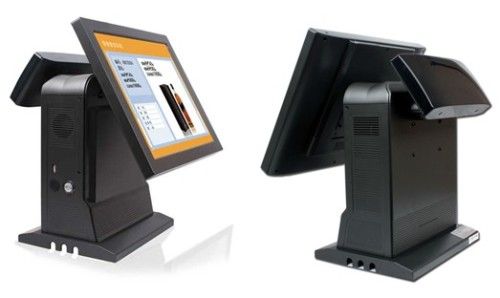

Retail Point of Sale System with 15" All-in-One Touch PC
零售销售点系统与15'一体式触摸电脑
议价
加入意向| 型号。 | AIO-1580 |
| 付款方法 | 现金 |
| 触摸屏 | 触摸屏 |
| 证明 | ce，ccc，fcc |
| 网络管理 | 支持网络管理 |
| 系统 | 视窗 |
| 芯片组 | 英特尔D525 + Ich8芯片组 |
| 存储 | 320 gb hdd |
| 解析度 | 1024X768 |
| 规范 | ce，fcc，rohs |
| 类型 | 固定 |
| 卡的种类 | 磁卡 |
| 打印机 | 热 |
| 功能类型 | POS消费 |
| 中央处理器 | 英特尔®凌动D525 CPU内核1.8ge 1.8g 1.8g |
| 主板 | 英特尔®处理器D525 Biostar Taiwan Brandedrandedanded |
| 记忆 | 2 gb |
| 亮度 | 为250cd / m 2的 |
| 触控面板 | 5线电阻 |
| 起源 | 中国 |
特征：
AIO-1580专为高品质标准所需的品牌连锁店客户而设计。通过使用从台湾直接进口的主板和触摸屏。它适应英特尔视频和音频卡。产品售后服务3年。
规范：
可选外围设备ISO轨道1/2/3磁条阅读器和WiFi和内置扬声器外壳eaker out
主板intel®处理器d525生物星台湾品牌ANDED
CPUIntel®Atom D525 CPU内核1.8G 1.8G 1.8G
芯片组Intel D525 + ICH8芯片组
显卡Intel Graphics Media Accelerator3150（256MB / Intel）
声卡RTL ALC662 @INTEL 82801G（ICH7）高保真音频
内存支持DDRIII 1066 / 1333X1 2GB（最大：4GB）
存储标准320G硬盘SATA接口
液晶面板尺寸15寸TFT液晶显示屏
亮度250CD / m2
分辨率1024X768（最大）
台湾BRANDED制造的触摸屏5线电阻式触摸屏
5线电阻20万次触摸寿命
视角地平线：140垂直：130
倾斜角0-90度
I / O端口1X电源按钮
PS2鼠标X1 PS2键盘x1
串口：在主板上，COM portx3 dB-9
并行：1xt并行端口
vga（15pin d-sub）x1
lan：rj-45 x1
USB（2.0）X5
音频输出X1; 2x内置扬声器（可选）
麦克风在x1，
工作温度0〜40ºC;ordm;C
存储温度：-40〜50ºC;ordm;C
功耗35W（最大）
操作系统Windows XP Professional，Windows XP Embedded，WEPOS，Linux
交流电源线包括北美和欧洲电力电缆;其他地区可应要求提供。
驱动程序CD 1xCD磁盘为主板和触摸功能
电源适配器100-240V / 3.5A 47〜63Hz
壁挂套件包括用于壁挂的支架和螺钉。
产品应用：
酒店，餐馆，快餐店，咖啡馆，面包店
商业街，精品店，百货公司，化妆品店，高层理发店
桑拿浴室，夜总会，主题公园，赌场，彩票销售点。
停车场，酒店，航空，地铁，车站
AIO-1580专为高品质标准所需的品牌连锁店客户而设计。通过使用从台湾直接进口的主板和触摸屏。它适应英特尔视频和音频卡。产品售后服务3年。
规范：
可选外围设备ISO轨道1/2/3磁条阅读器和WiFi和内置扬声器外壳eaker out
主板intel®处理器d525生物星台湾品牌ANDED
CPUIntel®Atom D525 CPU内核1.8G 1.8G 1.8G
芯片组Intel D525 + ICH8芯片组
显卡Intel Graphics Media Accelerator3150（256MB / Intel）
声卡RTL ALC662 @INTEL 82801G（ICH7）高保真音频
内存支持DDRIII 1066 / 1333X1 2GB（最大：4GB）
存储标准320G硬盘SATA接口
液晶面板尺寸15寸TFT液晶显示屏
亮度250CD / m2
分辨率1024X768（最大）
台湾BRANDED制造的触摸屏5线电阻式触摸屏
5线电阻20万次触摸寿命
视角地平线：140垂直：130
倾斜角0-90度
I / O端口1X电源按钮
PS2鼠标X1 PS2键盘x1
串口：在主板上，COM portx3 dB-9
并行：1xt并行端口
vga（15pin d-sub）x1
lan：rj-45 x1
USB（2.0）X5
音频输出X1; 2x内置扬声器（可选）
麦克风在x1，
工作温度0〜40ºC;ordm;C
存储温度：-40〜50ºC;ordm;C
功耗35W（最大）
操作系统Windows XP Professional，Windows XP Embedded，WEPOS，Linux
交流电源线包括北美和欧洲电力电缆;其他地区可应要求提供。
驱动程序CD 1xCD磁盘为主板和触摸功能
电源适配器100-240V / 3.5A 47〜63Hz
壁挂套件包括用于壁挂的支架和螺钉。
产品应用：
酒店，餐馆，快餐店，咖啡馆，面包店
商业街，精品店，百货公司，化妆品店，高层理发店
桑拿浴室，夜总会，主题公园，赌场，彩票销售点。
停车场，酒店，航空，地铁，车站
| Model NO. | AIO-1580 |
| Payment Method | Cash |
| Touch Screen | Touch Screen |
| Certification | CE, CCC, FCC |
| Network Management | Support Network Management |
| System | Windows |
| Chipset | Intel D525+Ich8 Chipset |
| Storage | 320 GB HDD |
| Resolution | 1024X768 |
| Specification | CE, FCC, RoHs |
| Type | Fixed |
| Card Type | Magcard |
| Printer | Thermal |
| Function Type | POS for Consuming |
| CPU | Intel® Atom D525 CPU Core 1.8ge 1.8g 1.8g |
| Main Board | Intel® Processor D525 Biostar Taiwan Brandedrandedanded |
| Memory | 2 GB |
| Brightness | 250CD/M2 |
| Touch Panel | 5-Wire Resistive |
| Origin | China |
Features:
AIO-1580 is designed for the High Quality standard required clients of branded chain stores. By using the main board and touch panel imported from Taiwan directly. It adapts the Intel video and audio card. Product after-service 3 years.
Specification:
Optional Peripherals ISO Track 1/2/3 Magnetic Stripe Reader &WiFi& built-in speaker outeaker outeaker out
Main Board Intel® Processor D525 BIOSTAR Taiwan BRANDEDANDEDANDED
CPU Intel® Atom D525 CPU core 1.8G 1.8G 1.8G
Chipset Intel D525+ICH8 chipset
Video card Intel Graphics Media Accelerator3150(256MB/Intel)
Sound Card RTL ALC662 @INTEL 82801G(ICH7)High Definition Audio
Memory Support DDRIII 1066/1333X1 2GB (Max: Up to 4GB)
Storage Standard 320G HDD SATA interface
LCD panel Size 15 inch TFT LCD
Brightness 250CD /m2
Resolution 1024X768(max)
Touch Screen 5 wire resistive touch screen made in Taiwan BRANDED
5-wires resistive 20, 000, 000 times touch life
View Angle Horizon: 140 Vertical: 130
Tilting Angle 0-90 degrees
I/O port 1X power button
PS2 mouse X1 PS2 key boardx1
Serial: On mother board, COM portx3 dB-9
Parallel: 1xtwo way Parallel port
VGA(15Pin D-SUB)X1
LAN: RJ-45 X1
USB(2.0)X5
Audio out X1; 2xInternal Speaker(option)
MIC IN X1,
Operating temp 0~40ºCordm;Cordm;C
Storage Temp: -40~50ºCordm;Cordm;C
Power Consumption 35W(max)
Operating System Windows XP Professional, Windows XP Embedded, WEPOS, Linux
AC Power Cable North American and European power cables included; Other regions available upon request.
Driver CD 1xCD disk for motherboard and touch function
Power adaptor 100-240V/ 3.5A 47~63Hz
Wall Mount Kit Bracket and screws for wall mount included.
Products Application:
Hotels, restaurants, fast food shops, cafes, bread shop
Commercial Street, boutiques, department stores, cosmetic stores, high-level barber shop
Sauna, nightclubs, theme parks, casinos, lottery sales points.
Car parks, hotels, aviation, subway, station
AIO-1580 is designed for the High Quality standard required clients of branded chain stores. By using the main board and touch panel imported from Taiwan directly. It adapts the Intel video and audio card. Product after-service 3 years.
Specification:
Optional Peripherals ISO Track 1/2/3 Magnetic Stripe Reader &WiFi& built-in speaker outeaker outeaker out
Main Board Intel® Processor D525 BIOSTAR Taiwan BRANDEDANDEDANDED
CPU Intel® Atom D525 CPU core 1.8G 1.8G 1.8G
Chipset Intel D525+ICH8 chipset
Video card Intel Graphics Media Accelerator3150(256MB/Intel)
Sound Card RTL ALC662 @INTEL 82801G(ICH7)High Definition Audio
Memory Support DDRIII 1066/1333X1 2GB (Max: Up to 4GB)
Storage Standard 320G HDD SATA interface
LCD panel Size 15 inch TFT LCD
Brightness 250CD /m2
Resolution 1024X768(max)
Touch Screen 5 wire resistive touch screen made in Taiwan BRANDED
5-wires resistive 20, 000, 000 times touch life
View Angle Horizon: 140 Vertical: 130
Tilting Angle 0-90 degrees
I/O port 1X power button
PS2 mouse X1 PS2 key boardx1
Serial: On mother board, COM portx3 dB-9
Parallel: 1xtwo way Parallel port
VGA(15Pin D-SUB)X1
LAN: RJ-45 X1
USB(2.0)X5
Audio out X1; 2xInternal Speaker(option)
MIC IN X1,
Operating temp 0~40ºCordm;Cordm;C
Storage Temp: -40~50ºCordm;Cordm;C
Power Consumption 35W(max)
Operating System Windows XP Professional, Windows XP Embedded, WEPOS, Linux
AC Power Cable North American and European power cables included; Other regions available upon request.
Driver CD 1xCD disk for motherboard and touch function
Power adaptor 100-240V/ 3.5A 47~63Hz
Wall Mount Kit Bracket and screws for wall mount included.
Products Application:
Hotels, restaurants, fast food shops, cafes, bread shop
Commercial Street, boutiques, department stores, cosmetic stores, high-level barber shop
Sauna, nightclubs, theme parks, casinos, lottery sales points.
Car parks, hotels, aviation, subway, station
