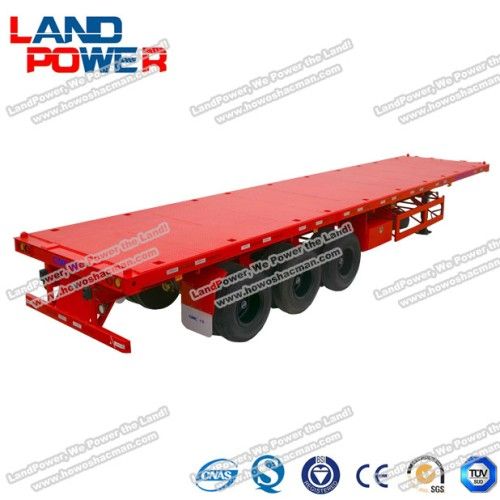

Flat Bed Semi Trailer
平床半拖车
| 型号。 | 半挂车 |
| 承载量 | 50T |
| 车轮底座 | 9000-10000mm |
| 年级 | 重负 |
| 叶轮类型 | 前半开式 |
| 万向节型 | 刚性万向节 |
| 牵引销型 | '我'TypeI'类型; Type |
| 差速齿轮类型 | 齿轮类型 |
| 连接类型 | 半挂车 |
| 车轴数 | 3 |
| 自倾销 | 不自我倾销 |
| 材料 | 铁 |
| 12 | 舰队 |
| 规范 | CE |
| HS编码 | 87163990 |
| 类型 | 轴 |
| 证明 | ece，ce，iso9001，ccc，iso / ts16949，sgs |
| 踏 | 1820毫米 |
| 牵引销材料 | 钢 |
| 钩型 | 单 |
| 制动垫材料 | NAO陶瓷 |
| 牵引销直径 | 50毫米 |
| 独立悬架型 | 拖臂类型 |
| 形状 | 平板 |
| 轮胎号码 | 12 |
| ABS防抱死制动系统 | ABS防抱死制动系统 |
| 条件 | 新 |
| 商标 | landpower |
| 起源 | 中国山东 |
外形尺寸12340mm * 2490mm * 1600mm
皮重7630kg载重40ton
King Pin设置1240mm后悬1690mm
轨道1840mm车轮底座6800mm + 1305mm + 1305mm
跑步机
悬挂三轴11芯片弹簧悬挂带均衡梁
轮胎11.00R20,12个单位
车轴CNHTC轴，13T容量
制动双线气动制动系统，WABCO紧急继电阀; T30 / 30 + T30气室;驻车制动
在框架下
主梁I形，轻合金（16Mn）通过自动埋弧焊。
横梁温和合金Q235
国王尺寸：50＃（2“）或90＃（3.5”）;类型：焊接或组装
起落架单侧操作或双面操作，静态容量30Ton
扭锁12个锁定位置与8个扭锁
平板地板方格板，厚度2.5mm
工具箱1工具箱，长度1.5m
电气和涂料Paint
灯和反射器后灯，后反射器，转向指示灯，侧反射器，雾灯，数字灯光light
接线24V，6线
空气/ ELEC。连接器ISO标准空气连接器，24V 7针插座
油漆颜色要求
外形尺寸 | 12340毫米*2490毫米*1600毫米 | |||
| 皮重 | 7630公斤 | 支付负荷 | 40吨 | |
| 金针设定 | 1240毫米 | 后悬 | 1690毫米 | |
| 跟踪 | 1840毫米 | 车轮底座 | 6800毫米+1305毫米+1305毫米 | |
| 跑步机 | ||||
| 悬挂 | 三轴11芯片弹簧悬挂带均衡梁 | |||
| 轮胎 | 11.00R20,12个单位 | |||
| 车轴 | 3轴，13T容量 | |||
| 刹车 | 双线气动制动系统，WABCO紧急继电阀; T30 / 30 + T30气室;驻车制动 | |||
| 在框架下 | ||||
| 主梁 | 我通过自动埋弧焊接成型，轻合金（16Mn）。 | |||
| 横梁 | 轻度合金Q235 | |||
| 王Pin | 尺寸：50＃（2“）或90＃（3.5”）;类型：焊接或组装 | |||
| 起落架 | 单面操作或双面操作，静态容量30Ton | |||
| 扭锁 | 12个锁定位置，8个扭锁 | |||
| 平板地板 | 方格板，厚度2.5mm | |||
| 工具箱 | 1个工具箱，长度1.5m | |||
| 电气和涂料Paint | ||||
| 灯光与反射器ctors | 后灯，后反射器，转向指示灯，侧反射器，雾灯，数字灯 | |||
| 接线 | 24V，6线 | |||
| 空气/ ELEC。连接器 | ISO标准空气连接器，24V 7针插座 | |||
| 涂料 | 颜色根据要求 | |||
| Model NO. | Semi-trailer |
| Load Capacity | 50T |
| Wheel Base | 9000-10000mm |
| Grade | Heavy Duty |
| Impeller Type | Front Semi-open Type |
| Universal Joint Type | Rigid Universal Joint |
| Towing Pin Type | 'I' TypeI" Type; Type |
| Differential Gear Type | Gear Type |
| Connecting Type | Semi-trailer |
| Axle Number | 3 |
| Self-dumping | Not Self-dumping |
| Material | Iron |
| 12 | Fleets |
| Specification | CE |
| HS Code | 87163990 |
| Type | Axle |
| Certification | ECE, CE, ISO9001, CCC, ISO/TS16949, SGS |
| Tread | 1820mm |
| Towing Pin Material | Steel |
| Hook Type | Single |
| Brake Pad Material | NAO Ceramic |
| Towing Pin Diameter | 50mm |
| Independent Suspension Type | Trailing Arm Type |
| Shape | Flatbed |
| Tire Number | 12 |
| ABS Anti-lock Braking System | ABS Anti-lock Braking System |
| Condition | New |
| Trademark | LANDPOWER |
| Origin | Shandong of China |
Overall Dimension 12340mm*2490mm*1600mm
Tare Weight 7630kg Pay Load 40ton
King Pin Setting 1240mm Rear Overhang 1690mm
Track 1840mm Wheel base 6800mm+1305mm+1305mm
Running Gear
Suspension Tri-axle 11-pcs leaf spring suspension with equalizer beam
Tires 11.00R20, 12units
Axles CNHTC axle, 13T capacity
Brakes Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; Parking brake
Under Frame
Main Beam I shape, Mild Alloy (16Mn) by Automatic submerged arc welding.
Cross Beam Mild Alloy Q235
King Pin Size: 50# (2'') or 90#(3.5''); Type: Welded or assembled
Landing Gear Single side operation or double side operation, Static capacity 30Ton
Twist Locks 12 lock positions with 8 twist locks
Flatbed Floor Checkered sheet, thickness 2.5mm
Toolbox 1 tool box, length 1.5m
Electrical & PaintPaintPaint
Lights & Reflectors Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate lightlightlight
Wiring 24V, 6 lines
Air/Elec. Connector ISO standard air connector, 24V 7 pin plug socket
Paint Color upon request
Overall Dimension | 12340mm*2490mm*1600mm | |||
| Tare Weight | 7630kg | Pay Load | 40ton | |
| King Pin Setting | 1240mm | Rear Overhang | 1690mm | |
| Track | 1840mm | Wheel base | 6800mm+1305mm+1305mm | |
| Running Gear | ||||
| Suspension | Tri-axle 11-pcs leaf spring suspension with equalizer beam | |||
| Tires | 11.00R20, 12units | |||
| Axles | 3 axle, 13T capacity each | |||
| Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake | |||
| Under Frame | ||||
| Main Beam | I shape, Mild Alloy (16Mn) by Automatic submerged arc welding. | |||
| Cross Beam | Mild Alloy Q235 | |||
| King Pin | Size: 50# (2'') or 90#(3.5''); Type: welded or assembled | |||
| Landing Gear | Single side operation or double side operation, Static capacity 30Ton | |||
| Twist Locks | 12 lock positions with 8 twist locks | |||
| Flatbed Floor | Checkered sheet, thickness 2.5mm | |||
| Toolbox | 1 tool box, length 1.5m | |||
| Electrical & PaintPaintPaint | ||||
| Lights & Reflectorsctorsctors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |||
| Wiring | 24V, 6 lines | |||
| Air/Elec. Connector | ISO standard air connector, 24V 7 pin plug socket | |||
| Paint | Color upon request | |||
