HD CCTV Video Recorder NVR Linux EV-CH16-H1405b IR Remote Control
高清CCTV视频录像机NVR Linux EV-CH16-H1405b红外遥控器
议价
加入意向| 型号。 | EV-CH16-h1405b |
| 音频 | 与音频 |
| 硬盘大小 | 0~16t |
| 类型 | DSP嵌入式 |
| 接口类型 | BNC / VGA / HDIM |
| 压缩格式 | H.264 |
| 音频输入/输出 | 16通道 |
| Aidio输出 | 16通道 |
| 运输包装 | 纸包装 |
| 起源 | 深圳 |
| 视频输入/输出 | 16通道 |
| 视频文件记录模式 | 报警录像，移动侦测录像，视频手册，时间延迟视频 |
| Hdd支持 | 4 |
| 应用 | 商用DVR |
| 操作系统 | 视窗 |
| 视频压缩 | H.264 |
| 遥控 | 带遥控器 |
| 商标 | Eyevison |
| 规范 | 34*27*15 |
| HS编码 | 8521909090 |
高清CCTV录像机NVR Linux EV-CH16-H1405B红外遥控器
快速详细：
1. 4ch * 720p / 960p / 2ch * 720/960 + 2ch * 1080p
P2P功能，互联网的关键
3.支持双流
4.支持WIFI连接
5.主处理器：HISILICON 3535
性能：16CH实时
描述：
1.支持ONVIF，可广泛连接网络摄像机，网络高速球和网络视频服务器的众多知名厂商
2.人性化设计，操作方便
3.支持各种移动设备
千兆以太网端口（可选）
产品规格：
主处理器：HISILICON 3535
性能：16CH实时
显示支持：1280 * 720,1280 * 960，1920 * 1080
技术参数 | |
| 主处理器 | 硅胶3535 |
| 系统资源 | 实况录制，播放，备份，远程视图，移动监控 |
| 控制模式 | 前面板，USB鼠标，红外遥控器，网络 |
| 显示 | 支持：1280 * 720,1280 * 960，1920 * 1080 |
| 视频 | 16ch输入，1ch电视输出，1ch vga输出，1 * hdmi（1080p） |
| 音频 | 16CH输入，1CH输出 |
| 报警 | 没有 |
| 记录 | 16 * 960P / 1080P实时 |
| 回放 | 8 * 960P或4 * 1080P实时 |
| 云台 | 是 |
| HDMI | 是 |
| ONVIF | 是 |
| 硬盘容量 | SATA接口HDD * 2 |
| 网络接口 | 1 * RJ45,100Mbps以太网 |
| 升级 | usb磁盘，网络 |
| 备用 | usb磁盘，网络 |
| 用户扩展 | 自己设计启动画面LOGO |
| 电源 | 12V / 2A |
| 尺寸 | 335 * 275 *50毫米 |
| 工作环境 | -10°〜+ 55°/ 10〜90％RH / 86〜106Kpa86〜106Kpa86~106Kpa |
有竞争力的优势：
中央电视台业界领先，专业的制造商
2.高品质
竞争力合理的价格
最好的售前，售中和售后服务
5.专业技术支持
| Model NO. | EV-CH16-H1405B |
| Audio | with Audio |
| Hard Disk Size | 0~16t |
| Type | DSP Embedded Type |
| Interface Type | BNC/VGA/Hdim |
| Compressed Format | H.264 |
| Audio Input/Output | 16 Channel |
| Aidio Output | 16 Channel |
| Transport Package | Paper Packaging |
| Origin | Shenzhen |
| Video Input/Output | 16 Channel |
| Video File Logging Mode | Alarm Recording, Motion Detection Recording, Video Manual, Time Lapse Video |
| Hdd Supported | 4 |
| Application | Commercial DVR |
| Operating System | Windows |
| Video Compression | H.264 |
| Remote Control | with Remote Control |
| Trademark | Eyevison |
| Specification | 34*27*15 |
| HS Code | 8521909090 |

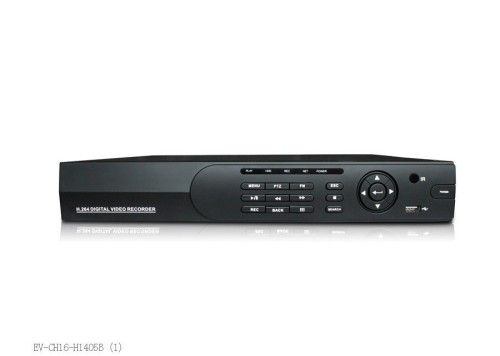

HD CCTV Video Recorder NVR Linux EV-CH16-H1405B IR Remote Control
Quick Detail:
1. 4CH*720P / 960P / 2CH*720/ 960+2CH*1080P
2. P2P function, a key to the Internet
3. Support dual-stream
4. Support WIFI connection
5. Main Processor: HISILICON 3535
6. Performance:16CH real time
Description:
1. Support ONVIF, can be widely connected to many well-known manufacturers of network cameras, network speed dome and network video servers
2. Humanized design, easy to operate
3. Support a variety of mobile devices
4. Gigabit Ethernet port (optional)
Specifications:
Main Processor: HISILICON 3535
Performance:16CH real time
Display Support: 1280*720, 1280*960, 1920*1080
Technical Parameters | |
| Main Processor | HISILICON 3535 |
| System Resource | Live recording, Playback, Backup, Remote view, Mobile monitoring |
| Control Mode | Front panel, USB mouse, IR remote control, Network |
| Display | Support:1280*720, 1280*960, 1920*1080 |
| Video | 16CH Input,1CH TV Output,1CH VGA Output , 1*HDMI(1080P) |
| Audio | 16CH Input,1CH Output |
| Alarm | NO |
| Recording | 16*960P/1080P real time |
| Play back | 8*960P or 4*1080P real time |
| PTZ | YES |
| HDMI | YES |
| ONVIF | YES |
| HDD Capacity | SATA Interface HDD*2 |
| Network Interface | 1*RJ45,100Mbps Ethernet |
| Upgrade | USB DISK, Network |
| Backup | USB DISK, Network |
| User Extend | Design boot screen LOGO by yourself |
| Power supply | 12V/2A |
| Size | 335*275*50mm |
| Working environment | -10°~+55°/10~90%RH/86~106Kpa86~106Kpa86~106Kpa |
Competitive advantages:
1. Leading and professional manufacturer in CCTV industry
2. High quality
3. Competitive and reasonable price
4. Best pre-sale,sale and after-sale service
5. Professional technical support
