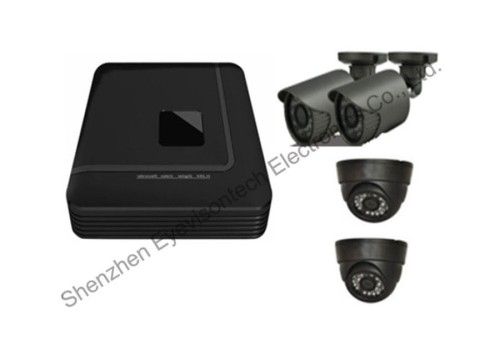

EV-1304nk IP NVR Systems, NVR Kits with 960p IP Dome / Bullet Camera
EV-1304nk IP NVR系统，NVR套件配有960p IP Dome /子弹式摄像机
议价
加入意向| 型号。 | EV-1304nk |
| 音频 | 与音频 |
| 硬盘大小 | 0~4t |
| 类型 | DSP嵌入式 |
| 接口类型 | BNC / VGA / HDIM |
| 压缩格式 | H.264 |
| 遥控 | 带遥控器 |
| Aidio输出 | 1通道 |
| 运输包装 | 纸包装 |
| 起源 | 深圳 |
| 视频输入/输出 | 4通道 |
| 视频文件记录模式 | 报警录像，移动侦测录像，视频手册，时间延迟视频 |
| Hdd支持 | 1 |
| 应用 | 商用DVR |
| 操作系统 | Linux的 |
| 视频压缩 | H.264 |
| 音频输入/输出 | 1通道 |
| 商标 | Eyevison |
| 规范 | 34*27*15 |
| HS编码 | 8521909090 |
EV-1304NK IP NVR系统，具有960P IP球机/子弹相机的NVR套件
快速详细：
本地显示：同时播放多达4CH
2.记录模式：手动，报警，运动检测，进度
3.支持P2P，OSD，双流，CMS软件，SDK
4. 1个RJ45 10M / 100M以太网端口
5.支持双流
描述：
1.支持ONVIF，可以广泛的连接到众多知名人士
网络摄像机制造商，网络高速球和网络
视频服务器
2.人性化（用户友好）设计，操作方便
3.支持各种移动设备
千兆以太网端口（可选）
5.高清视频，高清播放
nvr规格： | ||
系统 | 操作系统 | 嵌入式LINUX |
| 显示 | 显示模式 | 1/4屏幕 |
| 视频 | 视频输出 | HDMI：支持1920 x 1080，1280 x 720，1440 x 900，1280 x 1024，1024 x 768，800 x 600分辨率; VGA |
| 远程播放 | 1CH 1280 x 960实时 | |
| 录音能力 | 4CH 1280 x 960实时 | |
| 本地显示 | 最多同时播放4CH | |
| 记录与搜索earch | 记录模式 | 手动，报警，运动检测，进度 |
| 视频搜索 | 时间，日期，事件，频道搜索 | |
| 存储和备份ackup | 视频存储 | 本地硬盘，网络 |
| 备份模式 | 网络下载/ Flash USB /可移动HDD / SATA HDD / DVD-RW | |
| hdd端口 | 1个SATA端口（最高4TB） | |
| 软件 | 服务功能 | 支持P2P，OSD，双流，CMS软件，SDK |
| 移动监控 | 高达16CH的移动监控（iPhone，Windows Mobile，BlackBerry，Symbian，Android） | |
| 接口 | 视频输入 | 4个PoE网络端口（仅适用于捆绑套件IP CAM） |
| 视频输出 | 1ch vga，1ch hdmi | |
| 网络端口 | 1个RJ45 10M / 100M以太网端口 | |
| 云台控制 | rs485 x 1 | |
| USB端口 | 2 x usb2.0 | |
| 其他 | 功率 | 14v5a |
| 消费 | <15W (not including HDD)HDD) | |
| 温度 | 0°C〜55°C（32°F〜131°F），例如：f - 131°f）g;F)eg;F - 131°F) | |
| 湿度 | 10% - 90% | |
| 尺寸（长x宽x高） | 210 x 200 x 45mm（8.3'x 7.9“x 1.8”）（长x宽x高）;“）（长x宽x高）;xWxH); | |
| 重量 | 1.20kgs（2.65lb）（无硬盘） | |
包包括：
4ch poe mini nvr x 1
NVR电源适配器x 1
960P IP球机x 2
960P IP子弹相机x 2
60 ft./18.3M Cat5e电缆x 4
快速安装指南x 1
USB鼠标x 1
| Model NO. | EV-1304NK |
| Audio | with Audio |
| Hard Disk Size | 0~4t |
| Type | DSP Embedded Type |
| Interface Type | BNC/VGA/Hdim |
| Compressed Format | H.264 |
| Remote Control | with Remote Control |
| Aidio Output | 1 Channel |
| Transport Package | Paper Packaging |
| Origin | Shenzhen |
| Video Input/Output | 4 Channel |
| Video File Logging Mode | Alarm Recording, Motion Detection Recording, Video Manual, Time Lapse Video |
| Hdd Supported | 1 |
| Application | Commercial DVR |
| Operating System | Linux |
| Video Compression | H.264 |
| Audio Input/Output | 1 Channel |
| Trademark | Eyevison |
| Specification | 34*27*15 |
| HS Code | 8521909090 |
EV-1304NK IP NVR Systems , NVR Kits with 960P IP Dome / Bullet Camera
Quick Detail:
1. Local Display: Up to 4CH playback simultaneously
2. Record Mode: Manual, alarm, motion detection, schedule
3. Support P2P, OSD, dual stream, CMS software, SDK
4. 1 x RJ45 10M/100M Ethernet port
5. Support dual-stream
Description:
1. Support ONVIF, can be widely connected to many well-known
manufacturers of network cameras, network speed dome and network
video servers
2. Humanized (User-friendly) design, easy to operate
3. Support a variety of mobile devices
4. Gigabit Ethernet port (optional)
5. HD Video, HD playback
NVR SPECIFICATION: | ||
System | Operating System | Embedded LINUX |
| Display | Display Mode | 1/4 screen |
| Video | Video Output | HDMI: Support 1920 x 1080, 1280 x 720, 1440 x 900, 1280 x 1024, 1024 x 768, 800 x 600 resolutions; VGA |
| Remote Playback | 1CH 1280 x 960 real-time | |
| Recording Capability | 4CH 1280 x 960 real-time | |
| Local Display | Up to 4CH playback simultaneously | |
| Record & Searchearchearch | Record Mode | Manual, alarm, motion detection, schedule |
| Video Search | Time, date, event, channel search | |
| Storage & Backupackupackup | Video Storage | Local HDD, Network |
| Backup Mode | Network download / Flash USB / movable HDD/SATA HDD / DVD-RW | |
| HDD Port | 1 SATA ports (up to 4TB) | |
| Software | Service Functions | Support P2P, OSD, dual stream, CMS software, SDK |
| Mobile Monitor | Up to 16CH mobile monitoring (iPhone, Windows Mobile, BlackBerry, Symbian, Android) | |
| Interface | Video Input | 4 x PoE Network Port (with Bundle kit IP CAM only) |
| Video Output | 1CH VGA, 1CH HDMI | |
| Network Port | 1 x RJ45 10M/100M Ethernet port | |
| PTZ Control | RS485 x 1 | |
| USB Port | 2 x USB2.0 | |
| Other | Power | 14V5A |
| Consumption | <15W (not including HDD)HDD) | |
| Temperature | 0°C ~ 55°C (32°F - 131°F)eg;F - 131°F)g;F)eg;F - 131°F) | |
| Humidity | 10% - 90% | |
| Dimension (LxWxH) | 210 x200x45mm (8.3' x 7.9'x 1.8') (LxWxH);") (LxWxH);xWxH); | |
| Weight | 1.20kgs (2.65lb) (without HDD) | |
PACKAGE INCLUDE ITEM:
4CH PoE Mini NVR x 1
NVR Power Adapter x 1
960P IP Dome Camera x 2
960P IP Bullet Camera x 2
60 ft./18.3M Cat5e Cable x 4
Quick Installation Guide x 1
USB Mouse x 1
