High Compatibility HD Wireless NVR Recorder
高兼容性高清无线NVR录像机
| 型号。 | EV-CH04-h1404b |
| 音频 | 与音频 |
| 硬盘大小 | 4TB |
| 类型 | 准嵌入式 |
| 接口类型 | BNC / VGA / HDIM |
| 压缩格式 | H.264 |
| 音频输入/输出 | 4通道 |
| Aidio输出 | 4通道 |
| 规范 | 金属 |
| HS编码 | 8517623290 |
| 视频输入/输出 | 4通道 |
| 视频文件记录模式 | 报警录像，移动侦测录像，视频手册，时间延迟视频 |
| Hdd支持 | 1 |
| 应用 | 商用DVR |
| 操作系统 | Linux的 |
| 视频压缩 | H.264 |
| 遥控 | 带遥控器 |
| 商标 | eyevison |
| 起源 | 深圳中国 |
高兼容性高清无线NVR录像机红外遥控支持双流
快速详细：
P2P功能，互联网的关键
2.支持双流
3.支持WIFI连接
主处理器：硅芯3520d
5.性能：4CH实时
产品规格：
技术参数 | |
| 主处理器 | 硅胶3520d |
| 系统资源 | 实况录制，播放，备份，远程视图，移动监控 |
| 控制模式 | 前面板，USB鼠标，红外遥控器，网络 |
| 显示 | 支持：， |
| 视频 | 4ch输入，1ch电视输出，1ch vga输出，1 * hdmi（1080p） |
| 音频 | 4CH输入 |
| 报警 | 没有 |
| 记录 | 4 * 960P / 1080P实时 |
| 回放 | 4 * 960P或2 * 1080P实时 |
| 云台 | 没有 |
| HDMI | 是 |
| DVD选项 | 没有 |
| 硬盘容量 | SATA接口硬盘* 1 |
| 网络接口 | 1 * RJ45,100Mbps以太网 |
| 升级 | usb磁盘，网络 |
| 备用 | usb磁盘，网络 |
| 用户扩展 | 自己设计启动画面LOGO |
| 电源 | 12V / 2A |
| 工作环境 | -10°〜+ 55°/ 10〜90％RH / 86〜106Kpa86〜106Kpa86~106Kpa |
应用：
您可以将照相机用于室内和室外环境，例如：工厂，商务楼，办公室，学校，地铁，银行，船舶，街道。您可以从相机监控更多重要的空间，它将录制和播放与NVR的导入和视频。
| Model NO. | EV-CH04-H1404B |
| Audio | with Audio |
| Hard Disk Size | 4TB |
| Type | Quasi Embedded Type |
| Interface Type | BNC/VGA/Hdim |
| Compressed Format | H.264 |
| Audio Input/Output | 4 Channel |
| Aidio Output | 4 Channel |
| Specification | metal |
| HS Code | 8517623290 |
| Video Input/Output | 4 Channel |
| Video File Logging Mode | Alarm Recording, Motion Detection Recording, Video Manual, Time Lapse Video |
| Hdd Supported | 1 |
| Application | Commercial DVR |
| Operating System | Linux |
| Video Compression | H.264 |
| Remote Control | with Remote Control |
| Trademark | EYEVISON |
| Origin | Shenzhen China |

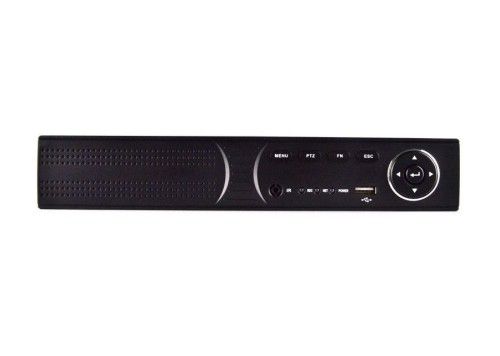

High Compatibility HD Wireless NVR Recorder IR Remote Control Support Dual-stream
Quick Detail:
1. P2P function, a key to the Internet
2. Support dual-stream
3. Support WIFI connection
4. Main Processor: HISILICON 3520D
5. Performance: 4CH real time
Specifications:
Technical Parameters | |
| Main Processor | HISILICON 3520D |
| System Resource | Live recording, Playback, Backup, Remote view, Mobile monitoring |
| Control Mode | Front panel, USB mouse, IR remote control, Network |
| Display | Support:, |
| Video | 4CH Input,1CH TV Output,1CH VGA Output , 1*HDMI(1080P) |
| Audio | 4CH Input |
| Alarm | NO |
| Recording | 4*960P/1080P real time |
| Play back | 4*960P or 2*1080P real time |
| PTZ | NO |
| HDMI | YES |
| DVD Option | NO |
| HDD Capacity | SATA Interface HDD*1 |
| Network Interface | 1*RJ45,100Mbps Ethernet |
| Upgrade | USB DISK, Network |
| Backup | USB DISK, Network |
| User Extend | Design boot screen LOGO by yourself |
| Power supply | 12V/2A |
| Working environment | -10°~+55°/10~90%RH/86~106Kpa86~106Kpa86~106Kpa |
Applications:
You can use the camera for indoor and outdoor environment, for example: Factory, Busienss building, Office, School,Metro, Bank, Ship, Street road. you can monitor more important space from the camera, it will recording and playback the importand video with NVR.
