超薄户外全彩LED显示屏
大视角
2.重量轻
3，CE＆ROHS证书cates
长寿命
超薄户外全彩LED显示屏
规范
零件号
英雄ids4f-8S
解析度
32（H）×16（V）S; 16（ⅴ）s;16(V)
像素间距
10毫米
LED配置
1r1g1b 3合1 smd
像素密度
10,000pixels / m2
模块尺寸
320 *160毫米
驱动IC
MBI5024
驾驶方法
1/4扫描，恒定电流
机柜重量
42公斤/平方米。
机械等级
悬挂重量支持
2T
表面平整度
间隙<0.5mm.5mm
光学等级
亮度
> 1,800cd / m2 / m2
视角
150°/ 150°/ 150°deg;/150°
灰度
8位输入，14位校正
显示颜色
16.7M
亮度调整
0~100%
电源
操作电源
90〜260v 50〜60hz
最大。能量消耗
600W / m2
平均功耗
200W / m2
控制系统
控制模式
DVI同步显示控制PC
帧更新频率
60〜85Hz的
屏幕刷新频率
300〜1000Hz的
伽玛校正
-5.0~+5.0
支持输入
复合，S视频，组件，VGA，DVI，HDMI，HD_SDI
控制距离
以太网电缆<120m or Fiber Optic<10Kmlt;10Km
支持VGA模式
1024×768,1280×1024,1600×1200,1920×1280mes; 1200,1920×1280s;1280mes;1200, 1920×1280
亮度校正
像素，模块，机柜
环境的
工作温度
-20°〜+ 60°〜+ 60°deg;~+60°
工作湿度
10〜95％rh
使用寿命
100000小时
MTBF
5000小时
失控率
<0.02%
保证
1.如果面积较大，我们通常要求客户或经销商派人到工厂学习，每周训练一次，主要学习屏幕操作，维护。公司培训和提供住宿是免费的。
2.如果面积超过20平方米的室外全彩，必须有所有配件。
2.在2小时内响应，24小时内非人为故障，一般故障解决，48小时内可以接受故障解决。
官方网站：http://www.led-hero.com

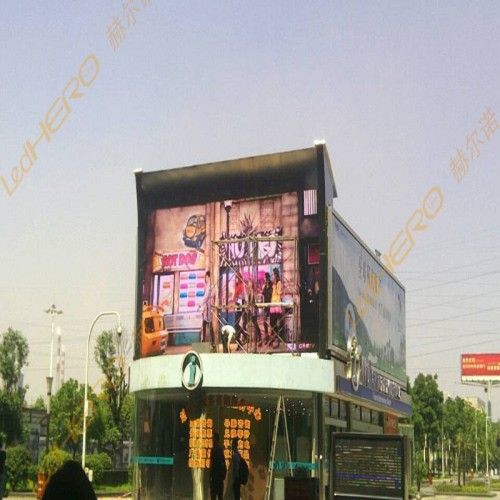

super slim outdoor full color led display for street
1. large viewing angle
2. Light weight
3, CE & ROHS Certificatescatescates
4.long lifespan
super slim outdoor full color led display for street
Specification
Part Number
HERO-IDS4F-8S
Resolution
32(H)×16(V)s;16(V)s;16(V)
Pixel Pitch
10mm
LED Configuration
1R1G1B 3-IN-1 SMD
Pixel Density
10,000pixels/ m2
Module Size
320*160mm
Driving IC
MBI5024
Driving Method
1/4 Scan, Constant Current
Cabinet Weight
42kg/sq.m.
Mechanical Ratings
Hanging Weight Support
2T
Surface Flatness
Gap<0.5mm.5mm
Optical Ratings
Brightness
﹥1,800cd/ m2/ m2
View Angle
150°/150°/150°deg;/150°
Gray Scale
8bits input, correction with 14bits
Display COLOR
16.7M
Brightness Adjustment
0~100%
Power Supply
Operation Power
90~260V 50~60Hz
Max. Power Consumption
600W/ m2
Average Power Consumption
200W/ m2
Control System
Control Mode
Synchronous display with control PC by DVI
Frame Update Frequency
60~85Hz
Screen Refresh Frequency
300~1000Hz
Gamma Correction
-5.0~+5.0
Support Input
Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance
Ethernet cable<120m or Fiber Optic<10Kmlt;10Km
Support VGA Mode
1024×768, 1280×1024, 1600×1200, 1920×1280mes;1200, 1920×1280s;1280mes;1200, 1920×1280
Brightness Correction
Pixel, Module, Cabinet
Environmental
Operating Temperature
-20°~+60°~+60°deg;~+60°
Operating Humidity
10~95% RH
Operating Life
100,000hours
MTBF
5000hours
Out of Control Rate
<0.02%
Warranty
1. If the area is larger, we usually require customers or dealers to send someone to come to factory to study, training time a week, the main study screen operation, maintenance. Company training and providing accommodation are free of charge.
2. If the area is in more than 20 square meters of outdoor full color, it must have all accessories.
3. Response within 2 hours, non-artificial, general fault solution within 24 hours, and acceptable failure resolved within 48 hours.
Official website: http://www.led-hero.com
