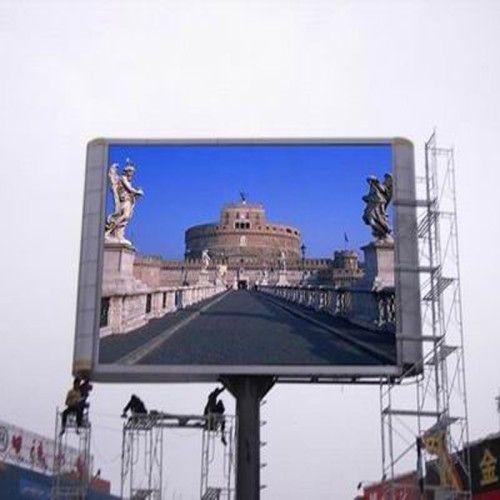

SMD P10户外视频led屏幕广告
大视角
2.重量轻
3，CE＆ROHS证书cates
长寿命
规范
零件号
英雄ids4f-8S
解析度
32（H）×16（V）S; 16（ⅴ）s;16(V)
像素间距
10毫米
LED配置
1r1g1b 3合1 smd
像素密度
10,000pixels / m2
模块尺寸
320 *160毫米
驱动IC
MBI5024
驾驶方法
1/4扫描，恒定电流
机柜重量
42公斤/平方米。
悬挂重量支持
2T
表面平整度
间隙<0.5mm.5mm
亮度
> 1,800cd / m2 / m2
视角
150°/ 150°/ 150°deg;/150°
灰度
8位输入，14位校正
显示颜色
16.7M
亮度调整
0~100%
操作电源
90〜260v 50〜60hz
最大。能量消耗
600W / m2
平均功耗
200W / m2
控制模式
DVI同步显示控制PC
帧更新频率
60〜85Hz的
屏幕刷新频率
300〜1000Hz的
伽玛校正
-5.0~+5.0
支持输入
复合，S视频，组件，VGA，DVI，HDMI，HD_SDI
控制距离
以太网电缆<120m or Fiber Optic<10Kmlt;10Km
支持VGA模式
1024×768,1280×1024,1600×1200,1920×1280mes; 1200,1920×1280s;1280mes;1200, 1920×1280
亮度校正
像素，模块，机柜
工作温度
-20°〜+ 60°〜+ 60°deg;~+60°
工作湿度
10〜95％rh
使用寿命
100000小时
MTBF
5000小时
失控率
<0.02%
包装运输
专业包装：环保纸箱，木箱或飞行箱。
包装方式可以防止LED屏幕在运输过程中的碰撞，如损坏等。
无故解决您在运输中的烦恼。
关于英雄
LED屏幕7年的经验，我厂具有加工，研发LED显示屏的能力，确保多样化。严格的质量控制流程，确保LED显示屏具有高品质。
售后服务
1）保修：
免费解决质量问题，确保设备在保修期内正常运行。在任何时候，我们承担所有的责任，当问题来自产品本身。
2）免费维护：
保修期内免费保修。
仅在保修期内收取原材料成本，提供最低价格的备件和维修服务。
3）快速反应：
2小时内响应，24小时内无人为故障，一般故障解决，48小时内可接受故障解决。
4）免费支持：
通过电话或网络实时提供服务支持，或借助网络进行远程调试支持（软件），解决问题。

SMD P10 outdoor video led screen for advertisng
1. large viewing angle
2. Light weight
3, CE & ROHS Certificatescatescates
4.long lifespan
Specification
Part Number
HERO-IDS4F-8S
Resolution
32(H)×16(V)s;16(V)s;16(V)
Pixel Pitch
10mm
LED Configuration
1R1G1B 3-IN-1 SMD
Pixel Density
10,000pixels/ m2
Module Size
320*160mm
Driving IC
MBI5024
Driving Method
1/4 Scan, Constant Current
Cabinet Weight
42kg/sq.m.
Hanging Weight Support
2T
Surface Flatness
Gap<0.5mm.5mm
Brightness
﹥1,800cd/ m2/ m2
View Angle
150°/150°/150°deg;/150°
Gray Scale
8bits input, correction with 14bits
Display COLOR
16.7M
Brightness Adjustment
0~100%
Operation Power
90~260V 50~60Hz
Max. Power Consumption
600W/ m2
Average Power Consumption
200W/ m2
Control Mode
Synchronous display with control PC by DVI
Frame Update Frequency
60~85Hz
Screen Refresh Frequency
300~1000Hz
Gamma Correction
-5.0~+5.0
Support Input
Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance
Ethernet cable<120m or Fiber Optic<10Kmlt;10Km
Support VGA Mode
1024×768, 1280×1024, 1600×1200, 1920×1280mes;1200, 1920×1280s;1280mes;1200, 1920×1280
Brightness Correction
Pixel, Module, Cabinet
Operating Temperature
-20°~+60°~+60°deg;~+60°
Operating Humidity
10~95% RH
Operating Life
100,000hours
MTBF
5000hours
Out of Control Rate
<0.02%
Packing and transportation
Professional packaging:environmental carton, wooden box or flight case.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Faultlessly solve your worries in the transportation.
About Hero
7-year's experience in LED screen, our factory has the ability of processing, researching and developing led display to ensure the prolificacy.A strict quality control process to make sure the led display screens is with high quality.
After-sale service
1) Warranty:
Free to solve the quality problems to ensure that equipment normal operation in the warranty period . At any time, we bear all the responsibility, when the problem is from the product itself.
2) Free maintenance:
Free warranty in the warranty period.
Only charge the cost of raw materials, provide spare parts and maintenance services for the lowest price after the warranty period.
3)quick response:
Response within 2 hours, non-artificial, general fault solution within 24 hours, and acceptable failure resolved within 48 hours.
4) Free support:
Through telephone or network to provide service support in real time, or with the help of a network for remote debugging support (software), to solve the problem.
