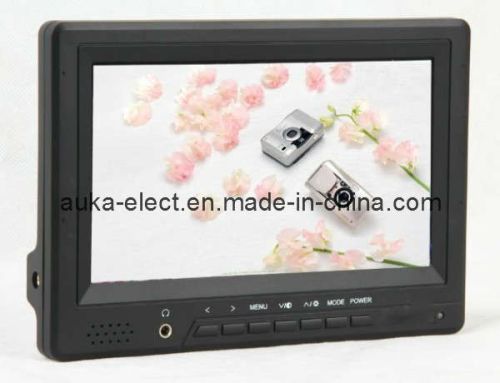

7 Inch LCD Monitor Connect with Full HD Video Camera
7英寸液晶显示器连接全高清摄像机
议价
加入意向| 型号。 | al678-I |
| 兼容品牌 | 所有 |
| 相机镜头罩类型 | 广场 |
| 三脚架材质 | 铝 |
| 解析度 | 800X480 |
| 亮度 | 了400cd / m 2的 |
| 规范 | ce，fcc，rohs |
| 类型 | 相机液晶屏 |
| 三脚架类型 | 专业三脚架 |
| 三脚架使用 | 数码相机 |
| 显示模式 | 16:9 |
| 逆光 | LED |
| 对比度 | 500:1 |
| 起源 | 中国 |
Arial'line-height：11.25px; font-family：Arial，Helvetica，sans-serif; padding：0px 10px;'>
Arial'line-height：11.25px; overflow：auto; font-family：Arial，Helvetica，sans-serif;'> 这款数码单反相机和便携式摄像机的相机显示器可以清晰准确地显示正在录制的图像，而无需查看相机的微型内置摄像头
超级明亮的1080P高清数码单反相机7寸显示器
防眩光屏幕即使在阳光下也能奏效
增强型400 cd / m2背光和500：1色彩对比度
宽视角：水平120度，垂直140度
HDMI和YPbPr视频输入
这款7英寸高清显示器专门设计用作外部视频显示屏，而无需查看内置取景器的相机。
采用先进的集成电路和高品质的TFT LCD
模块，功耗低，功能稳定，辐射低。具有体积小，操作方便，安全 .
HDMI输入，HDMI输出（可选），分量，复合视频，音频输入，可轻松安装在数码相机数码单反相机或HDV上，是摄影的最佳搭档。
超级明亮的1080P高清数码单反相机7寸显示器
防眩光屏幕即使在阳光下也能奏效
增强型400 cd / m2背光和500：1色彩对比度
宽视角：水平120度，垂直140度
HDMI和YPbPr视频输入
这款7英寸高清显示器专门设计用作外部视频显示屏，而无需查看内置取景器的相机。
采用先进的集成电路和高品质的TFT LCD
模块，功耗低，功能稳定，辐射低。具有体积小，操作方便，安全 .
HDMI输入，HDMI输出（可选），分量，复合视频，音频输入，可轻松安装在数码相机数码单反相机或HDV上，是摄影的最佳搭档。
| 规范 | 高级功能 | ||
| 描述： | 7“摄像头高清监视器 | 焦点焦点辅助 | |
| 模型： | al678-hd / o（al678-hd：w / o hdmi输出） | *相机5D II模式 | |
| 解析度 | 800x480像素（高达1920×1440）s; 1440）s;1440) | *检查字段： | |
| 亮度 | 为400cd /m²²sup2;² | *全屏显示在监控记录模式下rding | |
| 对比： | 500:1 | *屏幕标记： | |
| 长宽比： | 16:9 | *中心标记 | |
| 背光： | LED | * 4：3＆16：9图像可调table | |
| HDMI支持模式： | 1080 / 50I / 60I / 50P / 60P; 720 / 50p，720 / 60p; 480i，480p，576i，576p | *前置耳机插孔 | |
| 输入： | HDMI;视频; YPbPr;音频 | *图像冻结和翻转（U / D，L / R），L / R）,L/R) | |
| 输出： | HDMI;视频; 3.5mm音频;内置扬声器 | ||
| 可视角度： | 70°/ 70°（l / r）50°/ 70°（u / d）deg / 70°（u / d）U/D)deg;/70°(U/D) | ||
| 能量消耗： | ≤8we;8瓦特e;8W | ||
| 输入电压： | 直流6〜14v | ||
| 安装方式： | 1 / 4'-20螺纹插座（3侧左右底部）底部）t&bottom) | ||
| 工作温度： | -20〜55ºCordm; C ^ordm;C | ||
| 商店温度： | -30〜65ºCordm; C ^ordm;C | ||
| 单位面积： | 188.4L×130.9W×37.2H（mm）imes; 37.2H（mm）mes;37.2H(mm) | ||
| 单位重量： | 450g | ||
| 标准配件 | 可选附件 | 包装细节 | |
| 迷你HDMI电缆 | XLR电源适配器 | 箱尺寸 | 24.6x24.4x8.7CM |
| 操作手册 | 每盒G.W. | 3公斤 | |
| 布遮阳 | 每纸箱 | 10件 | |
| 热鞋安装 | 纸箱尺寸 | 50x44.5x27.4CM | |
| DC12V电源适配器 | N.W. | 14KGS /箱 | |
| G.W. | 16kgs /箱 | ||
| Model NO. | AL678-I |
| Compatible Brand | All |
| Camera Lens Hood Type | Square |
| Tripods Material | Aluminum |
| Resolution | 800X480 |
| Brightness | 400CD/M2 |
| Specification | CE, FCC, RoHs |
| Type | Camera LCD Screen |
| Tripods Type | Professional Tripod |
| Tripods Use | Digital Camera |
| Display Mode | 16:9 |
| Backlight | LED |
| Contrast Ratio | 500:1 |
| Origin | China |
Arial'line-height:11.25px;font-family:Arial, Helvetica, sans-serif;padding:0px 10px;'﹥
Arial'line-height:11.25px;overflow:auto;font-family:Arial, Helvetica, sans-serif;'﹥ This on-camera monitor for DSLR cameras and camcorders provides a clear and accurate image of what's being recorded without having to look through your camera's tiny built-in camera
Super bright 1080P HD DSLR 7 inch monitor
Anti-glare screen works great even under sun light
The enhanced 400 cd/m2 backlight and a 500:1 color contrast ratio
Wide viewing angle: viewable 120 degrees horizontally and 140 degrees vertically
HDMI and YPbPr video inputs
This 7' Pro HD Monitor is designed specially to be used as an external video display,without having to look through the cameras built-in viewfinder.inder.
It employs advanced integrate circuits and high quality TFT LCD
modules, low comsumption, steady function, and low radiation emission. With small-sized, easily operated and safety .
HDMI Input,HDMI Output (Optional), Component, Composite Video, Audio Input, can be easily be installed on Digital Camera DSLR or HDV, the best partner for photography.
Super bright 1080P HD DSLR 7 inch monitor
Anti-glare screen works great even under sun light
The enhanced 400 cd/m2 backlight and a 500:1 color contrast ratio
Wide viewing angle: viewable 120 degrees horizontally and 140 degrees vertically
HDMI and YPbPr video inputs
This 7' Pro HD Monitor is designed specially to be used as an external video display,without having to look through the cameras built-in viewfinder.inder.
It employs advanced integrate circuits and high quality TFT LCD
modules, low comsumption, steady function, and low radiation emission. With small-sized, easily operated and safety .
HDMI Input,HDMI Output (Optional), Component, Composite Video, Audio Input, can be easily be installed on Digital Camera DSLR or HDV, the best partner for photography.
| Specification | Advanced Features | ||
| Description: | 7' On-Camera Field HD Monitoronitor | *Peaking Focus Assist | |
| Model: | AL678-HD/O (AL678-HD: W/O HDMI output) | *Camera 5D II Mode | |
| Resolution | 800x480 pixels (up to1920×1440)s;1440)s;1440) | *Check Field: | |
| Brightness | 400cd/m²²sup2;² | *Full Screen Display in mode of Monitoring & Recordingrdingrding | |
| Contrast: | 500:1 | *Screen Marker: | |
| Aspect Ratio: | 16:9 | *Centre Marker | |
| Backlight: | LED | *4:3&16:9 image adjustabletabletable | |
| HDMI Support Mode: | 1080/50i/60i/50p/60p; 720/50p, 720/60p; 480i ,480p, 576i 576p | *Front Earphone Jack | |
| Inputs: | HDMI;Video ;YPbPr;Audio | *Image Freeze&Flip(U/D,L/R),L/R),L/R) | |
| Outputs: | HDMI;Video ;3.5mm Audio; Built-in Speaker | ||
| Viewing Angle: | 70°/70°(L/R) 50°/70°(U/D)deg;/70°(U/D)U/D)deg;/70°(U/D) | ||
| Power Consumption: | ≤8We;8We;8W | ||
| Input Voltage: | DC 6~14V | ||
| Install Way: | 1/4'-20 Thread Socket(3 side right&left&bottom)ft&bottom)t&bottom) | ||
| Work Temperature: | -20~55ºCordm;Cordm;C | ||
| Store Temperature: | -30~65ºCordm;Cordm;C | ||
| Unit Size: | 188.4L × 130.9W ×37.2H(mm)imes;37.2H(mm)mes;37.2H(mm) | ||
| Unit Weight: | 450g | ||
| Standard Accessory | Optional Accessory | Packing Details | |
| Mini HDMI Cable | XLR Power Adapter | Box size | 24.6x24.4x8.7CM |
| Operation Manual | Per box G.W. | 3kgs | |
| Cloth Sunshade | Per Carton | 10pcs | |
| Hot Shoe Mount | Carton Size | 50x44.5x27.4CM | |
| DC12V Power Adapter | N.W. | 14kgs/carton | |
| G.W. | 16kgs/carton | ||
