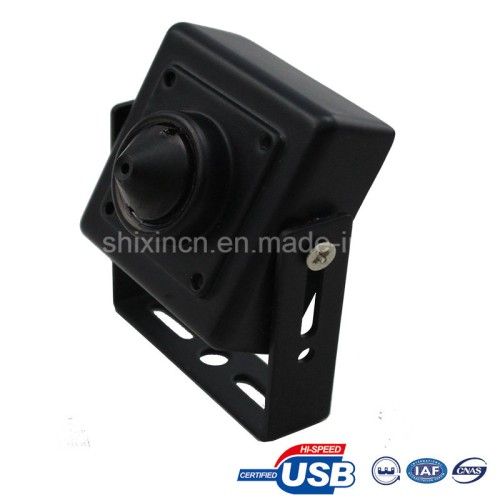

Mini USB Camera with Lens for ATM/Kiosk Security with CE/FCC/RoHS
迷你USB相机与镜头的ATM / Kiosk安全与CE / FCC / RoHS
议价
加入意向| 型号。 | SX-608 |
| 传感器 | 1/4厘米 |
| 接口 | USB2.0 / 480MB / s的 |
| 图片 | 0.3megapixel |
| 商标 | 石新或OEM或ODM |
| 起源 | 中国深圳 |
| 迷你尺寸 | 36 *36毫米 |
| 镜片 | 3.7毫米（选项） |
| 解析度 | 640*480 |
| 型号 | SX-608 |
| 规范 | 标准包装盒 |
| HS编码 | 8529904100 |
带USB / Kiosk安全镜头的迷你USB相机，带CE / FCC / RoHS
迷你相机带USB2.0接口，USB相机，WDR相机用于ATM，Kiosk ...这款USB相机不需要驱动，即插即用，默认分辨率为640 * 480，支持标准的UVC协议。
规范：
如有任何问题，请随时与我们联系。我们会尽力与您合作。
迷你相机带USB2.0接口，USB相机，WDR相机用于ATM，Kiosk ...这款USB相机不需要驱动，即插即用，默认分辨率为640 * 480，支持标准的UVC协议。
规范：
| 模型 | SX-608wh |
| 图像传感器 | 1/4英寸CMOS传感器，颜色 |
| 有效像素 | 640（h）x480（v） |
| 解析度 | 640x480,352x288,320x240,160x120,156x144 |
| 最大帧速率 | 30fps的 |
| 最低照度 | 0.01LUX |
| 司机 | 支持UVC |
| 镜片 | 主板镜头：标准2.8mm（3.7mm / 3.6mm/2.8mm/2.1mm镜头可选） |
| 镜头：3.7mm / 2.8mm可选 | |
| 尺寸 | 32×32mmes;32毫米es;32mm |
| 扫描系统 | 逐行扫描 |
| 曝光 | 汽车 |
| 白平衡 | 汽车 |
| 亮度 | 手动调整 |
| 对比 | 手动调整 |
| 饱和 | 手动调整 |
| 锐度 | 手动调整 |
| 伽玛 | 手动调整 |
| 接口 | usb2.0高速 |
| 电源输入 | dc5v（usb电源） |
| 能量消耗 | <140mA40mA |
| USB电缆 | 1.5米（标准）;其他长度可根据实际要求提供 |
| 工作温度 | -10ºC〜+70ºC（湿度：0％rh〜85％rh）h〜85％rh）H ~ 85% RH) |
| 储存温度 | -20ºC〜120ºC（湿度：0％rh〜85％rh）h〜85％rh）H ~ 85% RH) |
| MTBF | 13万小时 |
| CE，ROHS | 是 |
如有任何问题，请随时与我们联系。我们会尽力与您合作。
| Model NO. | SX-608 |
| Sensor | 1/4 CMOS |
| Interface | USB2.0/480MB/S |
| Image | 0.3megapixel |
| Trademark | Shixin or OEM or ODM |
| Origin | Shenzhen, China |
| Mini Size | 36*36mm |
| Lens | 3.7mm(Option) |
| Resolution | 640*480 |
| Model Number | Sx-608 |
| Specification | Standard Package Box |
| HS Code | 8529904100 |
Mini USB Camera with Lens for ATM/Kiosk Security with CE/FCC/RoHS
Mini Camera with USB2.0 interface, USB Camera, WDR Camera for ATM, Kiosk... This USB camera no need driver, it's plug and play, default resolution is 640*480, support standard UVC protocol.
Specification:
If there is any question, please don't hesitate to contact us. We wll try our best to cooperate with you.
Mini Camera with USB2.0 interface, USB Camera, WDR Camera for ATM, Kiosk... This USB camera no need driver, it's plug and play, default resolution is 640*480, support standard UVC protocol.
Specification:
| Model | SX-608WH |
| Image sensor | 1/4 inch CMOS Sensor,color |
| Effective Pixels | 640(H) X480(V) |
| Resolution | 640x480,352x288, 320x240, 160x120 ,156x144 |
| Maximum Frame Rates | 30fps |
| Minimum Illumination | 0.01Lux |
| Driver | Support UVC |
| Lens | Board lens: standard 2.8mm (3.7mm /3.6mm/2.8mm/2.1mm lens optional) |
| lens:3.7mm/2.8mm optional | |
| Dimension | 32×32mmes;32mmes;32mm |
| Scanning System | Progressive scan |
| Exposure | Auto |
| White balance | Auto |
| Brightness | manual adjustment |
| Contrast | manual adjustment |
| Saturation | manual adjustment |
| Sharpness | manual adjustment |
| Gamma | manual adjustment |
| Interface | USB2.0 HIGH SPEED |
| Power Input | DC5V(USB power) |
| Power Consumption | <140mA40mA |
| USB Cable | 1.5m(standard);other length available as per actual request |
| Operating Temperature | -10ºC~+70ºC(Humidity : 0% RH ~ 85% RH)H ~ 85% RH)H ~ 85% RH) |
| Storage Temperature | -20ºC~120ºC (Humidity : 0% RH ~ 85% RH)H ~ 85% RH)H ~ 85% RH) |
| MTBF | 130 thousand hours |
| CE,ROHS | YES |
If there is any question, please don't hesitate to contact us. We wll try our best to cooperate with you.
