Outdoor Advertising Mobile Truck LED Screen with Hight Quality Products
户外广告移动卡车LED屏幕与高质量产品
户外广告移动卡车led屏幕与高质量的产品
规格
1广告卡车led显示的稳定能力
2S超亮防水防震led显示屏
3Good售后为Elnor移动卡车led显示屏
4True色彩再现为移动广告卡车led显示
5车辆/拖车LED显示屏的系统可靠性
6使用寿命长，工作稳定
7CE，RoHS，ISO9001认证
8.9年的经验
9单元柜，易于组装，快速设置
A）17.2平方米的移动广告卡车led显示屏。 3.84m x 2.24m x2pcs。
B）移动货车的两侧都是全彩LED显示屏。
C）防水柜尺寸为960mm x1120mm，每个重量58kg / pcs。
主要特点
定制设计
2真实的色彩再现和真实的视频质量
3系统可靠性
4快速设置，便于维修和完全控制
优点
高亮度和可调节内置功能卡支持亮度自动调节。
2A交钥匙解决方案，包括专业运动软件和硬件。
3Rich广告LED显示工程经验在国内和海外市场。
4通过严格的质量控制体系确保产品的稳定性。
我们的服务
1我们的产品或价格相关的查询将在24小时内回复
2保护您的销售区域，设计的想法和所有您的私人信息
3Top质量+合理的价格+负责任的售后服务=成功＆赢
贸易条款
1.付款：T / T，生产前30％的存款，70％的余额在交货前支付
运输费用根据您的要求报价
3.货运港口：深圳，中国大陆
moq：1pc
LED模块参数
| 尺寸（宽x高） | 160mm x 160mm | 分辨率（w x h） | 16 x 16 |
| 像素间距（mm） | 10 | 像素密度 | 10,000/ |
| 亮度 | 6000尼特/ m2 | 扫描模式 | 1/4扫描 |
| 最小视距 | 10米 | 最大观看距离 | 根据屏幕面积 |
| 像素配置 | 1r，1g，1b | 重量 | 0.55kg |
| 平均功率/ | 300瓦 | 最大功率/ | 750瓦 |
LED显示参数
Elnor户外移动/卡车全彩LED显示屏/广告牌 | |||||
模块 | 间距/ mm | P10 | P16 | P20 | P25 |
模块尺寸/ mm | 160x160 | 128x256 | 320x160 | 200x200 | |
像素密度/（点/ m2） | 10,000 | 3,906 | 2,500 | 1,600 | |
像素组成 | 1r1g1b | 1r1g1b | 1r1g1b | 1r1g1b | |
Led封装 | 蘸 | 蘸 | 蘸 | 蘸 | |
模块的分辨率 | 16X16 | 32X16 | 32X16 | 8X8 | |
主要 | 最佳观看距离 | ≥10 | ≥15 | ≥17 | ≥23 |
视角/° | 110小时，60小时 | 110小时，60小时 | 110小时，60小时 | 110小时，60小时 | |
平均功耗/ W / M2 | 300 | 300 | 350 | 400 | |
最大功耗/ W / M2 | 750 | 600 | 850 | 650 | |
机柜尺寸/ mm | 960X960 | 1024X768 | 1280X960 | 1000x1000 | |
机柜分辨率 | 96X96 | 64x48 | 64X48 | 40X40 | |
机柜重量/ kg | 58 | 60 | 65 | 80 | |
驱动方法 | 1/4扫描恒流 | 静态恒流 | 静态恒流 | 静态恒流 | |
帧频/ Hz / S | ≥60 | ≥60 | ≥60 | ≥60 | |
刷新率Hz / S | ≥600 | ≥600 | ≥600 | ≥600 | |
白平衡亮度 | ≥7000尼特 | ≥6500尼特 | ≥6,000尼特 | ≥5500尼特 | |
环境温度操作/°C | 低于30至高于50 | ||||
IP等级 | ip65 | ||||
工作压力 | 110-220 vac / + / - 10％ | ||||
灰度/颜色 | 显示颜色≥16.7M（同步） | ||||
亮度调整 | 每种颜色256个级别（手动），每种颜色100个级别（自动） | ||||
输入信号 | RF，S-Video，RGB，RGBH，YUV，YC和合成等 | ||||
控制系统 | linsn（发送卡，接收卡和集线器） | ||||
无故障寿命的平均值 | > 50,00h | ||||
寿命 | > 100,000h | ||||
功能点率 | <0.0001 | ||||
售后服务：
1.终身免费维护和升级。
2.投诉回复期不超过24小时;维护指导和问题解决方案在48小时内提供。
3.客户满意度跟踪报告。
4.免费技术人员培训。
5.全套文件免费，其中包括安装指南，软件操作手册，易维护手册和控制系统软件光盘等。
6.大型项目特色服务，如体育场馆，展览会，广场等。
我们制造的led广告卡可以是单面led屏幕，双面led屏幕，三面led屏幕。请在询问价格之前告诉我你的要求。我们将根据您的要求定制卡车！
outdoor advertising mobile truck led screen with hight quality products
Specifications
1Stable capability for advertising truck led display
2Super brightness waterproof shockproof led display
3Good after-sales for Elnor mobile truck led display
4True color reproduction for mobile advertising truck led display
5Ultimate system reliability for vehicle/ trailer led display
6Long life span and stable work
7CE, RoHS, ISO9001 certification
8.9 years experience
9Simple cabinet, easy to assemble, fast-set up

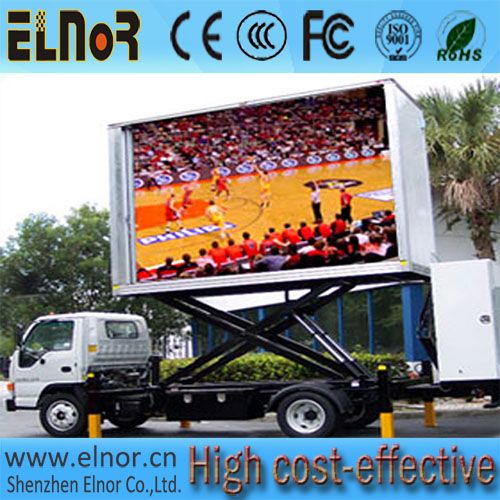

A) 17.2 sqm mobile advertising truck led display. 3.84m x 2.24m x2pcs.
B) Both side of the mobile truck are full color led displays.
C) The size of the waterproof cabinet is 960mm x1120mm, each weight 58kg/pcs.
Main features
1Customized design
2True color reproduction & authentic video quality
3Ultimate system reliability
4Fast set-up, easy service and full control
Advantages
1High brightness and be adjustableBuilt-in functional card support brightness automatically adjustment.
2A turn-key solution including professional sports software and hardware.
3Rich advertising LED display engineering experience both in domestic and oversea market.
4Unbeatable product stability through strict quality control system.
Our service
1Your inquiry related to our products or price will be replied in 24hrs
2Protection of your sales area,ideas of design and all your private information
3Top quality+reasonable price+responsible after service=successful & win
Trade terms
1. Payment:T/T,30% deposits before production,70% balance to be paid before dleiverying
2. Shipping freight are quoted under your requests
3. Shipping port:Shenzhen,mainland China
4. MOQ:1PC
LED module parameter
| Dimensions (w x h) | 160mm x 160mm | Resolution (w x h) | 16 x 16 |
| Pixel Pitch (mm) | 10 | Pixel Density | 10,000/ |
| Brightness | 6000 nits/m2 | Scan mode | 1/4 scan |
| Min Viewing distance | 10 meters | Max Viewing distance | According to screen area |
| Pixel Configuration | 1R, 1G, 1B | Weight | 0.55 kg |
| Average Power/ | 300 watts | Max Power/ | 750 watts |
LED display parameter
Elnor Outdoor Mobile/Truck Full Color LED Display/Billboard | |||||
Module | Pitch/mm | P10 | P16 | P20 | P25 |
Module size/mm | 160x160 | 128x256 | 320x160 | 200x200 | |
Density of pixel/(dots/m2) | 10,000 | 3,906 | 2,500 | 1,600 | |
Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | |
Led encapsulation | DIP | DIP | DIP | DIP | |
Resolution of module | 16X16 | 32X16 | 32X16 | 8X8 | |
Main | Optimum viewing distance | ≥10 | ≥15 | ≥17 | ≥23 |
View angle / ° | 110 H,60 V | 110 H,60 V | 110 H,60 V | 110 H,60 V | |
Average power consumption/W/M2 | 300 | 300 | 350 | 400 | |
Max power consumption/W/M2 | 750 | 600 | 850 | 650 | |
Size of cabinet/mm | 960X960 | 1024X768 | 1280X960 | 1000x1000 | |
Resolution of cabinet | 96X96 | 64x48 | 64X48 | 40X40 | |
Weight of cabinet/kg | 58 | 60 | 65 | 80 | |
Driving method | 1/4 scan constant current | Static constant current | Static constant current | Static constant current | |
Frame frequency / Hz/S | ≥60 | ≥60 | ≥60 | ≥60 | |
Refresh rate Hz/S | ≥600 | ≥600 | ≥600 | ≥600 | |
Luminance of white balance | ≥7000 nits | ≥6500 nits | ≥6000 nits | ≥5500 nits | |
Operation of Environmental Temperature/°C | below 30 to above 50 | ||||
IP rating | IP65 | ||||
Working vlotage | 110-220 VAC/+/- 10% | ||||
Grey scale/color | displaying colors≥16.7M(synchronized) | ||||
Brightness adjustment | 256 levels of each color(manually),100 levels of each color(automatically) | ||||
Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc | ||||
Control system | linsn(sending card,receiving cards and Hubs) | ||||
Average of non-failure life | ﹥50,00h | ||||
Life span | ﹥100,000h | ||||
Functionaless dot rate | ﹤0.0001 | ||||
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
The led advertising trucks we manufacture can be with one side led screen, two side led screens, three side led screens. Please tell me your requirement before asking the price. We will customize the trucks according to your requirement!
