基于PC的3D笔记本电脑/笔记本超声机主要特点和功能
灰度256
时间增益增益：0〜100dB可调;时间增益补偿（TGC）
存储功能图像存储，电影循环存储，大容量存储
容量≥10G。测量结果存储，报表存储rage
电路回路64,128,256,512,1024帧;自动/手动电影循环
显示模式：B模式，B / B模式，B / M模式，M模式，4B模式
扫描模式：电凸，电线，电微凸
显示深度240mm
探头连接器：1
输出端口usb，dicom，vga
患者信息
医院名称患者姓名案件编号;患者年龄性别;
聚焦模式1-4可选焦点，多重组合方式，对焦位置移动
实时，缩放，局部缩放
多级显示速度（深度提升）功能，滚动线功能
注释功能：图像区域的注释，患者信息的注释
中文 - 英文转换中文 - 英文转换操作界面
身体标记140光标轨迹球和键盘的组合
彩色显示30色显示功能DC-AC AC
直接报告显示，存储和打印报告。
可变角扫描16种角度扫描包括：25％，30％，35％，100
图像处理预处理，后处理，动态范围，帧对角线，线
Corrletion，边缘安置，黑白转换，左/右转换，
上/下转换，对比度，亮度，伽马校正
动态范围可连续调节：30〜120dB
测量和计算
B模式：距离，环境，面积，体积，角度，直方图，髋关节角度
M模式：心率，时间，斜率
腹部：子宫，子宫颈，子宫内膜，卵巢，卵泡，囊肿，封闭质量
产科：14（ac，bpd，crl，fl，thd，gs，ofd，humerus，tidia，
ULNA，HC，TAD，APTD，FTA）测量妊娠年龄，胎儿体重，AFI
心脏病学：LV。 LV功能，LVPW，RVAWT，主动脉，二尖瓣
泌尿科：L / R肾体积，膀胱体积，前列腺体积
小器官：眼科。甲状腺残留尿量
选择我们的原因
制造商：中国的真正的制造商，直接从我们工厂提供。
- 您的专业供应商：自1998年以来一直在超声波开发和制造领域。
- 价格稳定，性能稳定：我们致力于超声波成像系统的生产和研发。stem.

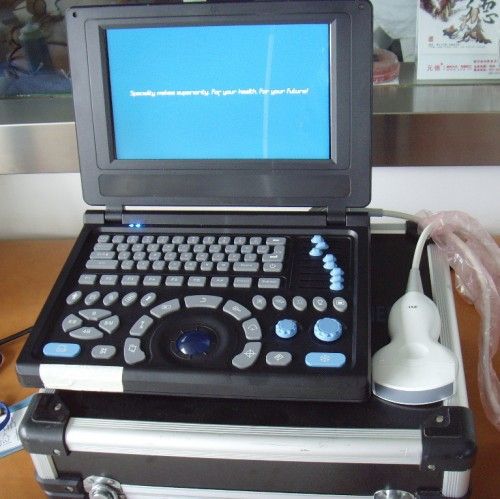

PC based 3D laptop / notebook ultrasound machine Main Features and Functions
Gray scale 256
Time gain Gain: 0~100dB adjustable; Time gain conpensation(TGC)
Storage function image storage, cine loop storage, mass storage
Capacity≥ 10G. Measurement result storage, report storageragerage
Cine-loop 64, 128, 256, 512, 1024 frame; Auto/manual cine loop
Displaying mode: B mode, B/B mode, B/M mode, M mode, 4B mode
Scanning mode: Electric convex, Electric linear, Electric micro-convex
Displaying depth 240mm
Probe connector: 1
Output port USB, DICOM, VGA
Patient information
Hospital name; Patient name; Case number; Patient age; Gender;
Focusing mode 1-4 selectable focus, multiple combination way, focus position moving
Real-time, zoom, local zoom
Multi-stage display rate(depth ascension)function, roll line function
Annotation function: Annotation at the image area, Annotation of patient information
Chinese-English conversion Chinese-English conversion on the operation interface
Body mark 140 Cursor The combination of Trackball and keyboard
Color display 30color display function DC-AC AC
Report Display, storage and print report directly.
Variable angle scanning 16kinds of angle scanning include: 25%, 30%, 35%, 100
Image processing Pre-processing, post-processing, dynamic range, frame corrletion, line
Corrletion, edge enhacement, black/white conversion, left/right conversion,
Up/down conversion, contrast, brightness, gamma correction
Dynamic range Continuously adjustable: 30~120dB
Measurement and calculation
B mode: Distance, circumstance, area, volume, angle, histogram, hip joint angle
M mode: Heart rate, time, slope
Abdomen: Uterus, cervix, endometrium, ovary, ovarian follicle, cyst, enclosed mass
Obstetric: 14(AC, BPD, CRL, FL, THD, GS, OFD, HUMERUS, TIDIA,
ULNA, HC, TAD, APTD, FTA)measure gestation age, fetal weight, AFI
Cardiology: LV. LV function, LVPW, RVAWT, aorta, mitral valve
Urology: L/R kidney volume, bladder volume, prostate volume
Small organs: Ophthalmonogy. Thyroid, residual urine volume
Reasons for choosing us
-Manufacturer: Real manufactuer in China, get supplied from our factory directly.
-Your professional supplier: Been in the field of ultrasound develope and manufacturing since 1998.
-Compective price and stable performance: We're dedicated to the production and r&s of ultrasonic imaging system.ystem.stem.
